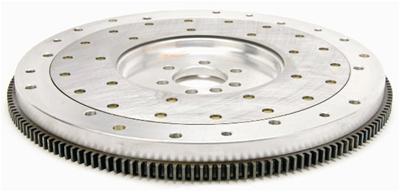

McLeod Aluminum Flywheels

Mcleod Aluminum Flywheels Are Ideal For Numerous Applications Such As Supercharged Or Turbocharged Engines. These Flywheels Are Ideal For Higher Horsepower Engines And Combinations That Achieve Rapid Rpm Levels. Mcleod Aluminum Flywheels Are Cnc Machined From 6061 T6 Aluminum And Come With A Replaceable Steel Friction Plate And 1045 Steel Hardened Ring Gear.

• • Billet Aluminum 6060-T6. • 1045 Steel Hardened Ring Gear. • SFI rated.

Vehicle Specific

• Ford: Custom 69 - 72 7 L Engine, Ford: Custom 72 - 72 7.5 L Engine, Ford: Custom 500 73 - 73 7 L Engine, Ford: Custom 500 73 - 73 7.5 L Engine, Ford: E-100 Econoline 78 - 78 7.5 L Engine
• Ford: E-250 Econoline 75 - 80 7.5 L Engine, Ford: E-250 Econoline Club Wagon 75 - 84 7.5 L Engine, Ford: E-350 Econoline 75 - 89 7.5 L Engine, Ford: E-350 Econoline Club Wagon 77 - 84 7.5 L Engine
• Ford: F-100 73 - 74 7.5 L Engine, Ford: F-150 75 - 78 7.5 L Engine, Ford: F-250 73 - 96 7.5 L Engine, Ford: F-250 HD 97 - 97 7.5 L Engine, Ford: F-350 73 - 97 7.5 L Engine
• Ford: F-53 Motorhome Chassis 88 - 97 7.5 L Engine, Ford: F-Super Duty 88 - 96 7.5 L Engine, Ford: Falcon 70 - 70 7 L Engine, Ford: Galaxie 500 69 - 73 7 L Engine, Ford: Galaxie 500 72 - 73 7.5 L Engine
• Ford: LTD 69 - 73 7 L Engine, Ford: LTD 72 - 73 7.5 L Engine, Ford: Mustang 69 - 71 7 L Engine, Ford: Ranchero 70 - 71 7 L Engine, Ford: Ranchero 75 - 77 7.5 L Engine
• Ford: Torino 70 - 73 7 L Engine, Ford: Torino 73 - 74 7.5 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753012197
• Counter Weight Kit Included: Yes
• Crankshaft to Flywheel Bolt Quantity: 6-bolt
• Disc Diameter (in.): 11.000/11.500/12.000 in.
• Engine Balance: Internal/External
• Flywheel Material: Billet aluminum
• Make: Ford
• Marine Use: No
• Notes: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft fit may have variations from slip-fit to slight interference. Tight fit at the crankshaft can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.
• Pressure Plate Style: Borg & Beck/Diaphragm/Long
• Quantity: Sold individually.
• Replaceable Friction Surface: Yes
• Ring Gear Tooth Quantity: 176-tooth
• SFI 1.1 Approved: Yes
• Weight: 15.000 lbs.

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14.5 x 14.5 x 2 inches
• Weight: 15 POUNDS
