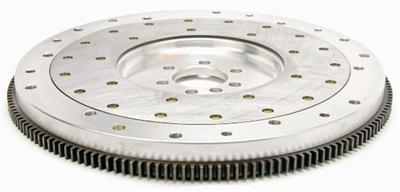

McLeod Aluminum Flywheels

Mcleod Steel Flywheels Are Perfect For Street Applications Where Easy Stop Light Acceleration Is Desired. They Are Also Recommended For Rock Crawlers And Off Road Driving. Our Steel Flywheels Are Cnc Machined From Billet Alloy Steel. They Have 1045 Hardened Steel Ring Gears.

• • Billet Aluminum 6060-T6. • 1045 Steel Hardened Ring Gear. • SFI rated.

Vehicle Specific

• Retro Fit Applications Only

Attributes:

• Brand Name: McLeod
• GTIN: 00887753317001
• Crankshaft to Flywheel Bolt Quantity: 8-bolt
• Disc Diameter (in.): 11.000/12.000 in.
• Engine: LS-X 376, LS-X 454 Crate Engine 8 Bolt Crank
• Engine Balance: Internal
• Flywheel Material: Billet aluminum
• Make: Chevrolet
• Marine Use: No
• Notes: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft fit may have variations from slip-fit to slight interference. Tight fit at the crankshaft can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.
• Pressure Plate Style: Borg & Beck/Diaphragm
• Quantity: Sold individually.
• Rear Main Seal Style: 1-piece
• Replaceable Friction Surface: Yes
• Ring Gear Tooth Quantity: 168-tooth
• SFI 1.1 Approved: Yes
• Weight: 15.000 lbs.

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14.5 x 14.5 x 2 inches
• Weight: 15 POUNDS
