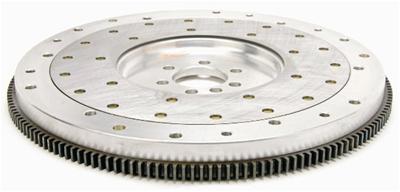

McLeod Aluminum Flywheels

Mcleod Aluminum Flywheels Are Ideal For Numerous Applications Such As Supercharged Or Turbocharged Engines. These Flywheels Are Ideal For Higher Horsepower Engines And Combinations That Achieve Rapid Rpm Levels. Mcleod Aluminum Flywheels Are Cnc Machined From 6061 T6 Aluminum And Come With A Replaceable Steel Friction Plate And 1045 Steel Hardened Ring Gear.

• • Billet Aluminum 6060-T6. • 1045 Steel Hardened Ring Gear. • SFI rated.

Vehicle Specific

• Chevrolet: Camaro 98 - 02 5.7 L Engine, Chevrolet: Camaro 10 - 13 6.2 L Engine, Chevrolet: Corvette 97 - 04 5.7 L Engine, Chevrolet: Corvette 05 - 07 6 L Engine, Chevrolet: Corvette 08 - 13 6.2 L Engine
• Chevrolet: Corvette 06 - 13 7 L Engine, Chevrolet: SSR 05 - 06 6 L Engine, Chevrolet: Silverado 1500 01 - 06 4.8 L Engine, Chevrolet: Silverado 1500 01 - 06 5.3 L Engine
• Chevrolet: Silverado 1500 04 - 04 6 L Engine, Chevrolet: Silverado 1500 Classic 07 - 07 4.8 L Engine, Chevrolet: Silverado 1500 Classic 07 - 07 5.3 L Engine, Chevrolet: Silverado 1500 HD 02 - 02 6 L Engine
• Chevrolet: Silverado 2500 01 - 04 6 L Engine, Chevrolet: Silverado 2500 HD 01 - 06 6 L Engine, Chevrolet: Silverado 2500 HD Classic 07 - 07 6 L Engine, Chevrolet: Silverado 3500 01 - 06 6 L Engine
• Chevrolet: Silverado 3500 Classic 07 - 07 6 L Engine, GMC: Sierra 1500 01 - 06 4.8 L Engine, GMC: Sierra 1500 01 - 06 5.3 L Engine, GMC: Sierra 1500 04 - 05 6 L Engine
• GMC: Sierra 1500 Classic 07 - 07 4.8 L Engine, GMC: Sierra 1500 Classic 07 - 07 5.3 L Engine, GMC: Sierra 2500 01 - 04 6 L Engine, GMC: Sierra 2500 HD 01 - 06 6 L Engine
• GMC: Sierra 2500 HD Classic 07 - 07 6 L Engine, GMC: Sierra 3500 01 - 06 6 L Engine, GMC: Sierra 3500 Classic 07 - 07 6 L Engine, Pontiac: Firebird 98 - 02 5.7 L Engine
• Pontiac: GTO 04 - 04 5.7 L Engine, Pontiac: GTO 05 - 06 6 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753316714
• Crankshaft to Flywheel Bolt Quantity: 6-bolt
• Disc Diameter (in.): 11.000/12.000 in.
• Engine: 1997-2013 LS1/LS2/LS3/LS6/LS7
• Engine Balance: Internal
• Flywheel Material: Billet aluminum
• Make: Chevrolet
• Marine Use: No
• Notes: .200In. of material added to face to put clutch assembly in same position as SBC/BBC.
• Pressure Plate Style: Borg & Beck/Diaphragm
• Quantity: Sold individually.
• Rear Main Seal Style: 1-piece
• Replaceable Friction Surface: Yes
• Ring Gear Tooth Quantity: 168-tooth
• SFI 1.1 Approved: Yes
• Weight: 15.000 lbs.

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14.5 x 14.5 x 2 inches
• Weight: 15 POUNDS
