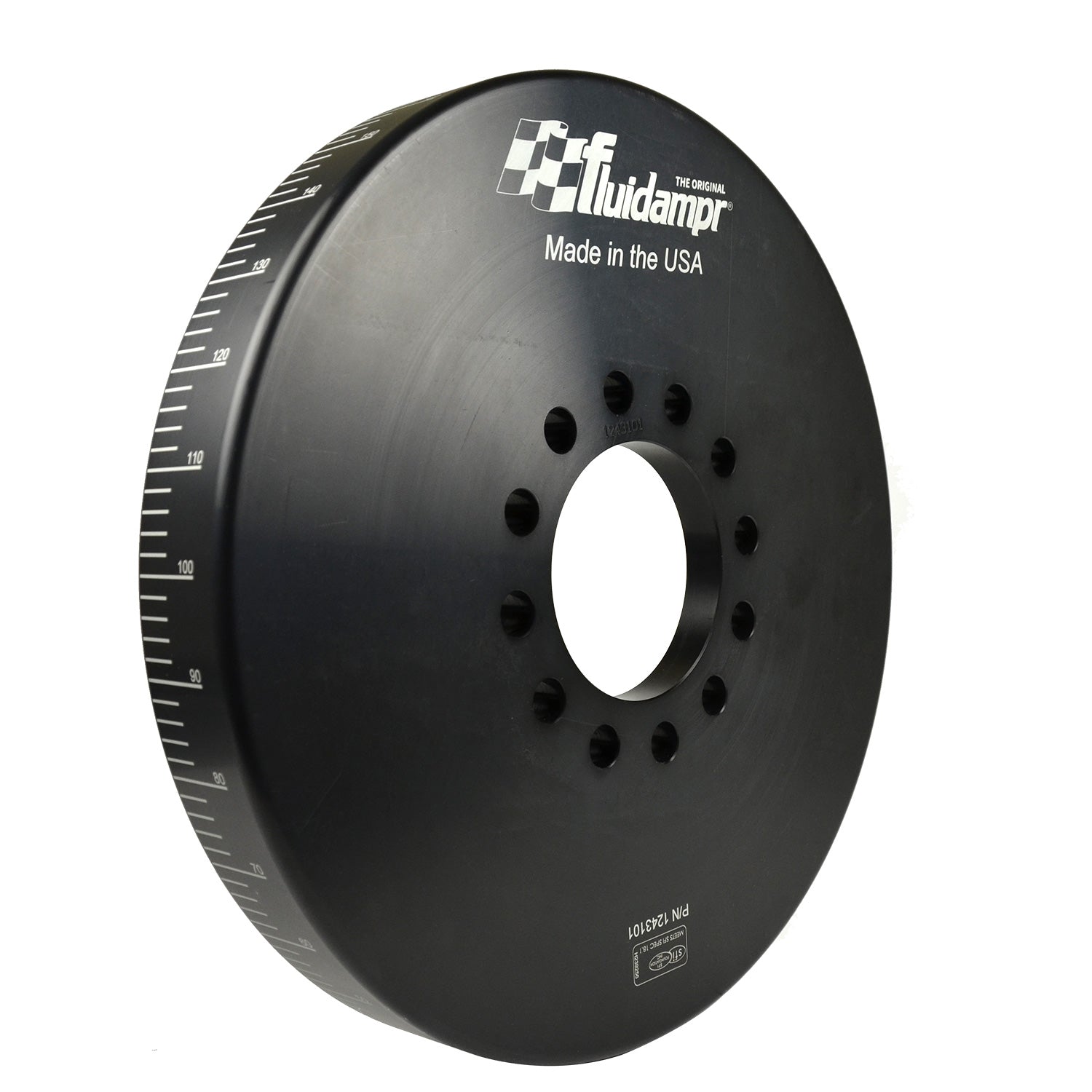

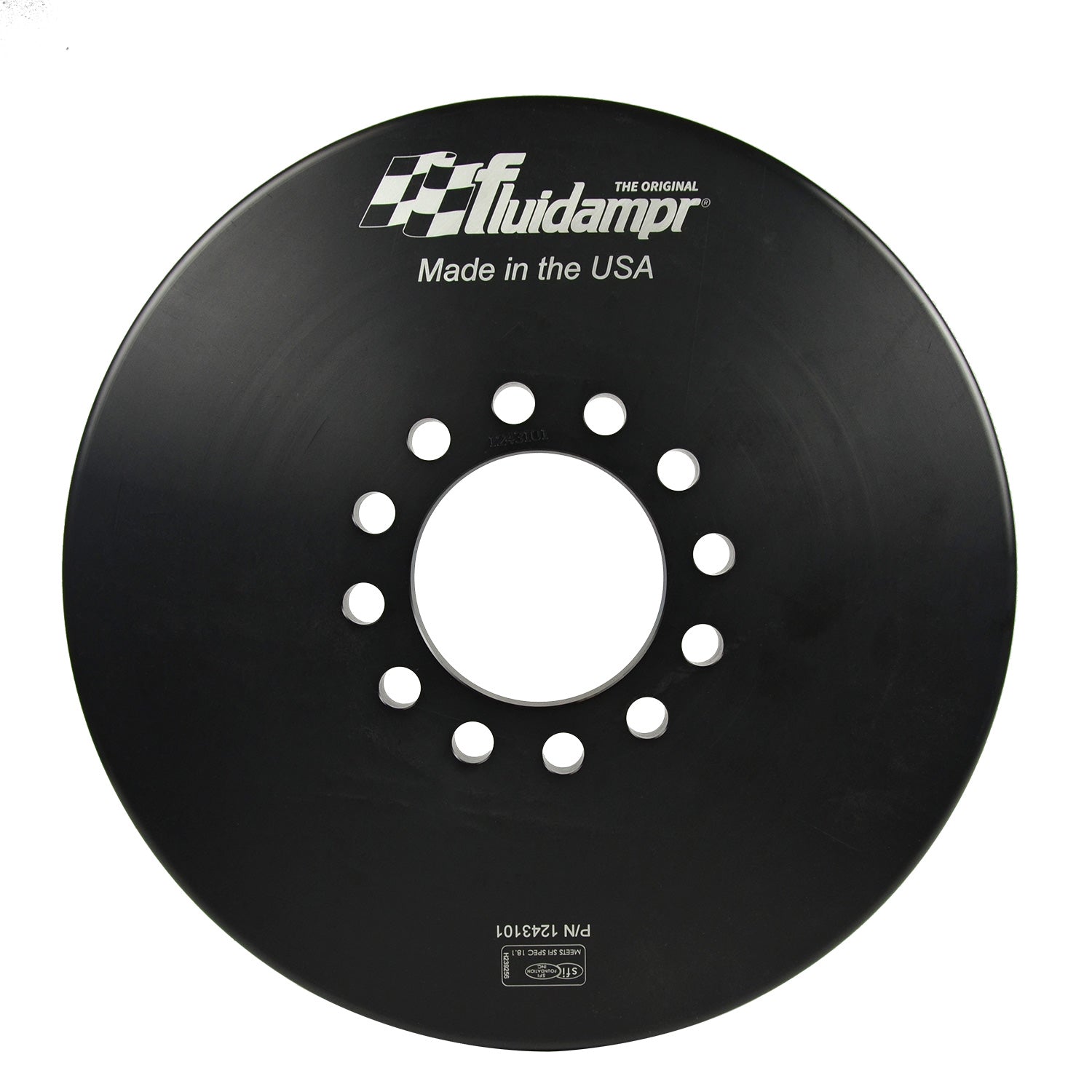

Fluidampr - 1243101 - Harmonic Balancer - Fluidampr - Tractor Pulling - Universal Fit For Taper Lock Hub - No Pulley - Each

Designed specifically for professional tractor pulling competition. Superior viscous damper design controls harmful torsional vibration across the entire rpm range. Reduce wear on engine components. Reduce risk of crankshaft failure. Improve timing. Unleash lost torque and horsepower. Competition built precision CNC machined and balanced high-grade steel components. Corrosion resistant black zinc finish with laser engraved clockwise and counter-clockwise timing marks. No maintenance required. Trusted by leading performance diesel engine builders worldwide. SFI 18.1 certified. Made in USA. NOTE: Damper flange

• 12 bolt mounting flange. Evenly spaced on 4.5" circle.
• Requires taper lock hub with 3.25" pilot.
• Clockwise and counter-clockwise laser engraved timing marks
• Robust competition design specifically for tractor pulling.
• SFI 18.1 spec.
• Made in USA.

Vehicle Specific

• Tractor Pulling. Universal Fit For Taper Lock Hubs.

Attributes:

• Brand Name: Fluidampr
• GTIN: 00815293003566
• Bolt And Washer Included: No
• Degree Marking Range: TDC to 180 at 2 degree increments. Clockwise and counter-clockwise.
• Degree Markings: Engraved
• Depth: 1.61
• Engine Balance: Internal
• Finish: Black Zinc
• Grade Type: Performance
• Inside Diameter: 3.2515
• Keyway Type: No
• Material: Steel
• Mounting Hole Diameter: 3.2515
• Mounting Hole Quantity: 12 on 4.5" circle. Requires taper lock hub with 3.25" pilot.
• Outside Diameter: 12.40
• Pulley Size: NO PULLEY - FOR COMPETITION USE
• Safety Rating: SFI 18.1
• Weight / Rotating Weight: 37 lbs / 24.4 lbs

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14 x 14 x 2 inches
• Weight: 37 POUNDS
