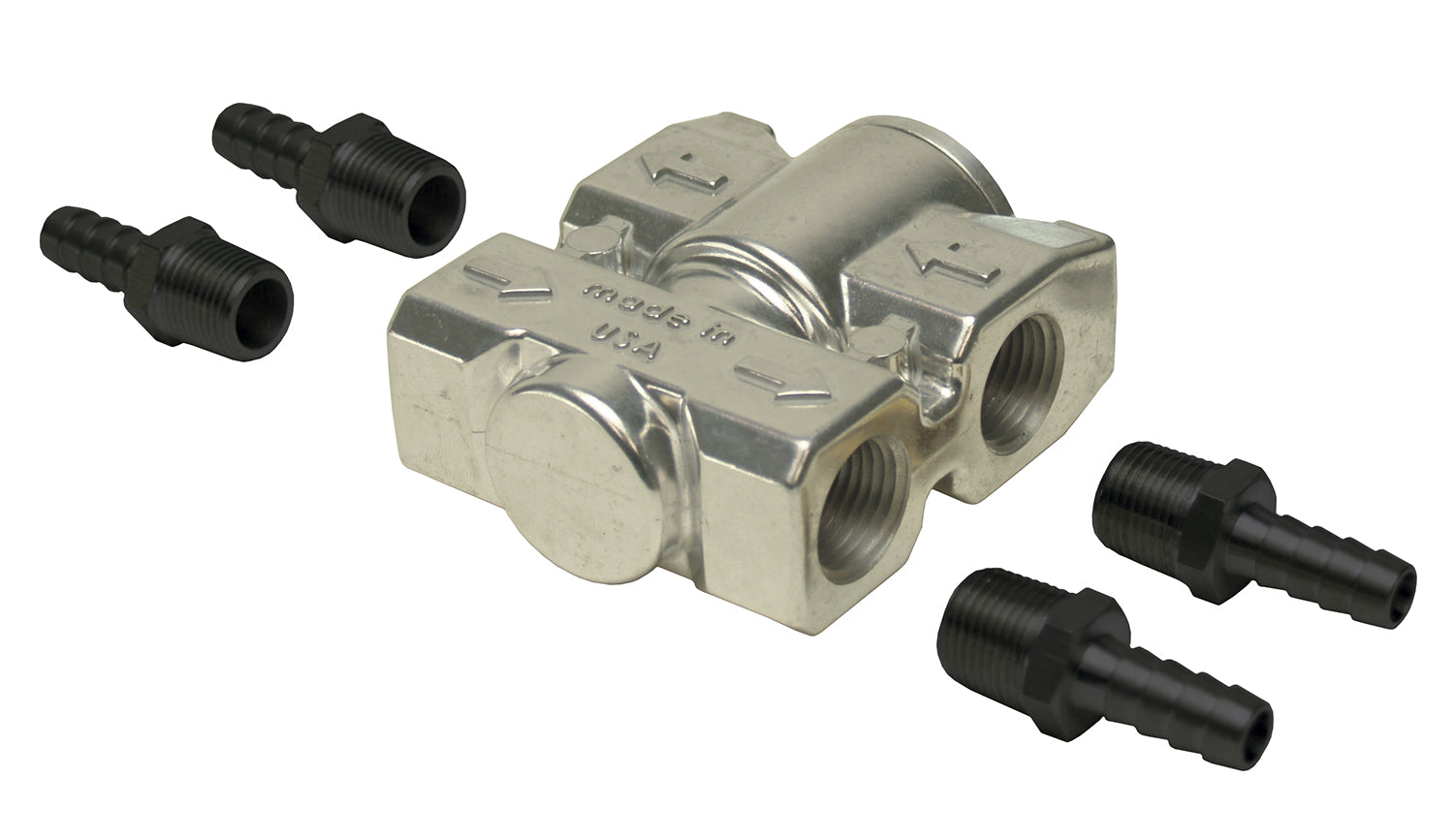

Fluid Control Thermostat Kit 3/8" NPT

This Billet Style Cast Aluminum Fluid Control Thermostat with 3/8” NPT ports allows the oil to bypass the cooler until it reaches 180°F at which point the internal thermostatic valve will close and force 100% of the oil through the cooler while maintaining a constant pressure system. This process allows the engine/transmission to achieve the ideal operating temperature quicker before passing the oil through the cooler. The unit can be rotated 180° to change flow direction. Hardware kit with hose barb fittings and hose clamps included.

• Fluid Control Thermostat Kit, 3/8" NPT

Attributes:

• Brand Name: Derale
• GTIN: 00083277130113
• Activating temperature: 180°
• Barb fitting size: 3/8
• Color: Silver
• Inlet size: 3/8 NPT
• Style: Billet Aluminum

Extended Information:

• Country of Origin: US
• Emissions : 4
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 4.38 x 7 x 2.25 inches
• Weight: 1.1875 POUNDS
