Fits Ford 289-302 Engine

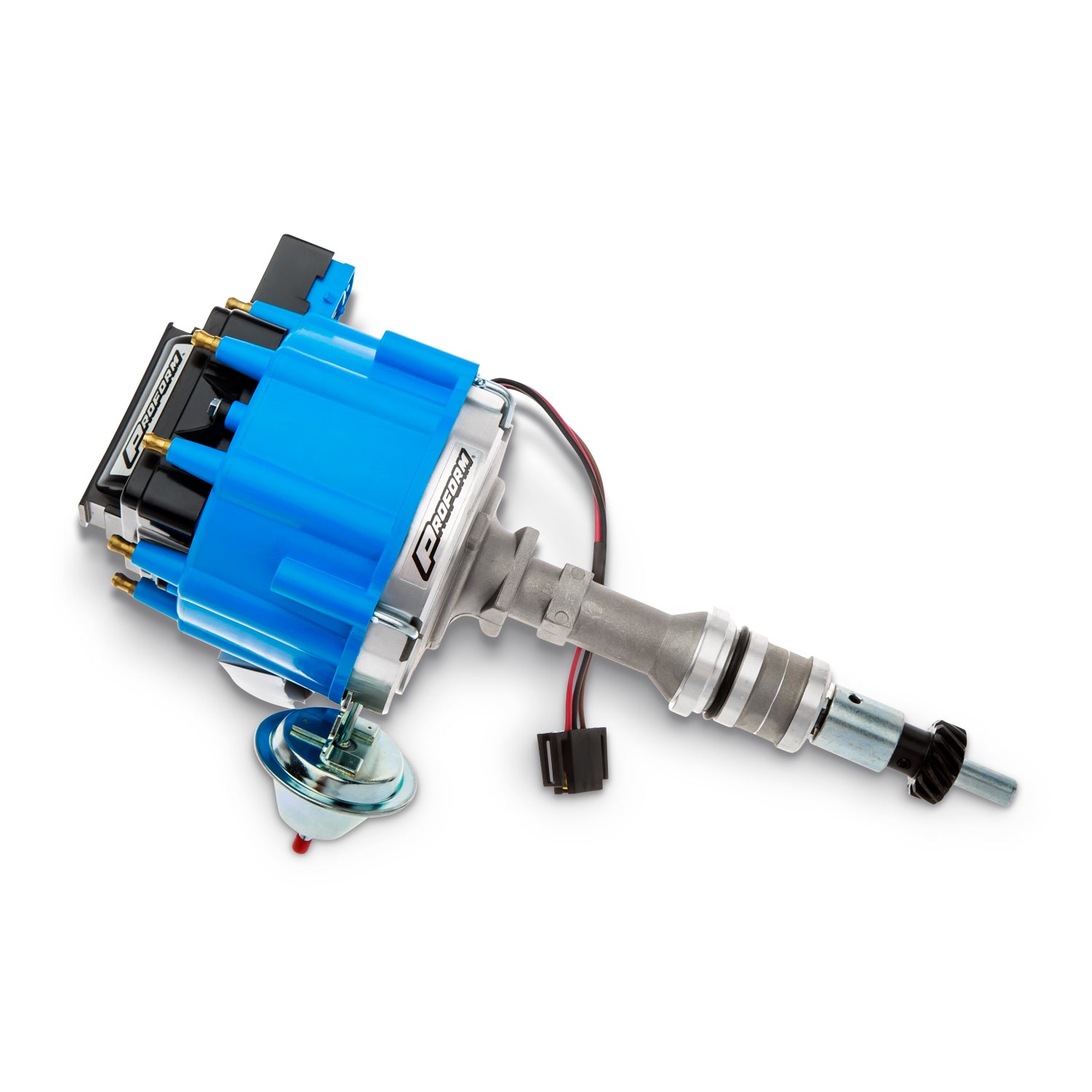

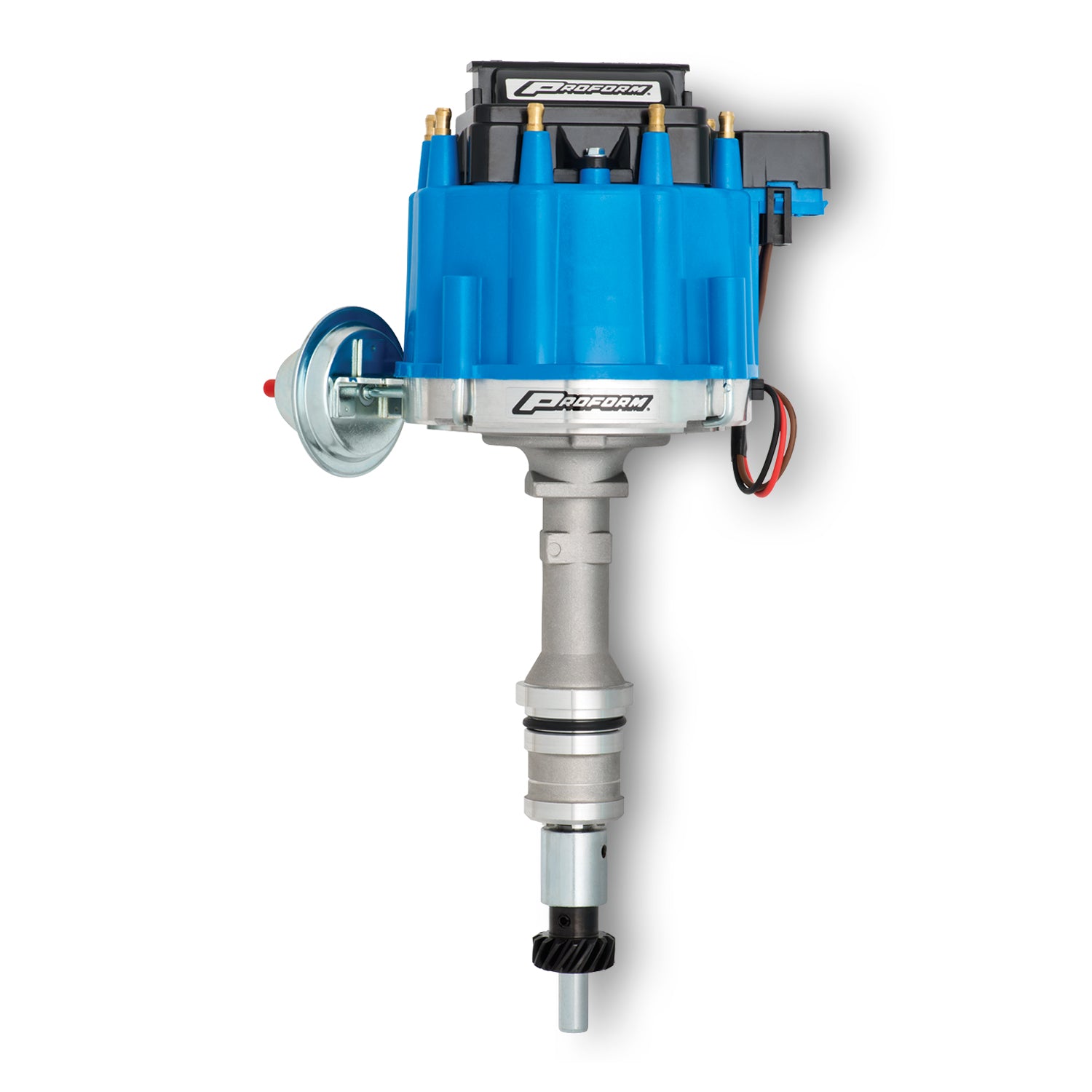

This HEI distributor is a street/strip version. It has a built-in coil with a magnetic trigger and features a blue distributor cap. Designed to fit Ford 289-302 5.0 engines. Distributor comes with an iron gear. Not compatible with factory roller camshafts without gear change using the recommendation of the cam manufacturer. Unit is made from high quality billet aluminum material and features a natural finish. Made from 100% new components. Utilizing the durable and dependable high energy ignition (HEI) system pioneered by GM, these distributors avoid the unsightly wiring of stock Ford electronic ignition systems by installing this one-piece distributor with an internally positioned coil and module. Easy to install: just connect one 12-volt hot wire to the distributor (has optional tach hook-up). These units offer calibrated advance curves that are optimized for maximum combustion efficiency and for the elimination of detonation damage and throttle ping. Assembled from precision-made parts for advance curve smoothness. Offers longer term durability and a higher voltage spark that permits a bigger spark plug gap, resulting in more power and reduced plug fouling. Each unit includes a high-power coil, a premium hi-dielectric cap with brass terminals, and a low-saturation ignition module. By eliminating the stock-ford ballast resistor, more ignition voltage results in improved spark. Incorporates easily found high energy ignition (HEI) replacement parts. Assembled with upper and lower bushings (stock Ford distributors have only a single bushing). Backed by a limited 30 day factory warranty.

• Street/strip distributor has a built-in coil and features a blue cap.

Attributes:

• Brand Name: Proform
• GTIN: 00037995419692
• Advance Type: Mechanical and Vacuum
• Applications: Ford 289 to 302 5.0 Engines
• Cap Color: Blue
• Coil Wire Included: Yes
• Connector Type: Sealed
• Distributor Cap Included: Yes
• Feature/Benefit: Street/strip distributor has a built-in coil and features a blue cap.
• Gear Material: Cast Iron
• Grade Type: Performance
• Housing Finish: Natural
• Ignition Box Required: No
• Ignition Coil Included: Yes
• Ignition Rotor Included: Yes
• Length: 15
• Make: Ford
• Marine Approved: No
• Mechanical Advance: 22 Degrees
• Number of Cylinders: 8
• Rotation: Standard
• Rotor Rotation: Clockwise (Right)
• Shaft Length: 9.65
• Shaft Material: Aluminum
• Terminal Gender: Male
• Terminal Quantity: 8
• Terminal Type: Lead Wire
• Trigger Type: Magnetic
• Vacuum Advance: 13 Degrees
• Voltage: 50,000 Volts

Extended Information:

• Country of Origin: CN
• Emissions : 3
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Weight: 0 POUNDS
