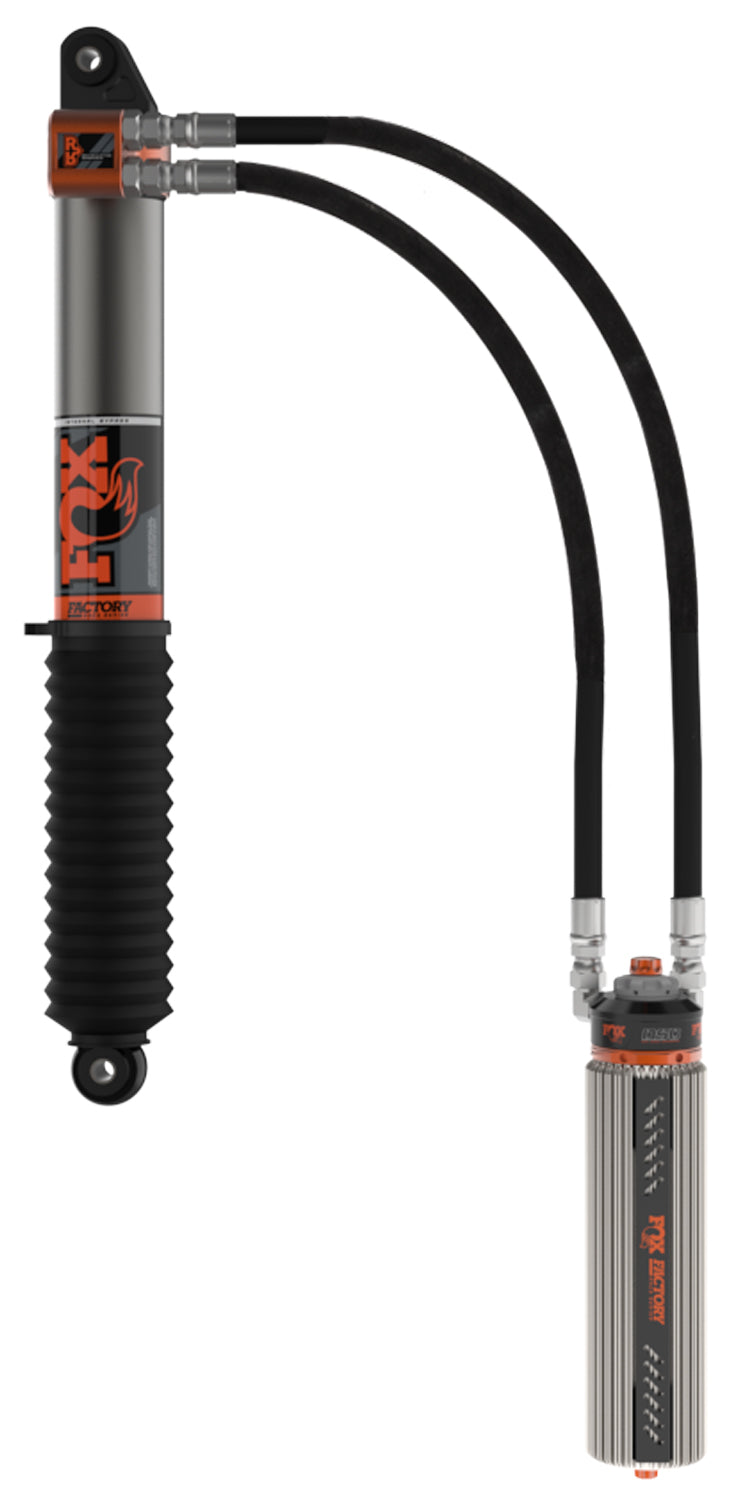

FACTORY RACE SERIES 3.0 INTERNAL BYPASS RESERVOIR SHOCK (PAIR) - ADJUSTABLE

Developed from our off-road race shocks, FOX Factory Race Series combines race-proven technology with new, cutting-edge features to provide enhanced ride-quality and winning damping performance you can bolt onto your Jeep.

• Performance Tuned For Vehicle Specific Application
• Aluminum Body Dissipates Heat Faster Than Steel
• Multiple Internal Damping Zones
• External Reservoir System Dissipates Heat Fast
• Black Anodized CNC Machined Aluminum Components

Attributes:

• Brand Name: FOX Offroad Shocks
• GTIN: 00711745592919
• Adjuster Type: DSC - Dual Speed Compression
• Body Diameter (in): 3
• Body Material: Aluminum
• Bottom Mount: Eyelet
• Compressed Length (in): 17.16
• Extended Length (in): 27.73
• Fox Catalog: TRUCK
• Label Name: Kit: 19-ON GM 1500, Rear, Internal Bypass, 3.0 Series, Recirc R/R, DSC, Non-TB/Non-AT4 2-3" Lift, TB/AT4 0-1" Lift
• Reservoir Type: Recirculating Remote
• Series: Factory Race
• Top Mount: Eyelet
• Travel (in): 10.32
• Type: Smooth Body Internal Bypass

Extended Information:

• Country of Origin: US
• Emissions : 1
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 39.2500 x 20.3750 x 11.2500 inches
• Weight: 54.0000 POUNDS
