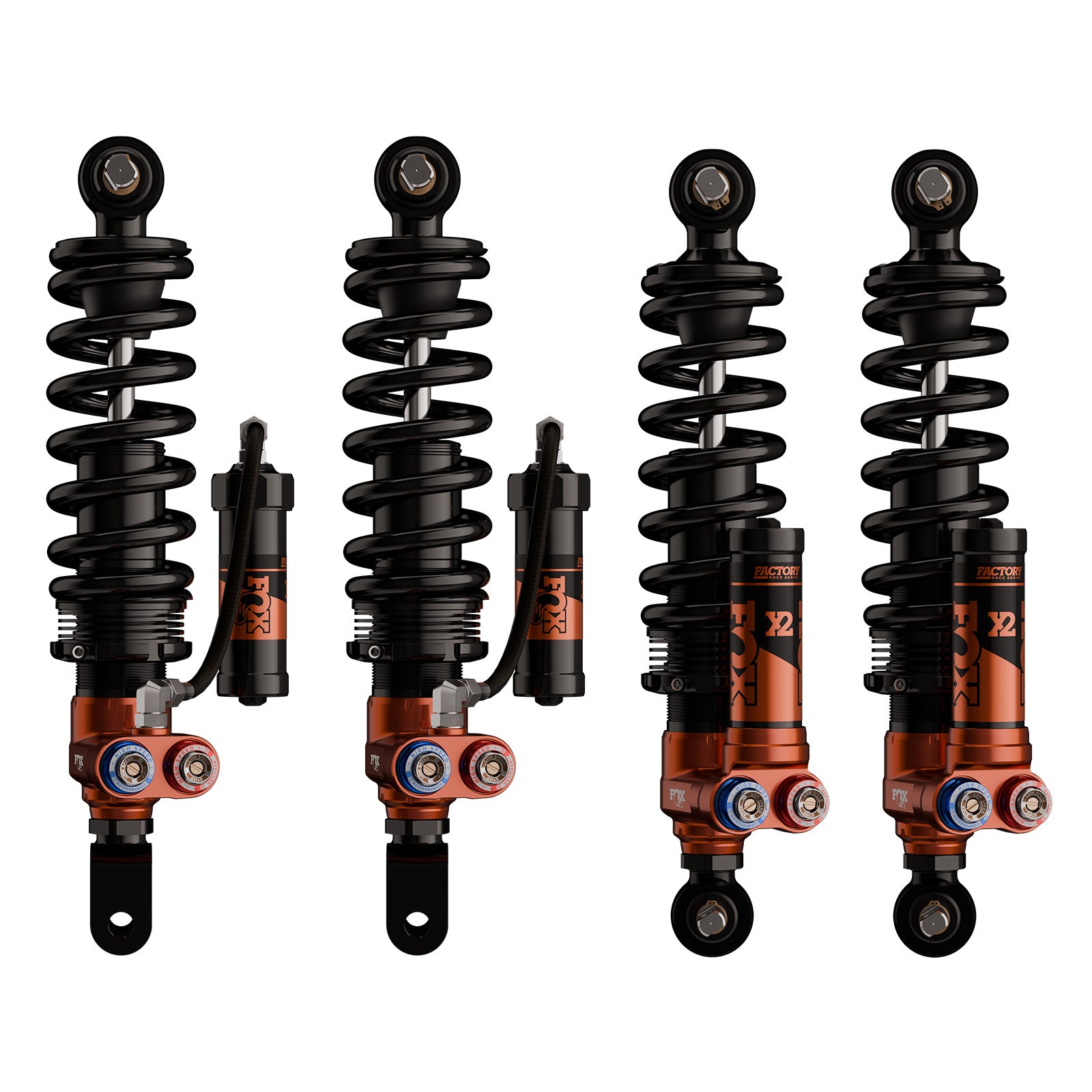

FACTORY RACE SERIES 2.0 COIL-OVER RESERVOIR SHOCK (KIT) - ADJUSTABLE

The C7 Corvette delivers speed from the factory, and a strong aftermarket catalog makes the chassis an ideal vehicle to configure into a dedicated track car or performance-oriented daily driver. FOX Factory Race Series 2.0 X2 shocks dramatically improve the car’s handling and driver confidence. TYPE III hard anodization prevents corrosion and wear of the 2.0-inch aluminum bodies. Converting the front suspension to a coil-over makes spring changes, ride height adjustment, and corner balancing easier. The Factory Race Series kit accommodates 0.75-1.5” of lowering. External reservoirs increase oil capacity and decrease the harshness associated with nitrogen ramp-up. Our ride engineers spent considerable time testing the Corvette. We tracked the car, drove the C7 on the street, and optimized the shock valving for various driving conditions. Fine-tune the vehicle’s damping with the 4-way adjuster, X2. Easily tune high-speed compression, high-speed rebound, low-speed compression, and low-speed rebound separately with 24 clicks each. The shock’s twin tube recirculating oil architecture coupled with X2 provides motorsport-level damping on the track, and 4-way adjustment allows for a comfortable drive home. The C7 Corvette is powerful and track-capable. With FOX, you can transform its ride dynamics to deliver more comfort over rough surfaces while feeling planted and stable through different track layouts and topography.

• 2.0” impact-extruded and CNC-machined 6061-T6 TYPE III anodized aluminum body
• 5/8” hard chromed steel shafts
• Vehicle-specific tuning maximizes performance
• Patented rubber isolated spherical bearing
• Redundant sealing pack system: main seal, wiper seal, scraper seal
• External reservoir, with internal floating piston

Attributes:

• Brand Name: FOX Offroad Shocks
• GTIN: 00692878902519
• Adjuster Type: X2 DSC - Dual-Speed Compression, DSR - Dual-Speed Rebound
• Body Diameter (in): 2.0
• Body Material: Aluminum
• Bottom Mount: Bar Pin(F)/Clevis(R)
• Compressed Length (in): 12.58(F)/12.86(R)
• Extended Length (in): 16.56(F)/16.94(R)
• Fox Catalog: TRUCK
• Label Name: Kit: MY14-19 Chevrolet Corvette C7, 2.0 On-Road FRS, X2, DSC, DSR
• Reservoir Type: Remote
• Series: Factory Race
• Top Mount: Bar Pin
• Travel (in): 3.98(F)/4.08(R)
• Type: Coil-Over
• Vehicle Ride Height Drop: 0.75"-1.5"

Extended Information:

• Country of Origin: US
• Emissions : 1
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 34.6000 x 16.6000 x 10.6000 inches
• Weight: 59.2000 POUNDS
