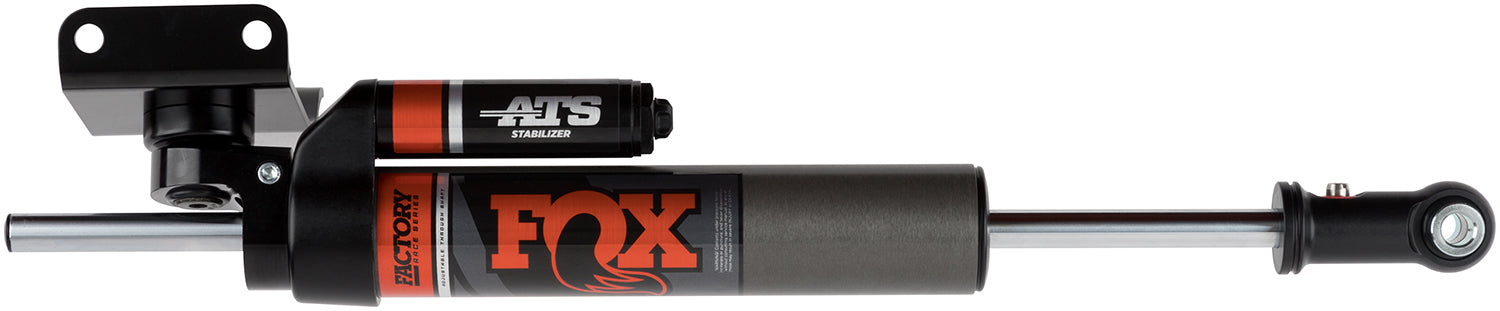

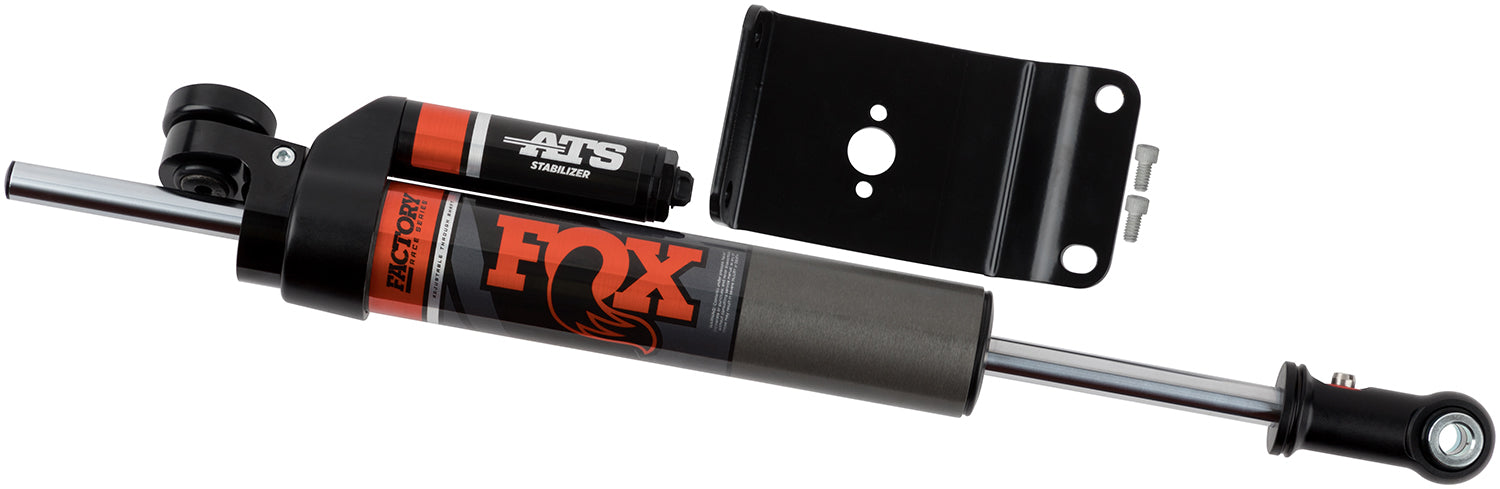

FACTORY RACE SERIES 2.0 ATS STABILIZER

Developed from our off-road race shocks, FOX Factory Race Series combines race-proven technology with new, cutting-edge features to provide enhanced ride-quality and winning damping performance you can bolt onto your truck or SUV.

• Adjustable Through Shaft Stabilizer
• Performance Tuned For Vehicle Specific Application
• Aluminum Body Dissipates Heat Faster Than Steel
• Eliminates fluid displacement, delivering neutral and consistent damping of unwanted steering feedback
• External Reservoir With Compression Adjuster

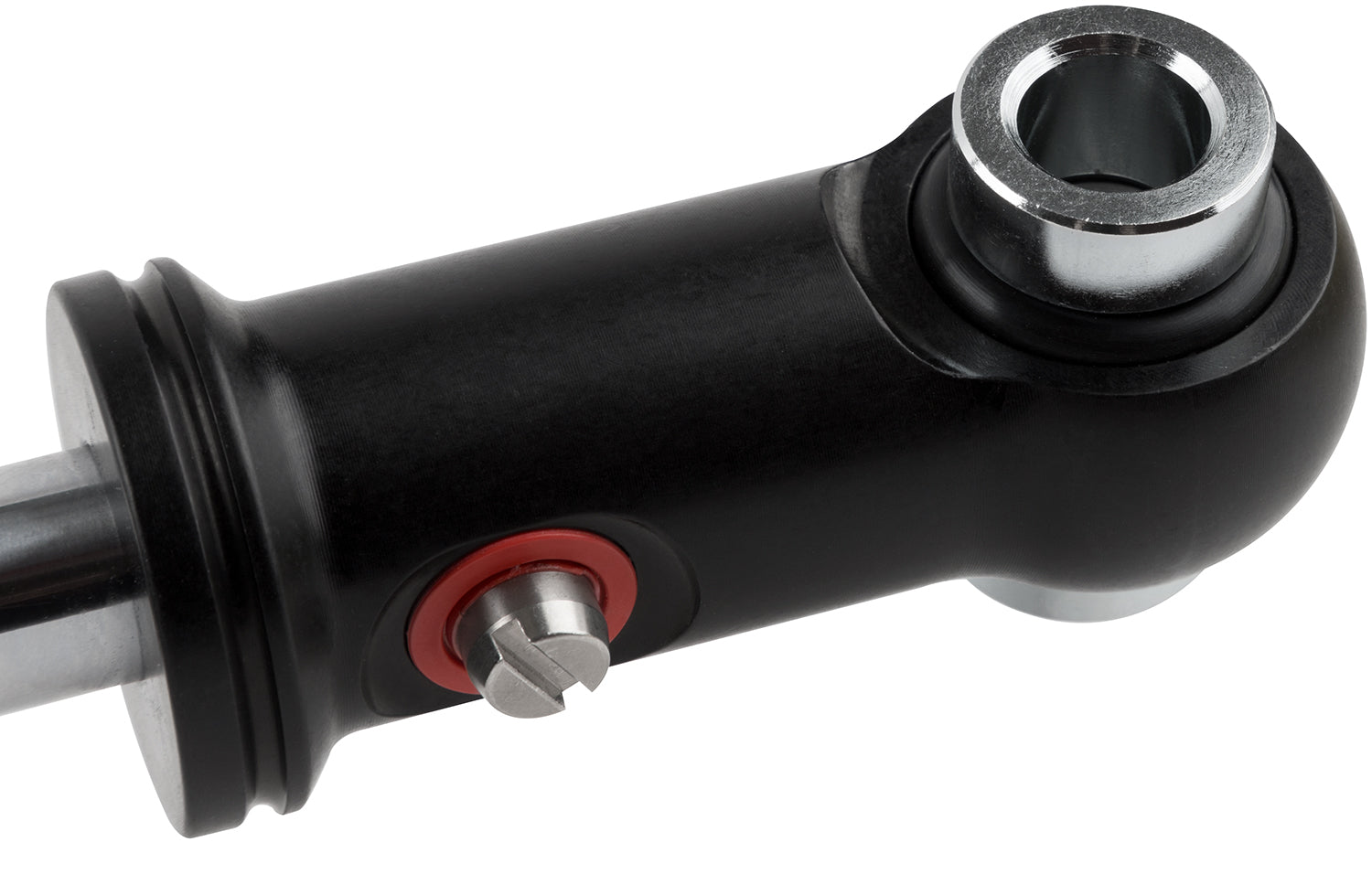

• Black Anodized CNC Machined Aluminum Components

Attributes:

• Brand Name: FOX Offroad Shocks
• GTIN: 00711745602991
• Body Diameter (in): 2
• Body Material: Aluminum
• Bottom Mount: Eyelet
• Compressed Length (in): 15.07
• Extended Length (in): 23.27
• Fox Catalog: TRUCK
• Label Name: 14-18 RAM 2500/3500 ATS Stabilizer, 8.2" Trav, 23.3" Ext, Through-Shaft, Axle Mount
• Reservoir Type: Piggyback
• Series: Factory Race
• Tie Rod Clamp: Axle Mount
• Top Mount: Axle Mount
• Top Mount (p/n): 026-01-082
• Travel (in): 8.20
• Type: Stabilizer

Extended Information:

• Country of Origin: US
• Emissions : 1
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 28.5000 x 4.0000 x 4.0000 inches
• Weight: 7.4000 POUNDS
