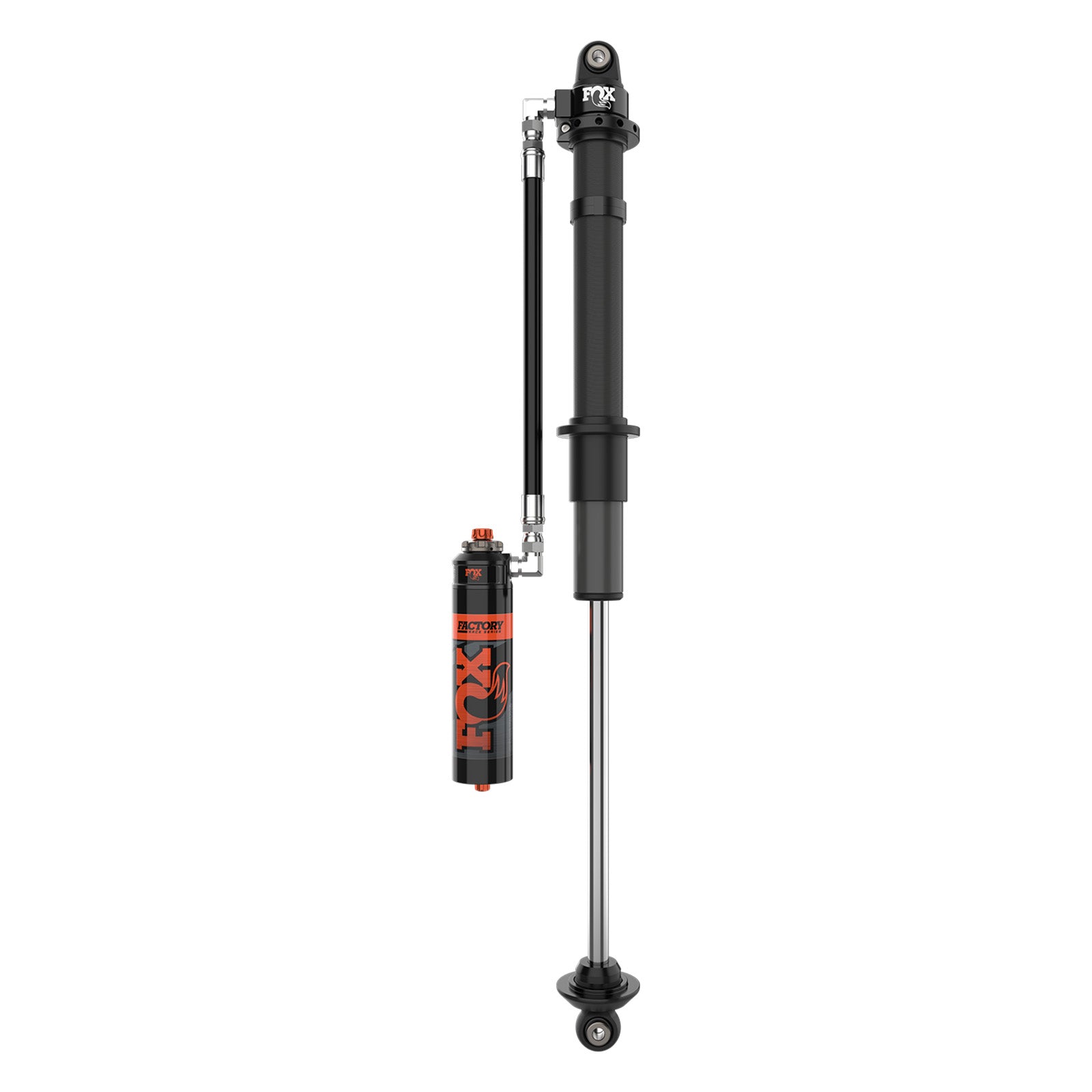

FACTORY RACE 2.0 X 14 COIL-OVER (7/8" SHAFT) ROTATING REMOTE SHOCK

FOX devotes countless hours of research and development to design race-winning suspension that withstands incredible punishment and provides consistent performance you can rely on. Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our shocks will give you the damping performance, suspension control and proper spring rate to get the job done.

• NEW proprietary Cerakote® protective ceramic coating over zinc plated basecoat
• 7/8" hard chrome plated 17-4 H900 stainless steel shaft
• Owner serviceable and rebuildable
• JM92 MIL-SPEC oil developed specifically for off-road racing
• Black Anodized CNC Machined Aluminum Components

Attributes:

• Brand Name: FOX Offroad Shocks
• GTIN: 00692878901741
• Body Diameter (in): 2
• Body Finish: FOX Grey Cerakote
• Body Material: Steel
• Bottom Mount: Eyelet
• Compressed Length (in): 21.5
• Extended Length (in): 35.42
• Eyelet Length (in): 2
• Fox Catalog: OFFROAD
• Hose: -8 x 18.00
• Label Name: 2.0 FRS, CO, R/R-RT, 14"
• Mounting: 1/2 x 1-1/2
• Reservoir Dimensions: 2.17 x 11.00
• Reservoir Type: Rotating Remote
• Seal Kit: 803-04-033
• Series: Factory Race
• Shaft Size (in): 7/8
• Top Mount: Eyelet
• Travel (in): 13.92
• Travel (rounded): 14
• Type: Coil-Over
• Valving: 807-24-066

Extended Information:

• Country of Origin: US
• Emissions : 1
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 47.0000 x 6.5000 x 4.5000 inches
• Weight: 0 POUNDS
