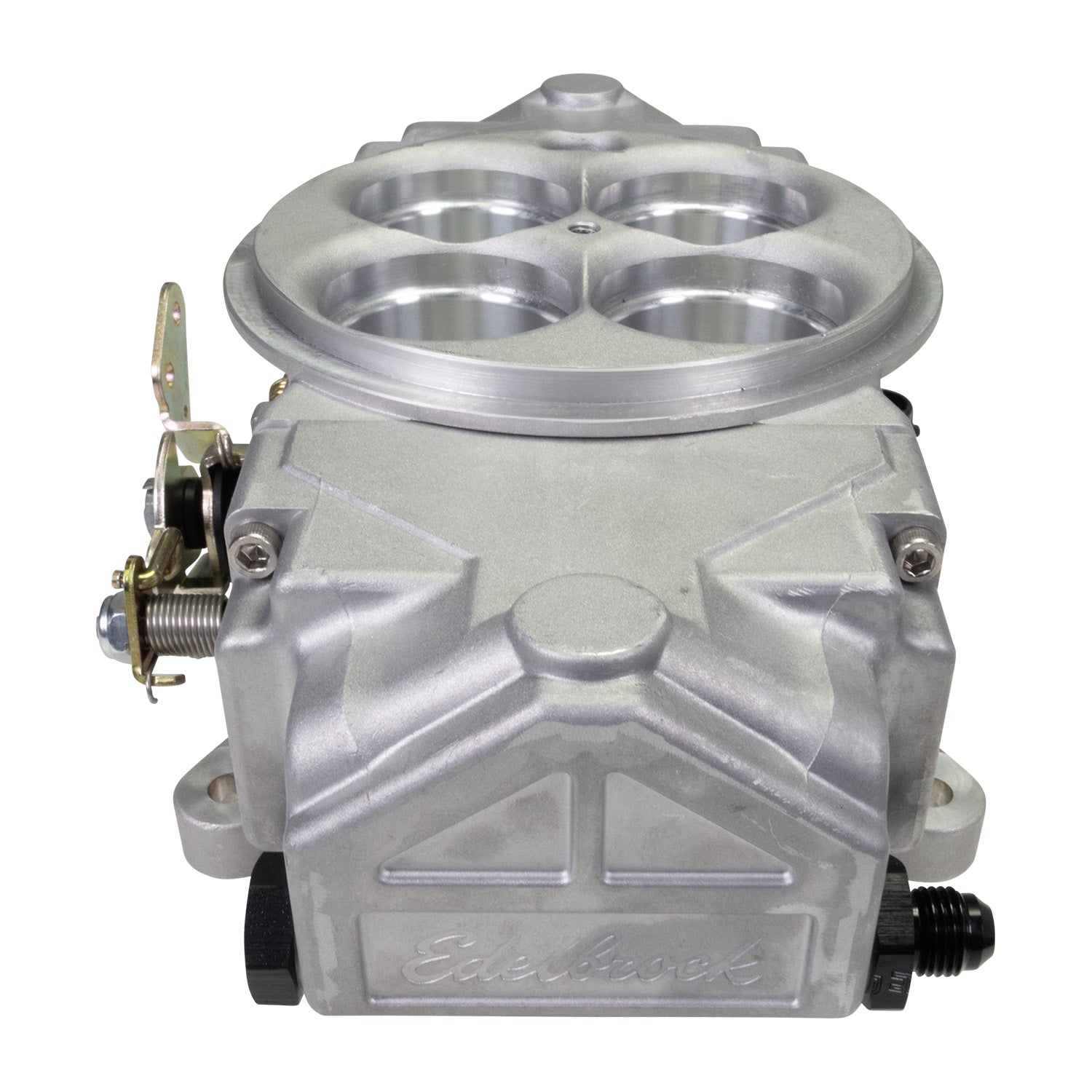

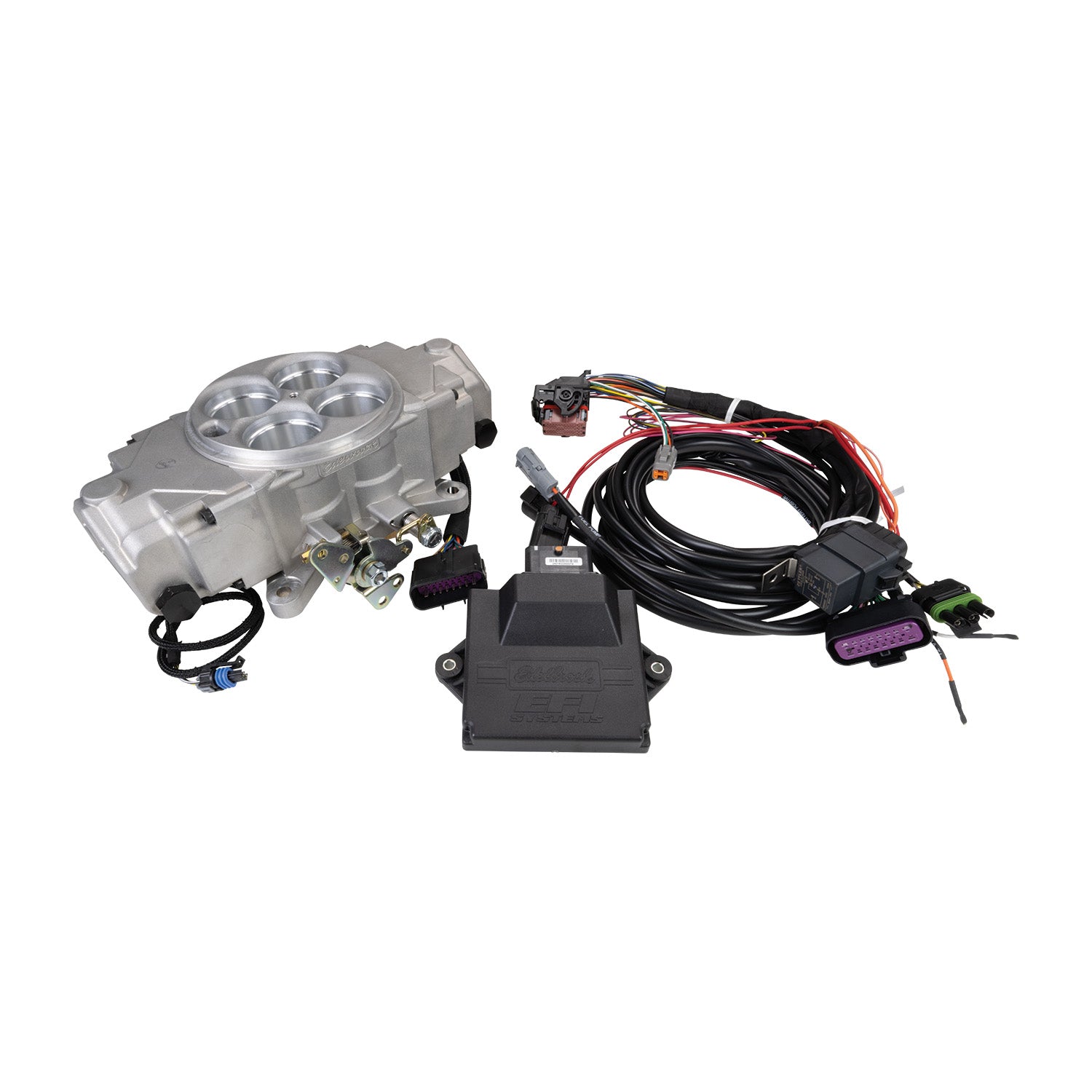

EZ-Street Throttle Body EFI System

no need for custom tuning or a laptop. The included EZ-Street Bluetooth Tuner App, available for both iOS and Android, allows users to configure the system, adjust settings, and monitor performance through intuitive preprogrammed dashboards. Data logging, fuel control, and dual electric fan management are all accessible directly from a smartphone or tablet. Beyond fuel delivery, the EZ-Street EFI offers the option of fully programmable ignition control, enabling optimized performance and improved fuel efficiency. When paired with a Pro-Flo distributor (sold separately), the EZ-Street EFI can deliver fully integrated timing control at the touch of your fingers. With an internal coil driver and compatibility across most HEI distributors, ready-to-run distributors, and CDI boxes, the system eliminates the need for separate ignition modules. Capable of supporting up to 650 horsepower, the EZ-Street EFI system combines advanced annular-fuel-venturi distribution with modern CAN communication protocols to provide reliable, high-performance results in a simplified package.

• Choice of three calibrations offers great out of the box performance even with big camshafts
• Supports 650 horsepower
• E-Tuner app offers easy setup, changes, and monitoring with crisp, clear graphics and easy navigation
• Supports 650 horsepower, Built in fuel pressure sensor, Standard 4150 flange, Classic Carburetor looks, Uses common linkages and air cleaners, Offers full spark control or fuel control only depending on users needs
• Built in coil driver, Bosch LSU 4.9 Wideband O2 sensor, Closed loop, Self Learning fueling technology, CAN Communication simplifies integration with other devices such as Transmission Controllers
• Compact, fully potted ECU with built in Bluetooth communication, Android and IOS E-Tuner app for simple and clean setup and engine monitoring, Simple 4 wire hookup for easy installation

Vehicle Specific

• 4150 style Throttle Body Fuel Injection for most domestic V8 engines, Optional Spark Control, Closed Loop Self Learn Fuel strategy, Throttle Body Fuel Injection for most domestic V8 engines
• Supports up to 650HP

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347899531
• Accelerometer Support: No
• Air Metering Style: Speed Density
• Boost Control: No
• Built-In Bluetooth Module: Yes
• CAN-BUS Support: Yes
• Coil Per Cylinder Ignition Support: No
• Cross sell / Upsell Part Numbers: PF4, Max Fire or FAST Ready Run Distributors, Ignition Control option for TBI Injection
• Datalogging Support: Yes
• Distributor Included: No
• Dry Nitrous Control: No
• EGT Support: No
• Flow Rate: 360
• Forced Induction Support: No
• Fuel Filter Included: No
• Fuel Hose Included: No
• Fuel Injection Type: Sequential and Batch Fire
• Fuel Injectors Included: Yes
• Fuel Pressure Regulator Included: No
• Fuel Pump Included: No
• Grade Type: Performance
• Idle Air Control Motor Included: Yes
• Ignition Timing Control: Yes
• Individual Cylinder Fuel Corrections: No
• Injector Flow Rate at 58 PSI: 90
• Injector Quantity: 4
• Inlet / Outlet Size: -6AN Male
• Intake Manifold Included: No
• Knock Retard Support: No
• Maximum Injector Quantity Supported: 4
• Mounting Hardware Included: Yes
• Multi-Stage Nitrous Control: No
• Progressive Nitrous Control: No
• Related Products: Air Cleaners, Fuel Systems, Intake Manifolds, Ignition components, MAx Fire Spark Plug Wires, Russell Plumbing products, TCI Transmission Controllers
• Self-Tuning: Yes
• Throttle Body Air Flow Rate: 1000
• Throttle Body Flange Length: 5.625
• Throttle Body Flange Thickness: 0.5
• Throttle Body Flange Width: 5.1875
• Throttle Body Material: Aluminum
• Throttle Body Venturi Quantity: 4
• Throttle Position Sensor Included: Yes
• Universal Or Specific Fit: Universal
• User-Tuneable: Yes
• Venturi Quantity: 4
• Wet Nitrous Control: No
• e85 Support: No

Extended Information:

• Country of Origin: United States
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 21.5 x 11.5 x 8 inches
• Weight: 12.5 POUNDS
