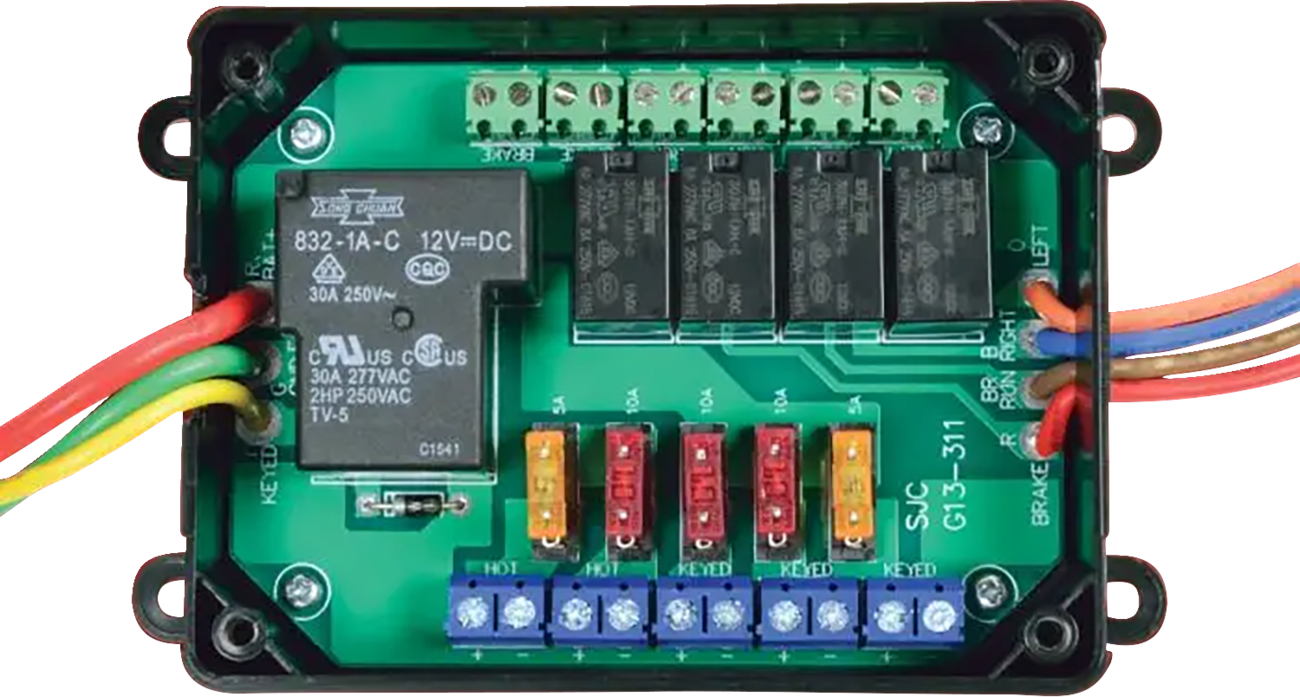

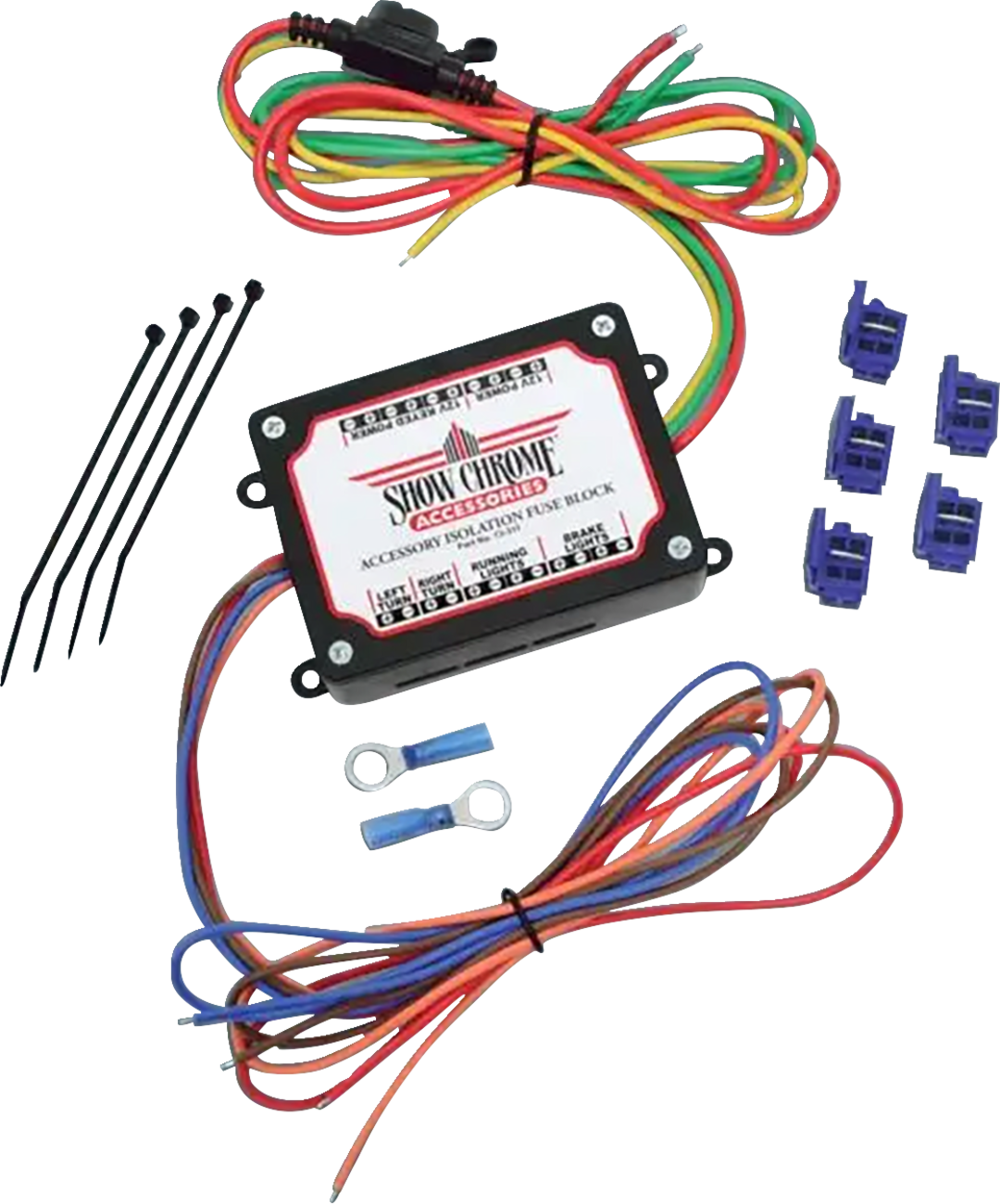

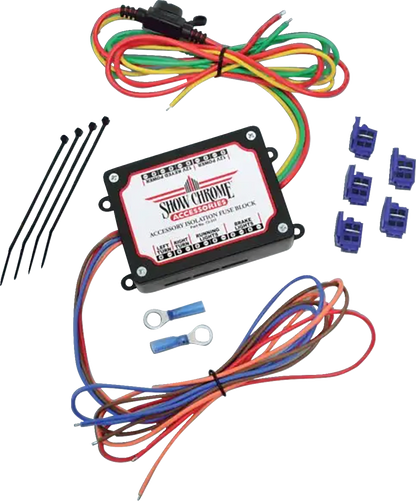

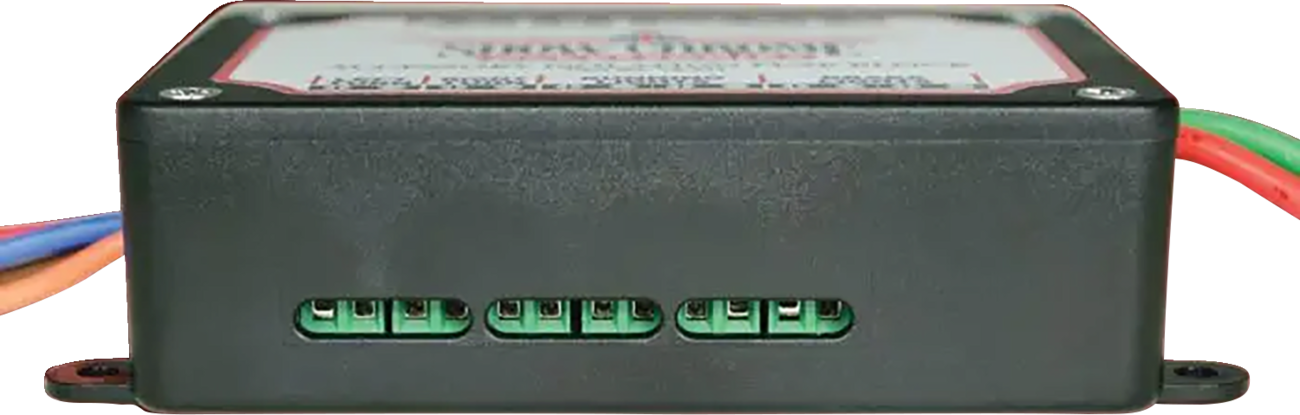

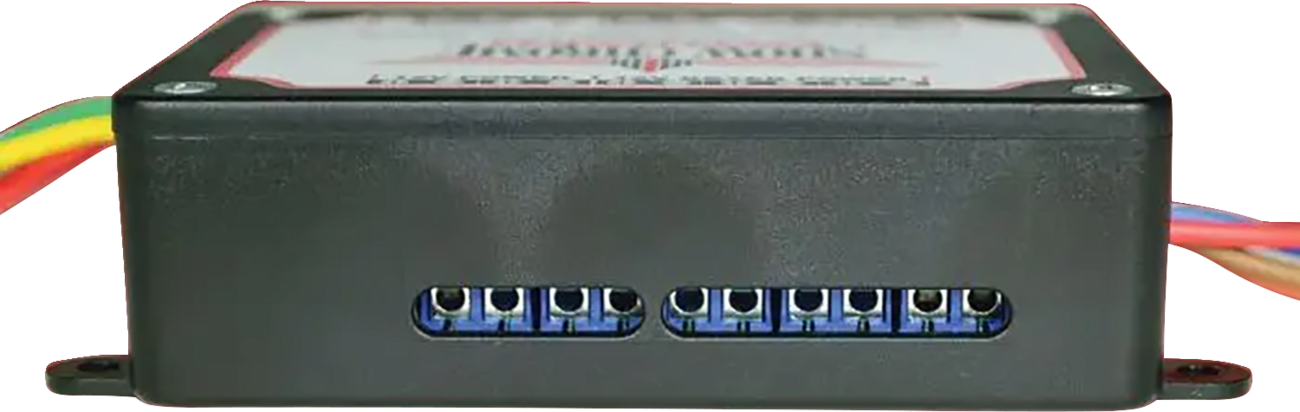

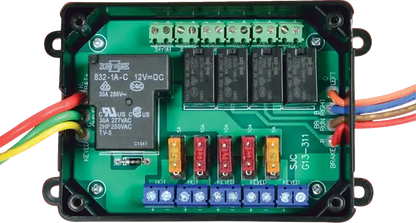

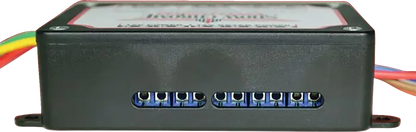

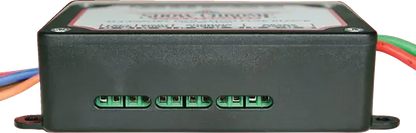

Compact in size; 1-1/8” x 2-3/4” x 3-3/4”. Easily mounts to the battery, eliminating all other direct battery connection needs. 20 A fuse and separate 30 A relay isolate all your electrical accessories from the bike’s electrical system. Includes 3 keyed power connections, 2 always on power connections protected by a combination of 5 A and 10 A fuses. Can be used as a trailer isolating wiring. Separate left and right turn signal connection terminals, 2 running light and 2 brake light terminal blocks, all protected by four 8 A , 277 V automatic switch relays for complete isolation. Universal application.
