EFI SYSTEM

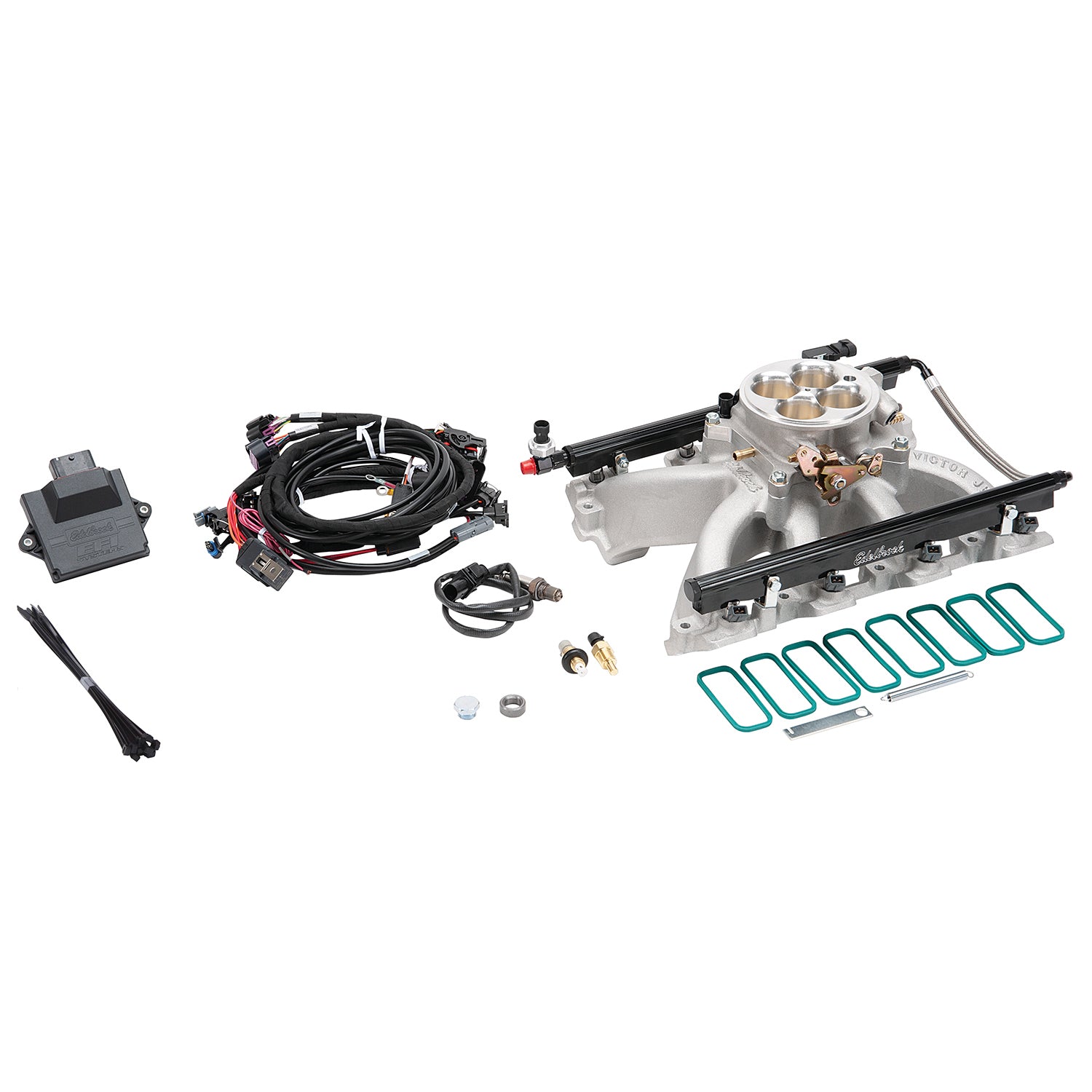

The Edelbrock part #357000 Pro-Flo 4 Sequential Port EFI System for Chevrolet LS GEN III/IV engines is equipped with the latest technology and features. The EFI system comes complete with a traditional 4150-Style satin finish Victor Jr. cathedral port single plane intake manifold and 29 Lb/Hr injectors capable of 450 HP with 58 p.s.i. fuel pressure. The new Pro-Flo 4 EFI systems feature an all-new ECU with a faster processor, a water proof design and measures half the depth of the previous ECU. It also has an upgraded Bluetooth chip that is faster, more reliable and will not drop connection. We've added more features for the advanced tuner giving you control over air-fuel ratios, ignition curve, idle speed, acceleration fuel, coolant fans, Rev limiter while retaining the simplicity Pro-Flo is known for. The key to the system is our exclusive E-Tuner 4 app with dyno developed base calibrations. The E-Tuner 4 app uses a Bluetooth wireless connection to communicate with the ECU's self-learning capability to continually adjust the calibration to get the maximize performance of your engine. E-Tuner 4 features a simple and easy to use setup wizard to help you get started as well as multiple dash displays so you can monitor your engines vitals. Best of all, the E-Tuner 4 app is free and can be downloaded from the Google Play Store, allowing you to use your personal Android based smart phone or tablet. Please Note "Kit 357000 DOES NOT include a 7" Android tablet". If you don't have a compatible device, then we also offer kits that include a 7" Android tablet with the E-Tuner 4 app installed. Pro-Flo 4 does not require laptop tuning. Vehicle Specific

• Chevrolet:Small-Block LC9:325 (5.3L)
• Chevrolet:Small-Block Gen IV LMF:325 (5.3L)
• Chevrolet:Small-Block Gen IV LY5:325 (5.3L)
• Chevrolet:Small-Block LH8:325 (5.3L)
• Chevrolet:Small-Block LMF:325 (5.3L)
• Chevrolet:Small-Block LMG:325 (5.3L)
• Chevrolet:Small-Block LY5:325 (5.3L)
• Chevrolet:Small-Block Gen III LM7:325 (5.3L)
• Chevrolet:Small-Block Gen III LR4:293 (4.8L)
• Chevrolet:Small-Block Gen III LS1:346 (5.7L)
• Chevrolet:Small-Block Gen III LS2:364 (6.0L)

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347999590
• Bore Diameter: 1.75
• Distributor Cap Included: Yes
• Finish: Satin
• Flange Type: 4150
• Fuel Injector Type: 29 lb/hr
• Fuel Pressure Port: 1/8-27 NPT
• Gasket Or Seal Included: Yes
• Idle Air Control Motor Included: Yes
• Manifold Height: 4.95
• Maximum Horsepower: 450
• Quantity: Kit
• RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• System Type: Traditional 4150-Style Kit
• Throttle Body Type: 4 Barrel
• Wire Harness Included: Yes
• Wiring Harness Included: Yes

Extended Information:

• Country of Origin: US
• Emissions : Racing or Pre-Emissions Use Only
• Life Cycle Status: Obsolete

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 30.125 x 25.125 x 10.5 inches
• Weight: 34 POUNDS
