EFI SYSTEM

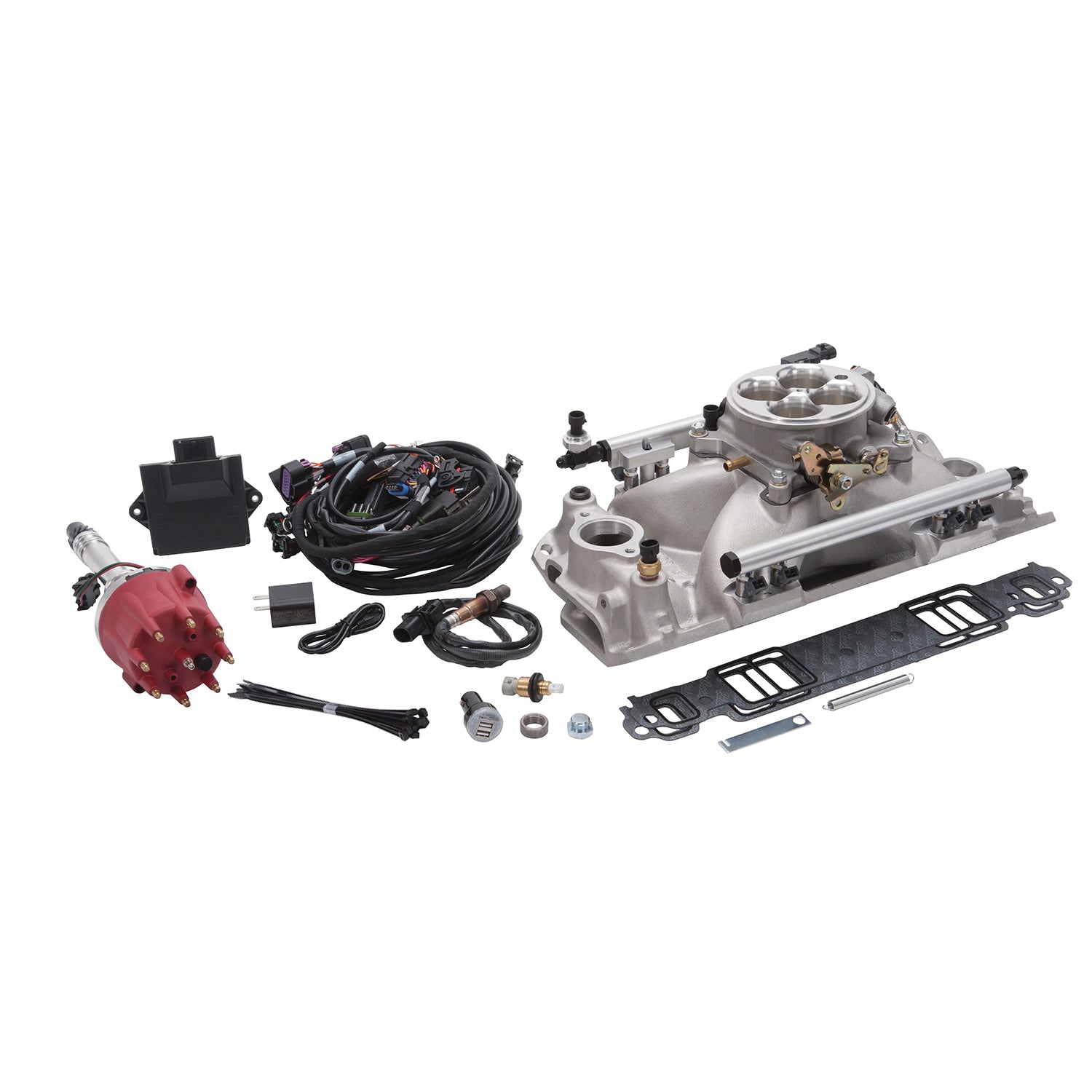

The Edelbrock Pro-Flo 4 EFI Kit #35690 for 1986-earlier small-block Chevy engines is a fully sequential multi-port injection system designed with a fuel injector positioned in each runner of the intake manifold to deliver the best fuel atomization and most even distribution to each cylinder. This system features the high-performance Super Victor single-plane intake manifold that comes preassembled with high-flow injectors, fuel rails and 4150-flange throttle body. All supporting sensors are included along with wire harnesses and ECU. The Super Victor SBC manifold is designed with a larger cross-sectional area in the plenum and large runners for high-horsepower and/or large cubic-inch applications. This kit uses 42 lb/hr injectors and is rated for 675 horsepower at 58 PSI of fuel pressure.The exclusive Edelbrock E-Tuner 4 app is Free and Available for Android and IOS based smart phone or tablet. Vehicle Specific

• Chevrolet:Small-Block Gen I:283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L)

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347356904
• Bore Diameter: 1.75
• Distributor Cap Included: Yes
• Finish: Satin
• Flange Type: 4150
• Fuel Injector Type: 42 lb/hr
• Fuel Pressure Port: 1/8-27 NPT
• Gasket Or Seal Included: Yes
• Idle Air Control Motor Included: Yes
• Manifold Height: 4.58
• Maximum Horsepower: 675
• Quantity: Kit
• RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• System Type: Traditional 4150-Style Kit
• Throttle Body Type: 4 Barrel
• Wire Harness Included: Yes
• Wiring Harness Included: Yes

Extended Information:

• Country of Origin: US
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 27.75 x 24 x 10.25 inches
• Weight: 47 POUNDS
