EFI SYSTEM

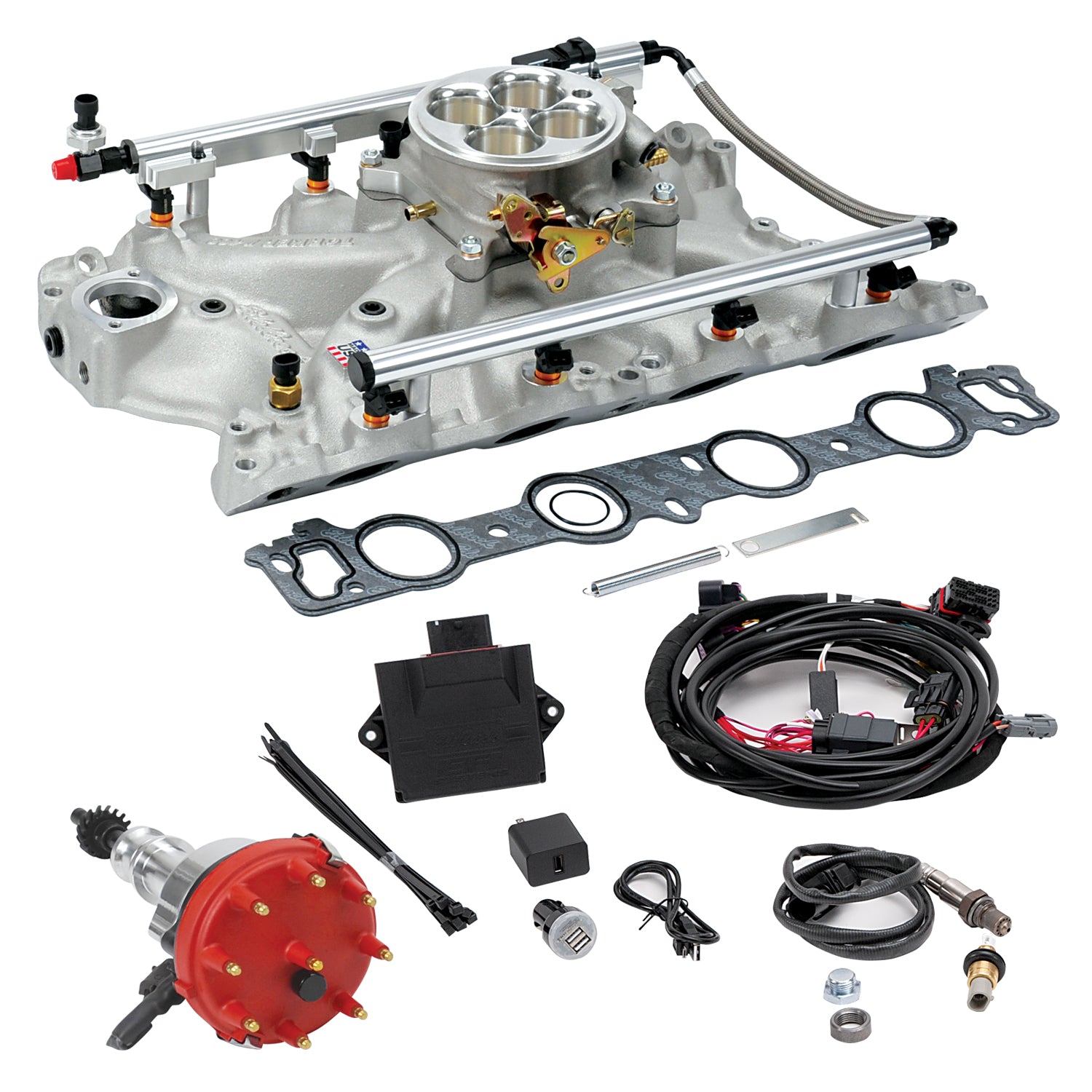

The Edelbrock Pro-Flo 4 EFI Kit Without Tuner #356800 for Ford big-block 429-460 engines is a fully sequential multi-port injection system designed with a fuel injector strategically positioned in each runner of the intake manifold to deliver the best fuel atomization and most even distribution to each cylinder. This system features the high-performance Super Victor single-plane intake manifold that comes preassembled with high-flow injectors, fuel rails and 4150-flange throttle body. All supporting sensors, wire harnesses and ECU are included along with a full-color installation manual. The Super Victor EFI manifold is designed with a larger cross-sectional area in the plenum with longer runners for high-horsepower and/or large cubic-inch applications. This kit uses 42 Lb/Hr injectors and is rated for 675 horsepower at 58 PSI of fuel pressure. This kit does not include the Android-based tablet with E-Tuner app. For the complete system with tuner, see kit #35680.

• Fully sequential multi-port injection system
• Super Victor-style single-plane manifold preassembled with high-flow injectors, fuel rails and throttle body
• Includes EFI distributor, all supporting sensors, wire harnesses and compact ECU

Vehicle Specific

• Ford:Big-Block:429 (7.0L )-460 (7.5L)

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347890255
• Bore Diameter: 1.75
• Distributor Cap Included: Yes
• Finish: Satin
• Flange Type: 4150
• Fuel Injector Type: 42 lb/hr
• Fuel Pressure Port: 1/8-27 NPT
• Gasket Or Seal Included: Yes
• Idle Air Control Motor Included: Yes
• Manifold Height: 4.25
• Maximum Horsepower: 675
• Quantity: Kit
• RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• System Type: Traditional 4150-Style Kit
• Throttle Body Type: 4 Barrel
• Wire Harness Included: Yes
• Wiring Harness Included: Yes

Extended Information:

• Country of Origin: US
• Emissions : EPA Eligible
• Life Cycle Status: Obsolete

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 29.25 x 24.125 x 10.375 inches
• Weight: 47 POUNDS
