Pro-Flo 4 EFI Traditional 4150-Style Kit #35680 For BB Ford 429-460

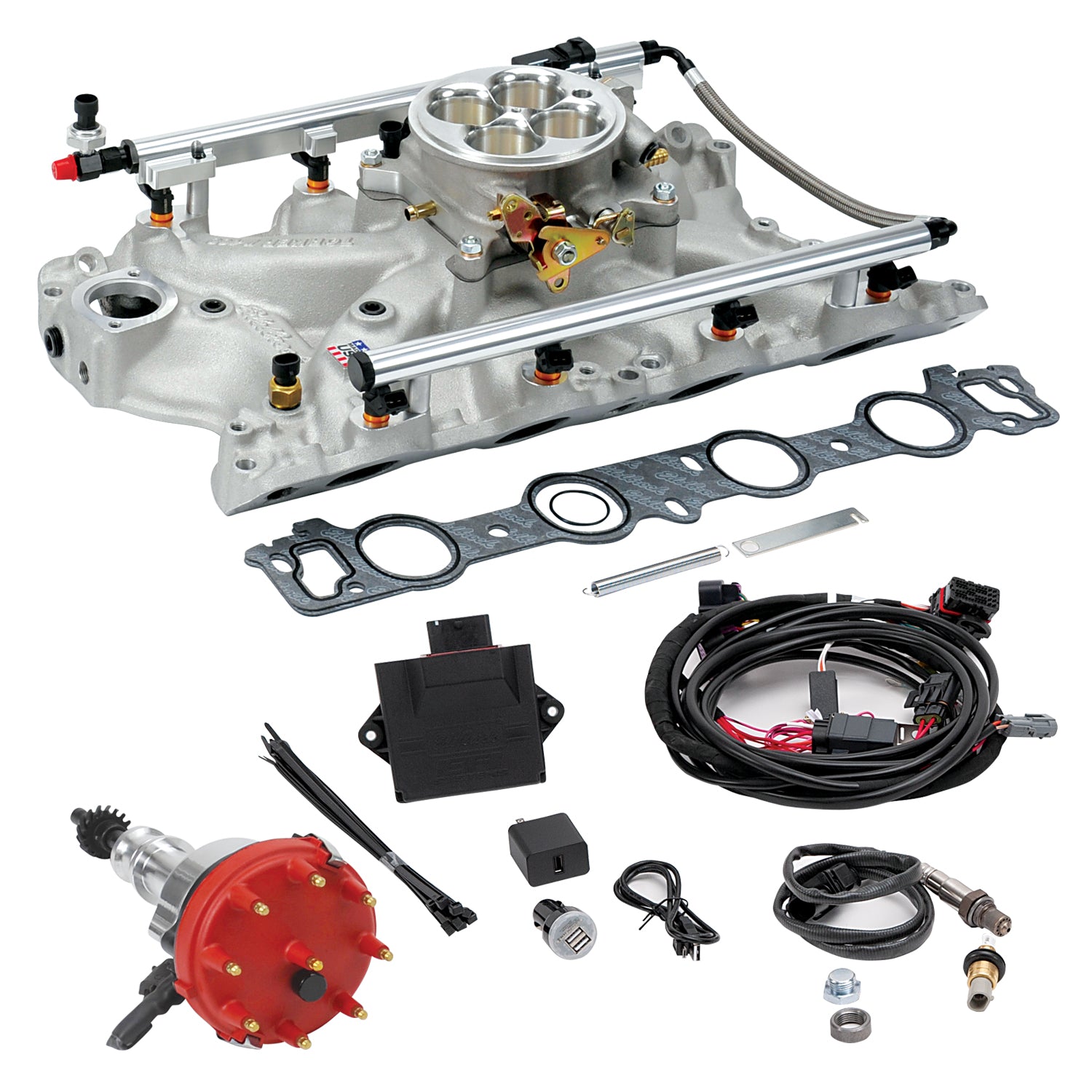

The Edelbrock Pro-Flo 4 EFI Kit #35680 for Ford big-block 429-460 engines is a fully sequential multi-port injection system designed with a fuel injector strategically positioned in each runner of the intake manifold to deliver the best fuel atomization and most even distribution to each cylinder. This system features the high-performance Super Victor single-plane intake manifold that comes preassembled with high-flow injectors, fuel rails and 4150-flange throttle body. All supporting sensors, wire harnesses and ECU are included along with a full-color installation manual. The Super Victor EFI manifold is designed with a larger cross-sectional area in the plenum with longer runners for high-horsepower and/or large cubic-inch applications. This kit uses 42 Lb/Hr injectors and is rated for 675 horsepower at 58 PSI of fuel pressure. The exclusive Edelbrock E-Tuner 4 app is Free and Available for Android and IOS based smart phone or tablet. Vehicle Specific

• Ford:Big-Block:429 (7.0L )-460 (7.5L)

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347356805
• Bore Diameter: 1.75
• Distributor Cap Included: Yes
• Finish: Satin
• Flange Type: 4150
• Fuel Injector Type: 42 lb/hr
• Fuel Pressure Port: 1/8-27 NPT
• Gasket Or Seal Included: Yes
• Idle Air Control Motor Included: Yes
• Manifold Height: 4.25
• Maximum Horsepower: 675
• Quantity: Kit
• RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• System Type: Traditional 4150-Style Kit
• Throttle Body Type: 4 Barrel
• Wire Harness Included: Yes
• Wiring Harness Included: Yes

Extended Information:

• Country of Origin: US
• Emissions : EPA Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 27.75 x 24 x 10.25 inches
• Weight: 47 POUNDS
