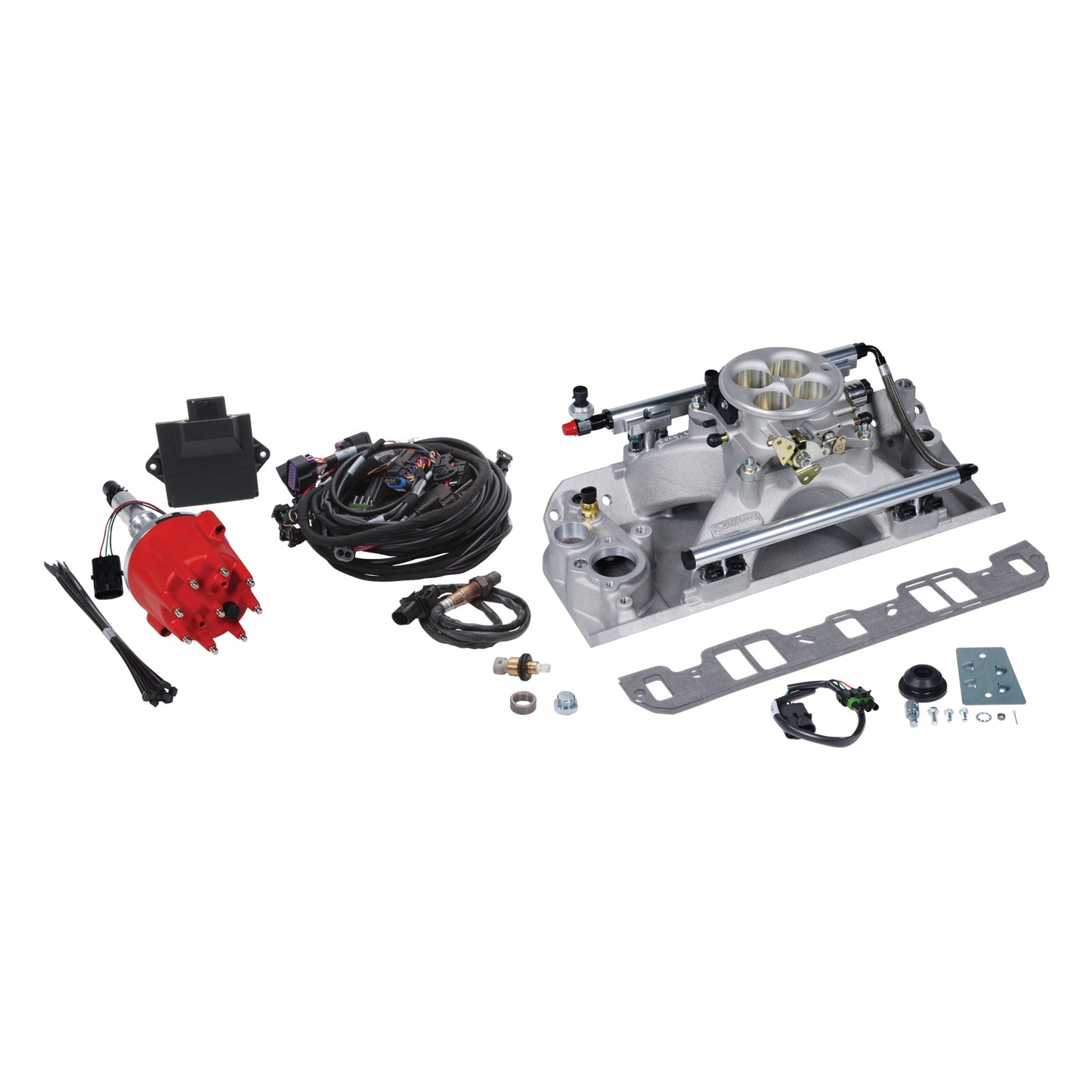

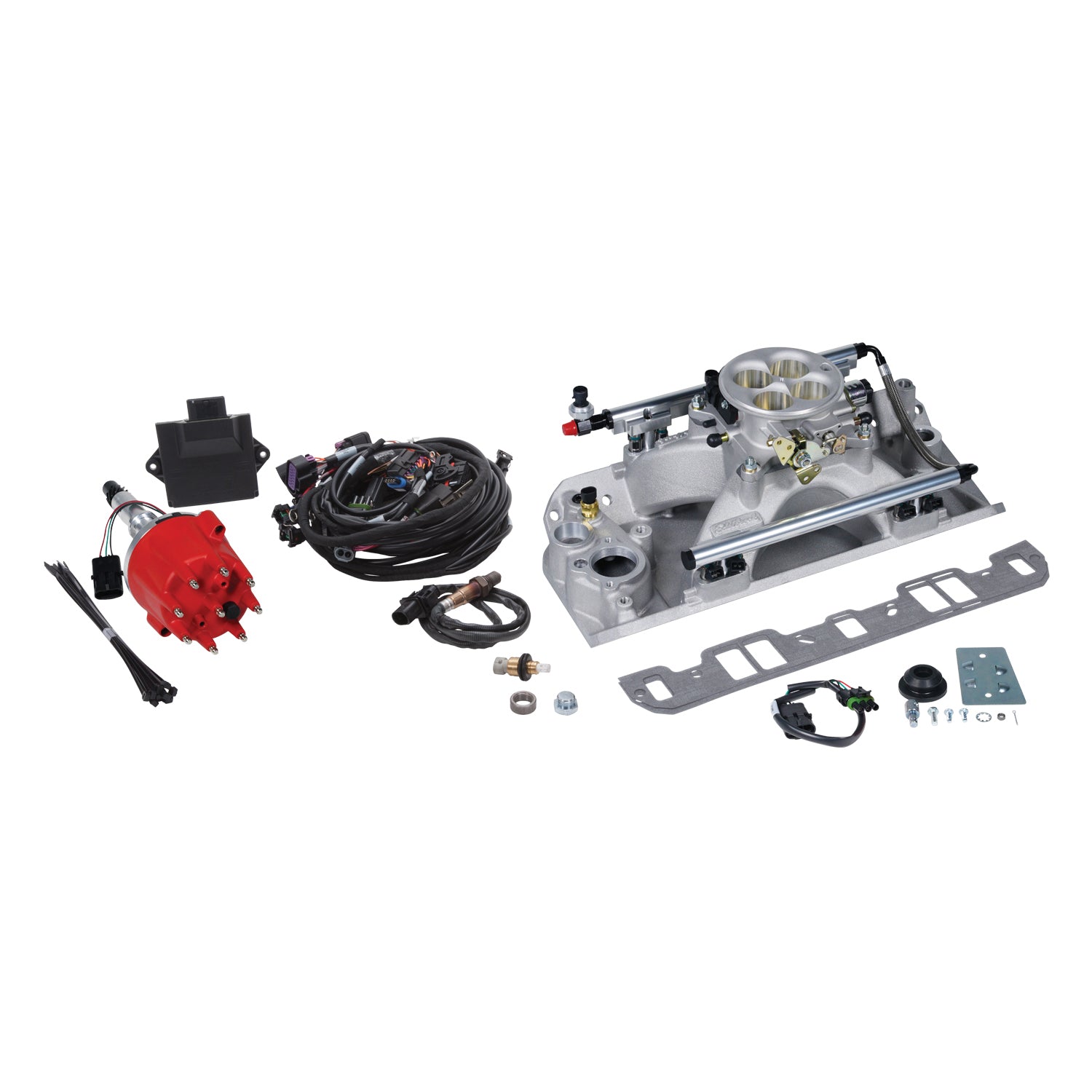

Pro-Flo 4 EFI Traditional 4150-Style Kit #35650 For 70-91 AMC 304 360 390 401

The Edelbrock Pro-Flo 4 EFI Kit #356500 W/O Tablet for 1970-1991 AMC 304, 360, 390, 401 CID engines is a fully sequential multi-port injection system designed with a fuel injector strategically positioned in each runner of the intake manifold to deliver the best fuel atomization and most even distribution to each cylinder. This system features the high-performance Victor Jr.-style single-plane intake manifold that comes preassembled with high-flow injectors, fuel rails and 4150-flange throttle body. All supporting sensors are included along with distributor, wire harnesses, ECU and Android-based tablet with E-Tuner Calibration app pre-installed. The Victor manifold is designed with a larger cross-sectional area in the plenum and larger runners for high-horsepower and/or large cubic-inch applications. This kit uses 35 lb/hr injectors and is rated for 550 horsepower at 58 PSI of fuel pressure. Calibration of the Pro-Flo 4 is a simple process with a Setup Wizard providing guidance through the E-Tuner's initial programming. Once provided with basic information such as type of engine, cubic inches, firing order, and cam profile, the E-Tuner then selects the most appropriate base calibration. Once the base calibration is set, the self-learning E-Tuner takes over to continually maximize the fuel map for your specific engine configuration, even compensating for changes in altitude and weather. The E-Tuner provides more advanced tuning options that allow precise control over cold starts and acceleration while retaining the simplicity that Pro-Flo systems are known for. No laptop tuning is required. Vehicle Specific

• 1970-1991 AMC 304, 360, 390, 401 CID engines

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347890286
• Bore Diameter: 1.75
• Distributor Cap Included: Yes
• Finish: Satin
• Flange Type: 4150
• Fuel Injector Type: 35 lb/hr
• Fuel Pressure Port: 1/8-27 NPT
• Gasket Or Seal Included: Yes
• Idle Air Control Motor Included: Yes
• Manifold Height: 5.74
• Maximum Horsepower: 500 @ 43 psi/550 @ 58 psi
• Quantity: Kit
• RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• System Type: Traditional 4150-Style Kit
• Wire Harness Included: Yes
• Wiring Harness Included: Yes

Extended Information:

• Country of Origin: US
• Emissions : 3

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 30 x 25 x 11 inches
• Weight: 36.6 POUNDS
