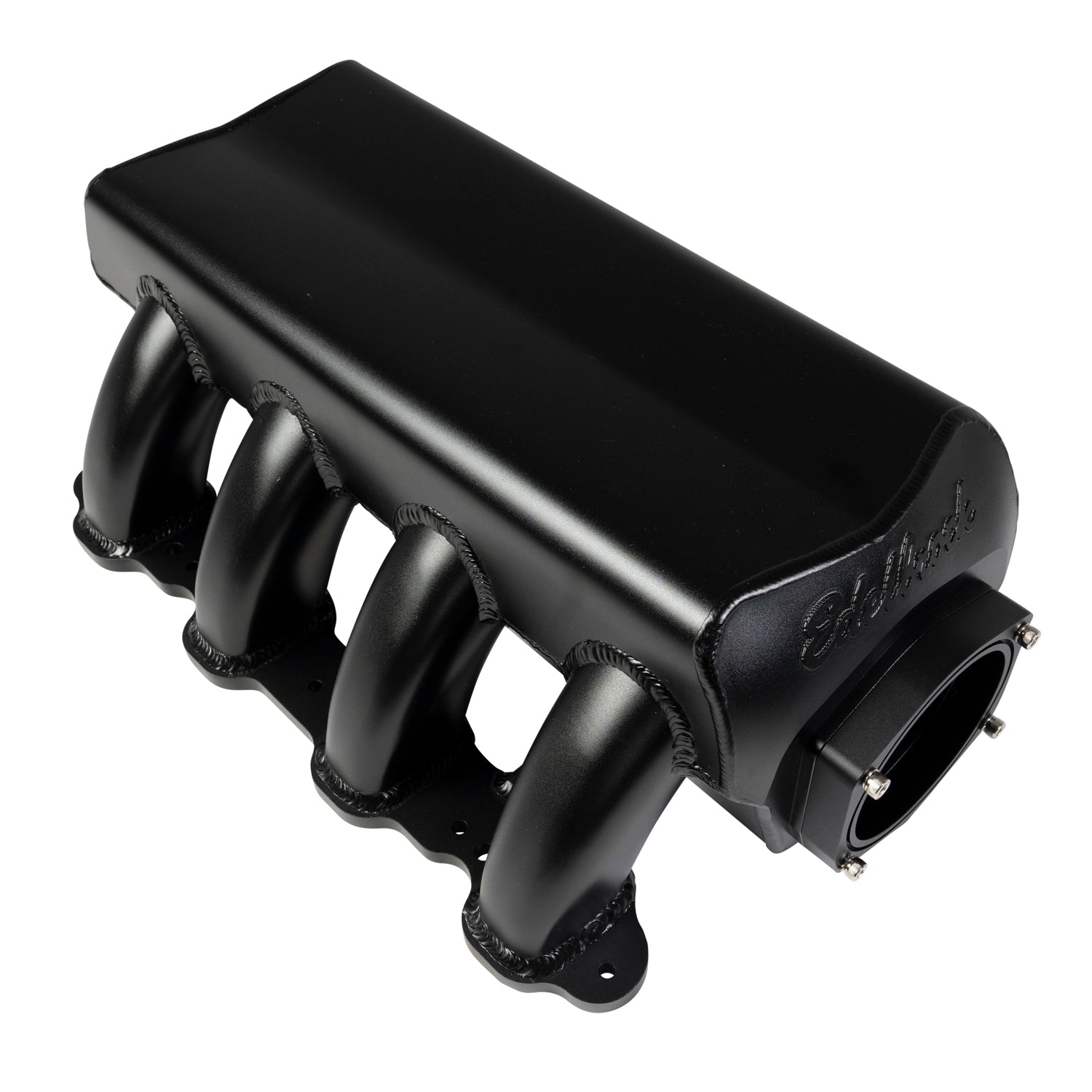

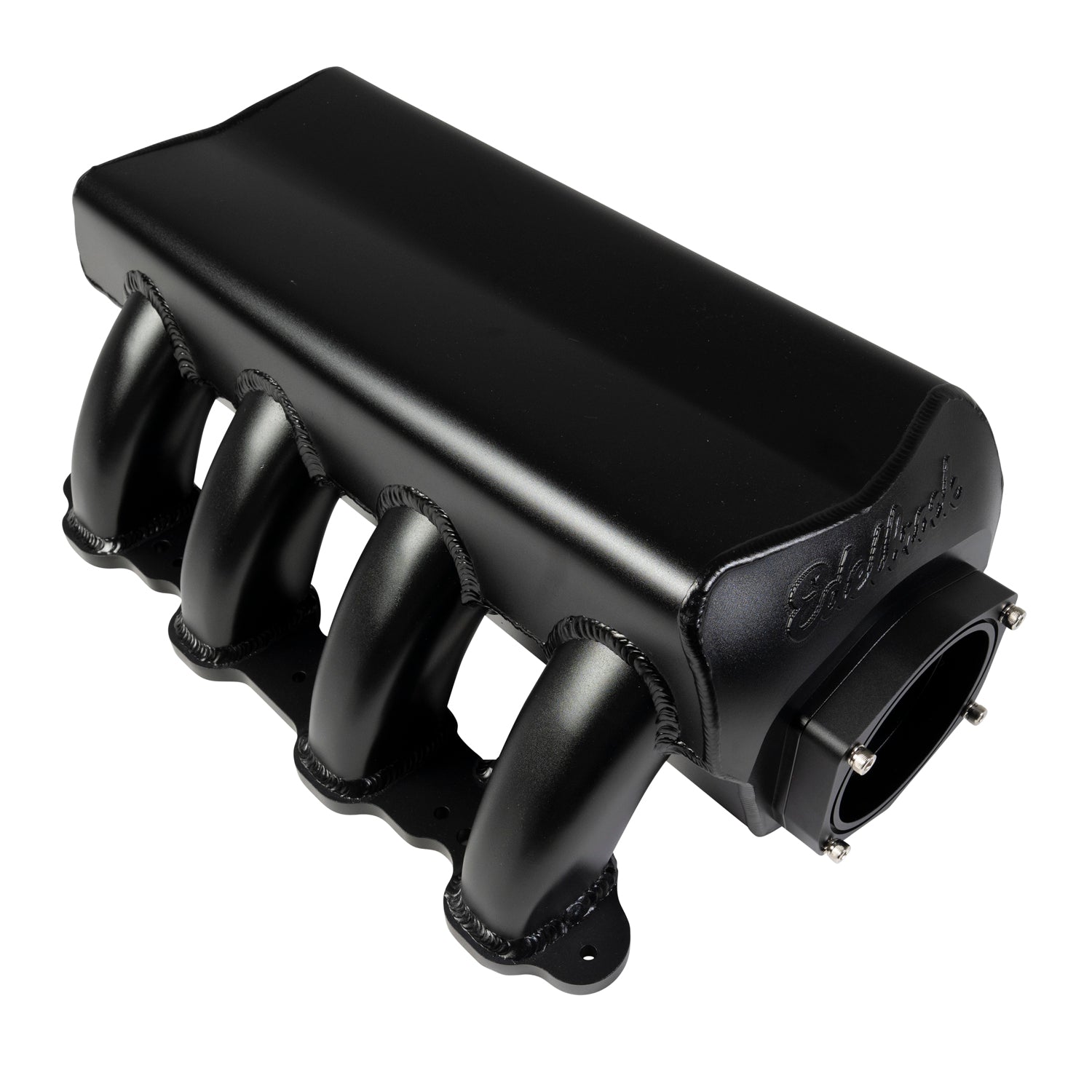

Edelbrock XTS Intake Manifold For Ford Godzilla 7.3L Engines

Edelbrock introduces the all-new XTS(TM) Manifold for the Ford 7.3-liter Godzilla Engine. This manifold features shorter-than-stock tapered runners tuned for high-RPM gains in engine swap applications. Finished in a highly attractive black powder-coat finish, the XTS is designed of lightweight, durable sheet metal. The flanges are of a billet construction for strength and consistent sealing with the heads. A horizontal throttle-body mount solves one of the most common swap fitment issues of intake air routing. All standard vacuum take-off ports are found on the rear of the manifold, and it comes complete with the mounting and vacuum take-off hardware. Team up the XTS manifold (P/N 7483) with a FAST 102mm throttle body (P/N 54106) and COMP Stage 3 camshaft (P/N 405-20-17) to create a 637 HP beast ready to swap into your favorite ride.

• Horizontal throttle body positioning makes inlet plumbing engine swap vehicles very easy.
• Short tapered runners provide significant high rpm gains, especially when matched with our Comp Cams Stage 3 Godzilla camshaft.
• Two 1/8 and two 1/4 NPT bosses for extra vacuum take-off points.

Vehicle Specific

• Ford 7.3L pushrod V8 for engine swap and crate engine applications

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347074839
• Aftermarket Fuel Rail Required: No
• Basic Operating RPM Range: 2500-7000
• Color: Black
• Cylinder Head Configuration: Stock
• Fuel Rail Included: No
• Injection Style: Direct
• Injectors Included: No
• Material: Aluminum
• Runners Removable: No
• Supplemental Boss Quantity: None
• Supplemental Bosses Cast-In: No
• Throttle Body Bore Size: 102
• Throttle Body Included: No
• Vehicle Model: Ford

Extended Information:

• Country of Origin: CN
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 10.875 x 23.625 x 17.375 inches
• Weight: 20 POUNDS
