Edelbrock Victor LS Series 90mm Throttle Body Satin

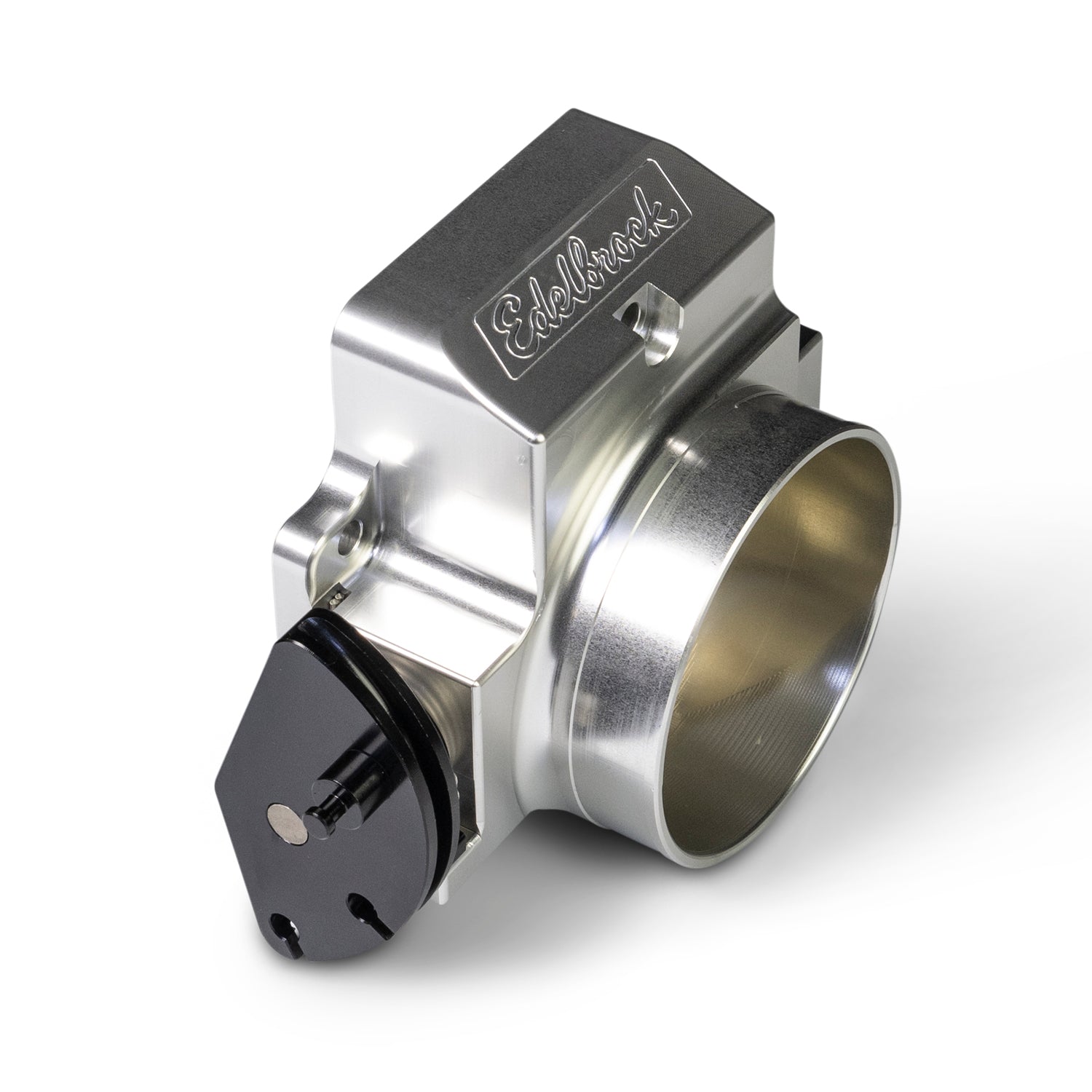

Constructed from billet aluminum, the new Edelbrock 90mm Victor Series Pro-Flo XT(TM) Throttle Body, complete with TPS and IAC, maximizes performance upgrades on all Pro-Flo XT, EFI Victor Elbow, and Gen III and Gen IV engines with cable-driven throttle bodies. With bolt patterns for both LS generations, these enlarged single-bore throttle bodies feature a progressive throttle linkage and parabolic bore design for increased power and enhanced low-speed drivability. A thicker throttle blade eliminates deflection for boosted applications, while a beefed-up linkage and dual-spring mechanism ensure safety and total throttle control. Available in either black (#39703) or satin (#3970) finishes to look great in any engine bay!

• Cable driven. Enlarged bore and progressive throttle linkage allowing for increased airflow and enhanced low-speed drivability. Provisions for either LS1 or LS2 mounting bolt patterns.
• Features a double return spring providing solid throttle control and safe functionality. High quality CNC Billet Aluminum construction

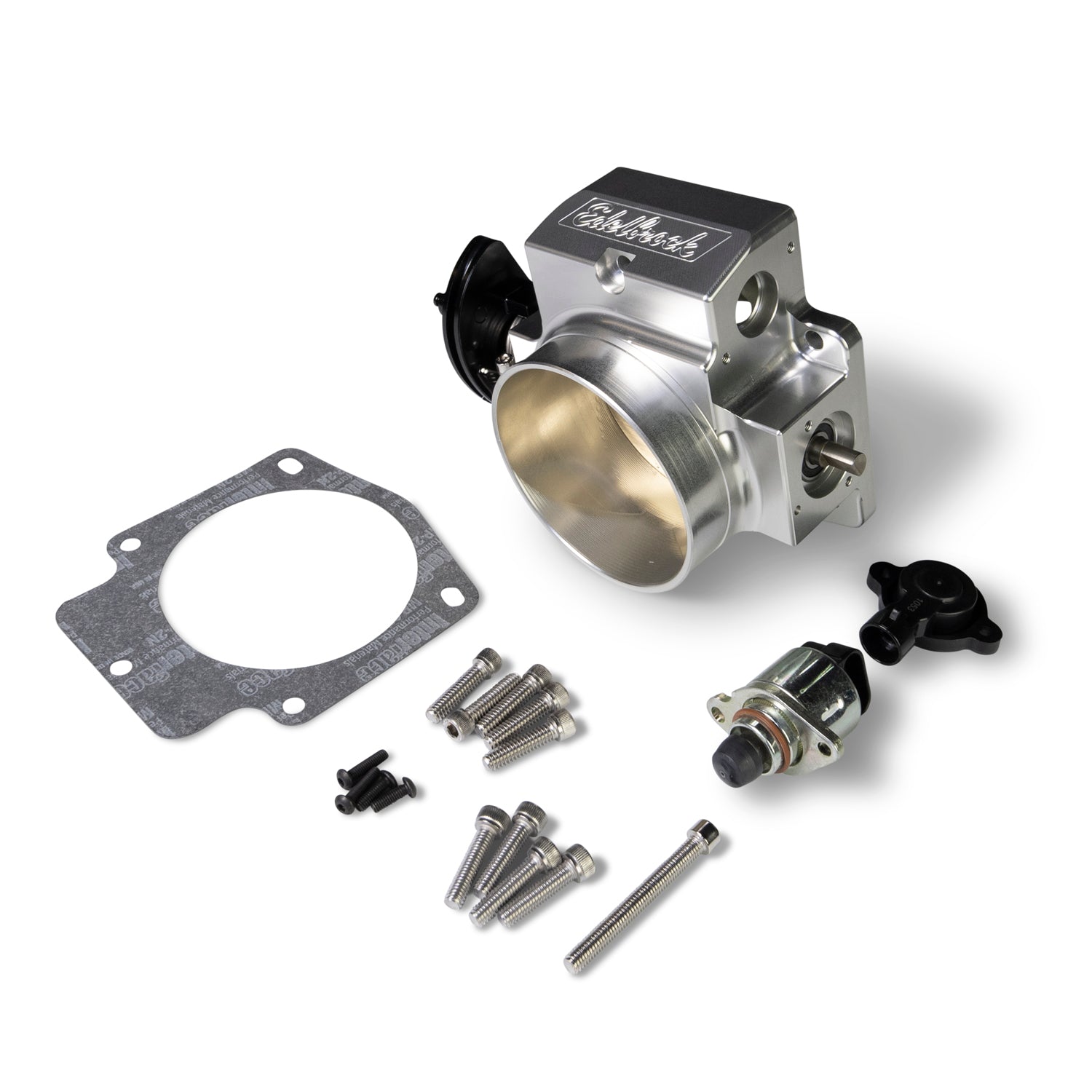

• Includes GM Factory Throttle Position Sensor, Inlet Air Control Valve and Throttle Body Mounting Hardware and Gasket

Vehicle Specific

• Edelbrock XT Manifolds, Factory Chevrolet Manifolds, Fabricated Manifolds or any Plenum Intakes or Elbows implementing a LS1 or LS2 style mounting flange requiring a cable actuated Throttle Body.

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347039708
• Airflow Rate: 1000cfm
• Bore Diameter: 90mm
• Fuel Injectors Included: No
• Gasket Or Seal Included: Yes
• Hardware Included: Yes
• Idle Air Control Motor Included: Yes
• Throttle Body Actuation: Cable
• Throttle Body Finish: Clear Anodized
• Throttle Body Material: Billet Aluminum
• Throttle Body Type: Multi Port Injection
• Throttle Position Sensor Included: Yes
• Venturi Quantity: Single

Extended Information:

• Country of Origin: CN
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 7.5 x 5.5 x 3 inches
• Weight: 2.8 POUNDS
