Edelbrock Twin-Force Stg 2-3 Upgrade Kit 17-22 Ford F150/Raptor 3.5L HO EcoBoost

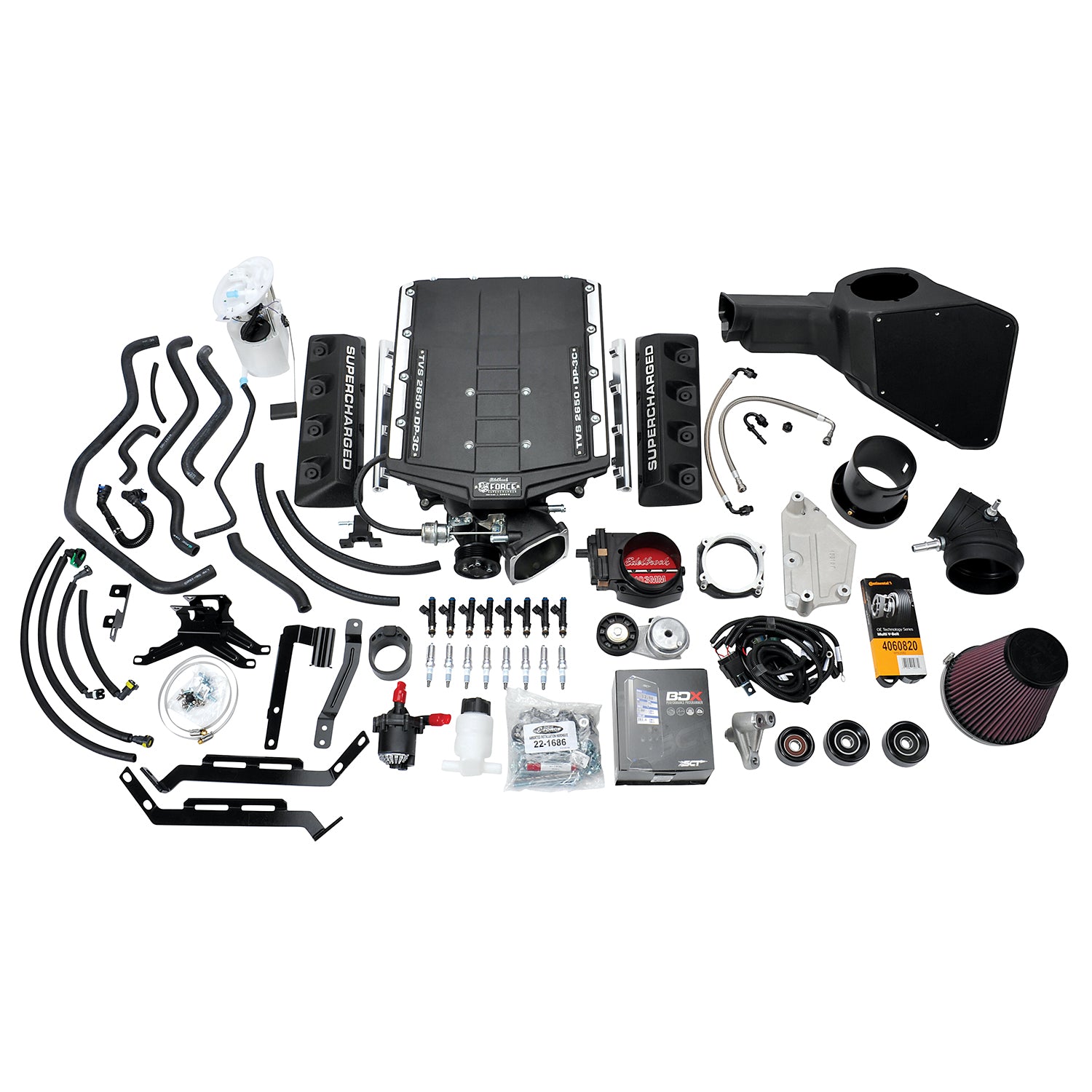

Take your 2015-17 Mustang to the next level with the Edelbrock Stage 2 Supercharger System #15839 for the Gen 2 Ford 5.0L Coyote engine. This potent new kit adds huge gains in horsepower and torque over Stage 1 performance, all while maintaining emissions-legal status in all 50 states. At the heart of this system is the top-of-the-line R2650 TVS rotor assembly housed with an integrated high-capacity DP3C (dual-pass, three-core) air-to-water intercooler that lowers incoming air temperatures and increases power potential. To support the additional Stage 2 power increase, the fuel system components are upgraded to include larger 78 lb/hr direct-port injectors along with a drop-in 400 LPH fuel pump assembly with internal check valve. A dramatic increase in airflow over the Stage 1 kit comes from a new 103mm billet aluminum throttle body and high-flow air intake system with 113mm MAF housing. Like our Stage 1 kit for the Mustang, the Stage 2 System installs cleanly with no modifications to the hood or body and comes complete with all hardware, hoses and a handy full-color step-by-step instruction manual to streamline the installation process. This kit is backed by Edelbrock's industry-leading 3-Year/36,000-mile Powertrain Warranty.

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347158393
• 9040: D-215-107
• Air Filter Included: Yes
• Calibration: Yes
• Center Housing Cooling Type: Intercooler
• Finish: Black Powder Coated
• Fuel Injector Type: 78
• Fuel Pump Included: Yes
• Gasket Or Seal Included: Yes
• Harmonic Balancer Diameter: 6.67
• Hose Included: Yes
• Housing Material: Cast Aluminum
• Internal Step Up: Yes
• Maximum Boost Pressure: 15.5
• Maximum Horsepower: 610RW
• Maximum Pressure Reading: 15.5
• Maximum Torque: 499RW
• Mounting Bracket Included: Yes
• Mounting Hardware Included: Yes
• Oil Capacity: 150
• Outside Pulley Diameter: 3.25
• Pulley Belt Width: 6-Rib
• Quantity: Kit
• RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• Rotor Type: Eaton TVS 2650
• Spark Plugs Included: Yes
• System Type: Stage 2 - Street/Strip System
• Universal Or Specific Fit: Specific
• Vehicle Model: Mustang

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 44 x 44 x 26 inches
• Weight: 178 POUNDS
