Edelbrock Twin-Force Stg 2-3 Upgrade Kit 17-22 Ford F150/Raptor 3.5L HO EcoBoost

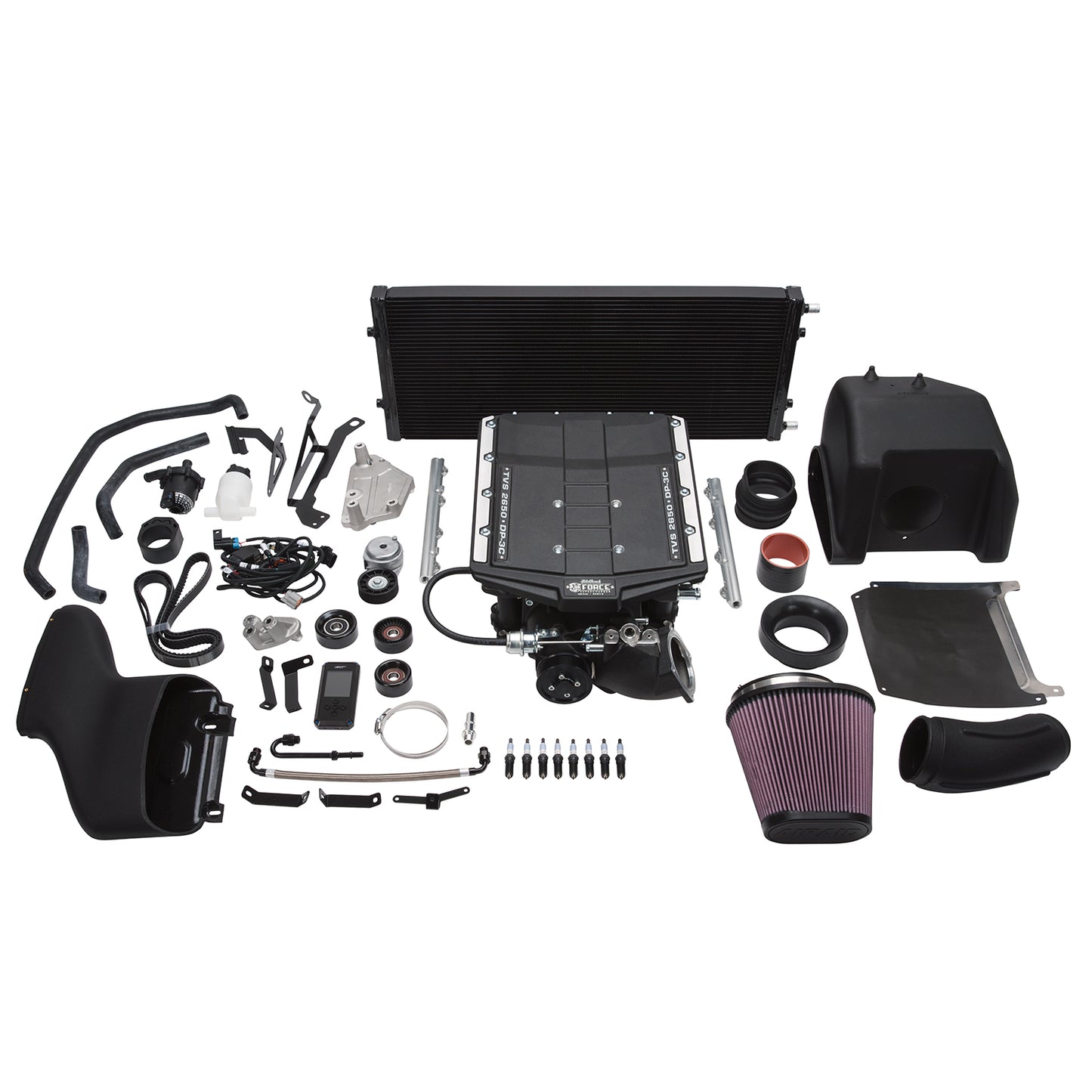

The Edelbrock Supercharger System part #158360 is designed for use on a 2018 Ford F150 with Gen III DI/PI 5.0L Coyote engine and 10-Speed automatic transmission. The heart of this system is the high-efficiency Eaton Gen VI 2650 TVS rotating assembly with a four-lobe design with 170 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. The system also features an integrated bypass valve to help eliminate parasitic loss under light throttle, improving fuel mileage potential. The front drive, front inlet configuration results in a shorter, less restrictive intake path for improved airflow without the need for a power-robbing jackshaft. Keeping the air cool is a high-capacity, Dual-Pass 3-Core (DP3C) air-to-water intercooler and duel pass front-mount heat exchanger. The Edelbrock #158360 system is 50-state emissions legal and provides the best combination of performance and reliability for your F150 whether you plan to tow a trailer, haul heavy loads, or you just want to feel your F-150 come to life! HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program. Which can be requested by contacting the Edelbrock calibration team at calibration@edelbrock.com. Tunes for 91 and 93 octane fuels are available upon request. This system will produce approximately 601whp 468wtq using 93 octane. Vehicle Specific

• Ford:Coyote 4V:302 (5.0L)

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347158362
• 9040: D-215-104
• Calibration: Yes
• Center Housing Cooling Type: Intercooler
• Finish: Black Powder Coated
• Gasket Or Seal Included: Yes
• Harmonic Balancer Diameter: Stock
• Hose Included: Yes
• Housing Material: Cast Aluminum
• Internal Step Up: Yes
• Maximum Boost Pressure: 13
• Maximum Horsepower: 601RW
• Maximum Pressure Reading: 13
• Maximum Torque: 468RW
• Mounting Bracket Included: Yes
• Mounting Hardware Included: Yes
• Oil Capacity: 150
• Outside Pulley Diameter: 3.5
• Pulley Belt Width: 6-Rib
• Quantity: Kit
• RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• Rotor Type: Eaton TVS 2650
• System Type: Stage 1 - Street System
• Tensioner Included: Yes
• Universal Or Specific Fit: Specific
• Vehicle Model: F-150

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 40 x 48 x 23 inches
• Weight: 178 POUNDS
