Edelbrock Stg 2 Complete Supercharger #153880 18-21 Ford Mustang 5.0L W/O Tune

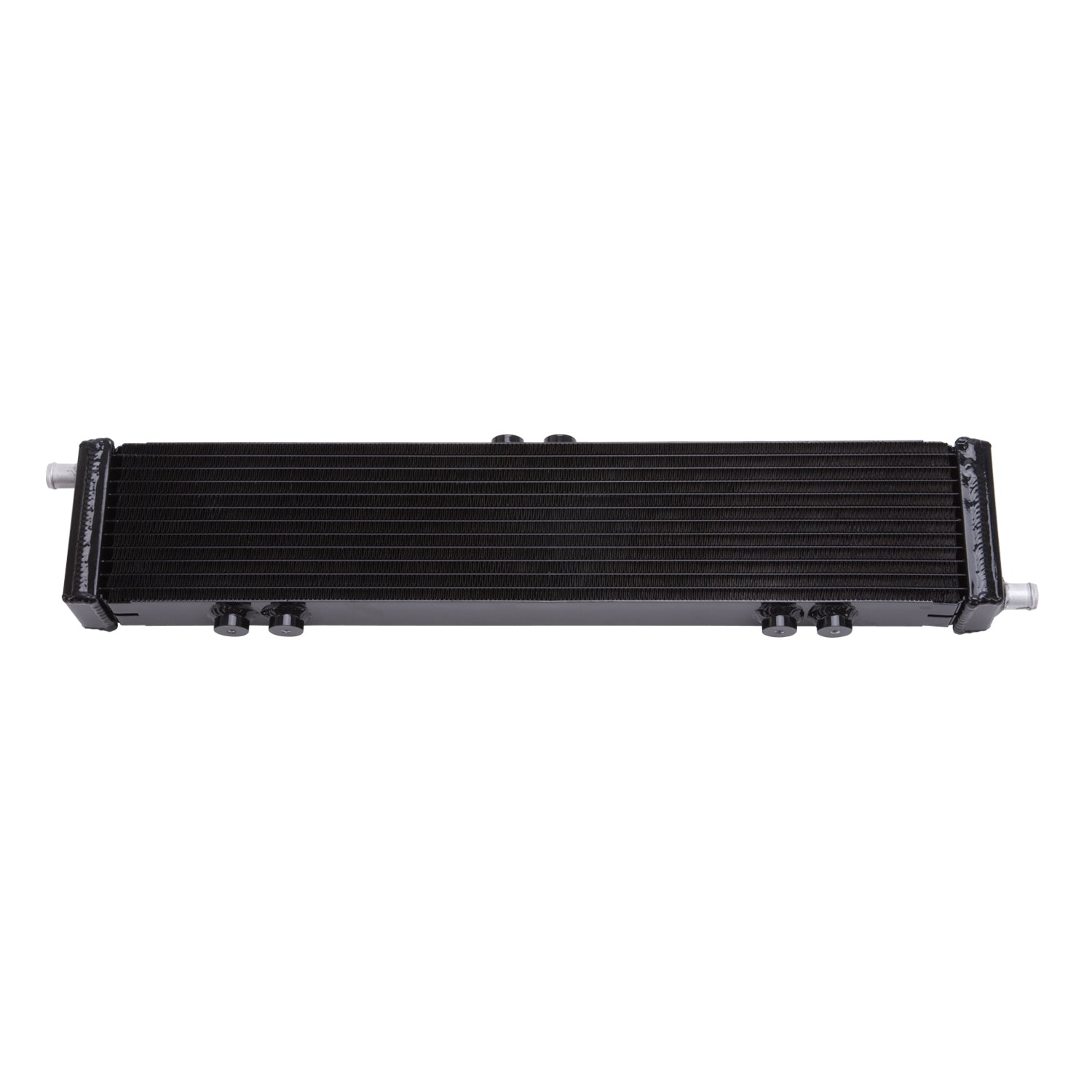

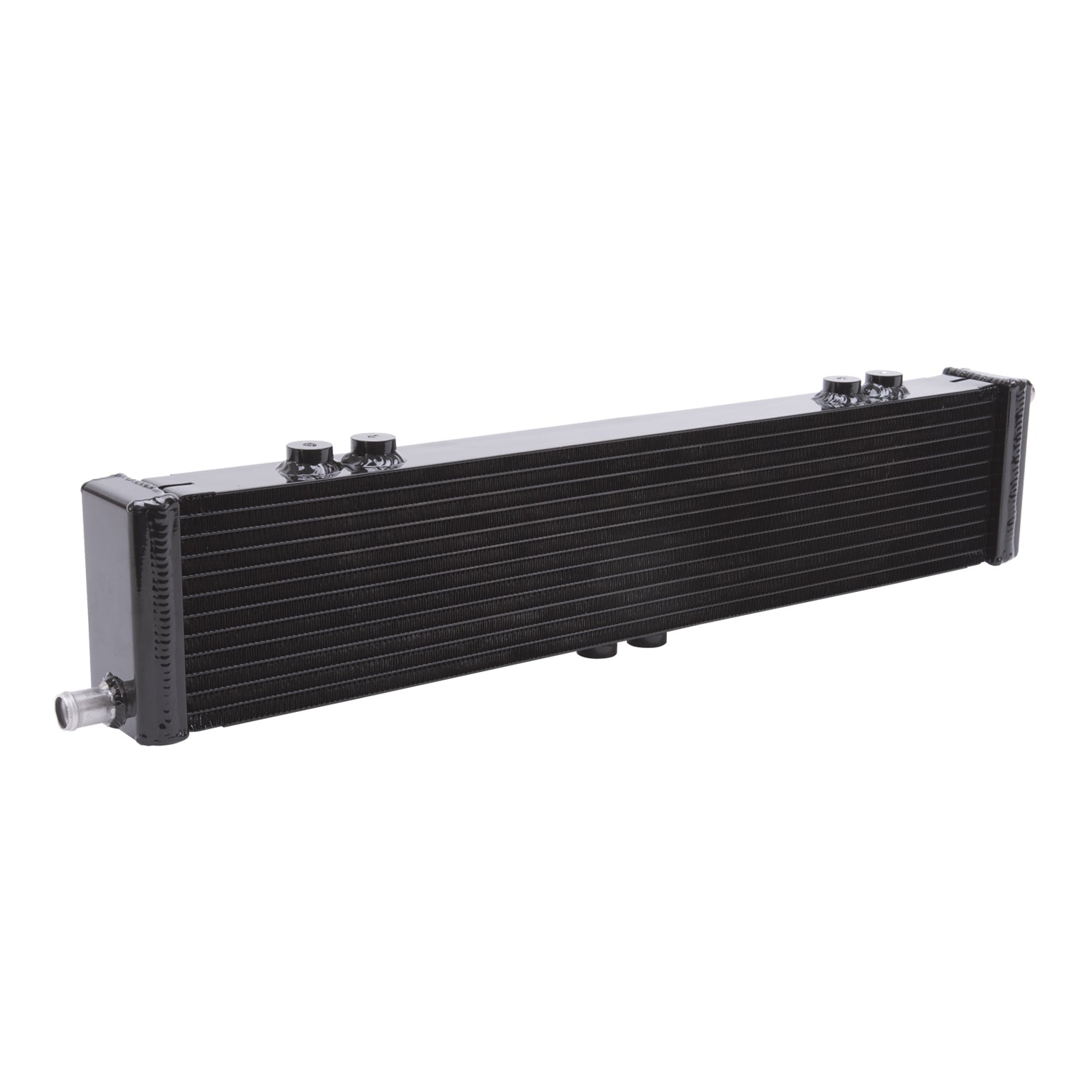

Edelbrock heat exchanger part #15406 is a single pass/two row design and delivers 22,000 btu/hr Includes a 3/4in. barbed inlet and outlet for plumbing, along with M6x1.0 threaded bungs for mounting. Heat exchanger part #15406 is a Single Pass/Two Row Universal Heat Exchanger with the following dimensions (26.5in. W x 5in. H x 2.62in. D) and 6 threaded bungs. Edelbrock offers a wide selection of Universal Heat Exchangers to work with the Edelbrock Universal or Enforcer Supercharger systems. Edelbrock heat exchangers offer reliability and durable construction for high Performance's street applications.

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347154067
• BTU Rating: 22000 btu/hr
• Construction: Single Pass
• Finish: Gloss Black Powder Coated
• Grade Type: Performance
• Inlet Port Outside Diameter: 0.75
• Inlet Port Quantity: 1
• Length: 26.58
• Material: Aluminum
• Mounting Hardware Included: No
• Mounting Hole Diameter: M6 x 1.0
• Mounting Hole Quantity: 6
• Outlet Port Outside Diameter: 0.75
• Outlet Port Quantity: 1
• Quantity: Sold Individually
• RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• Row Quantity: Two
• Thickness: 2.62
• Width: 5.2

Extended Information:

• Country of Origin: US
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.25 x 31.25 x 7 inches
• Weight: 9.4 POUNDS
