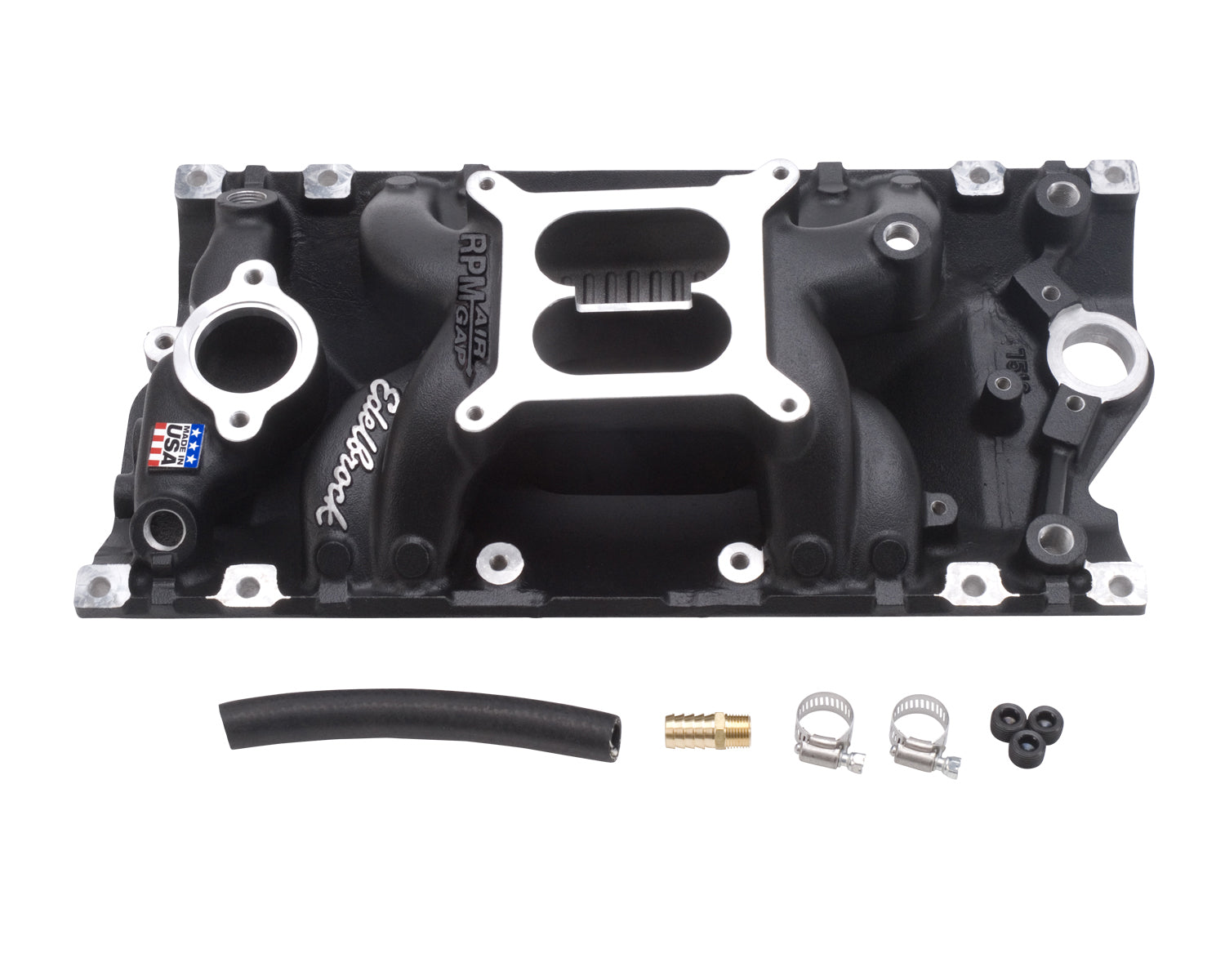

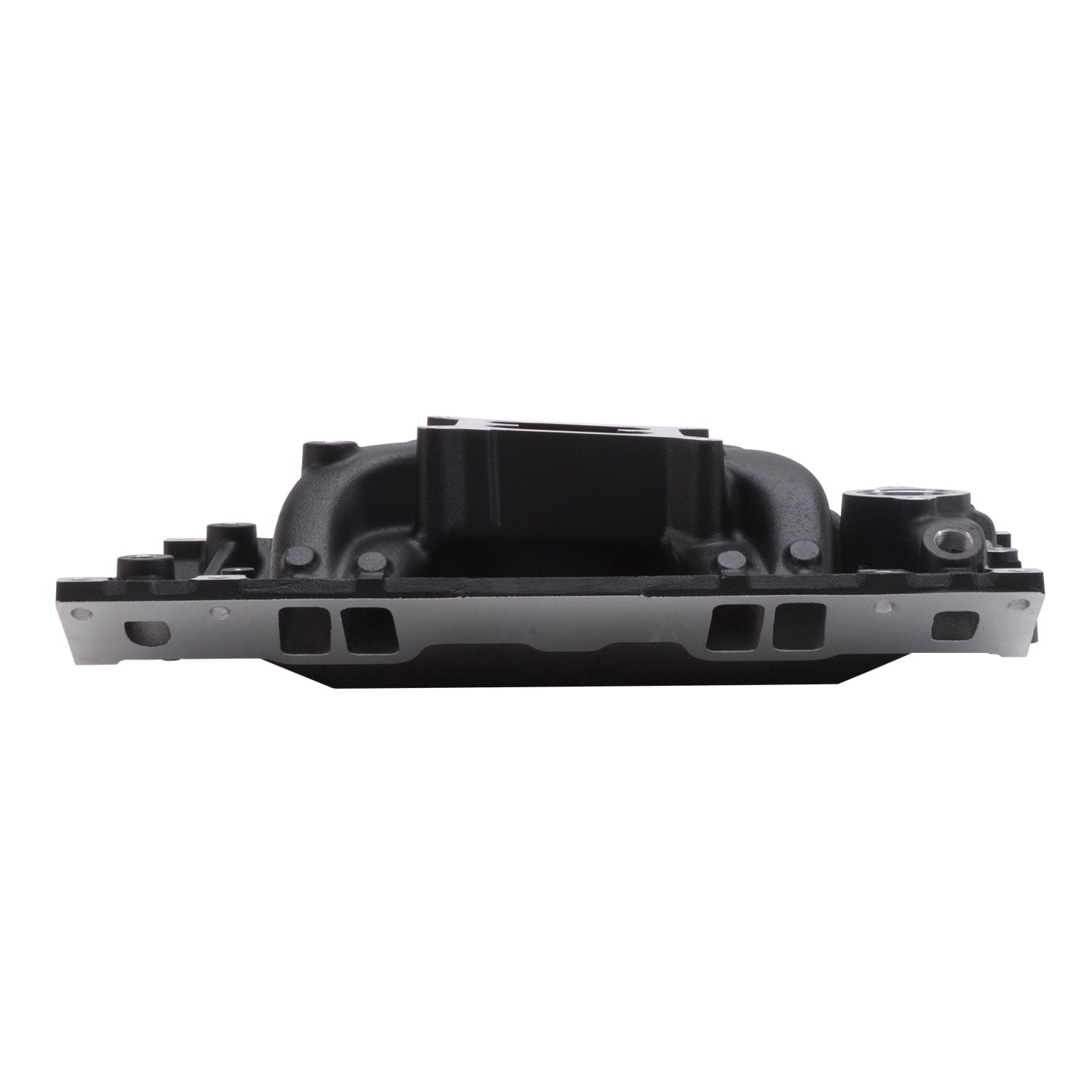

Performer RPM AIR-GAP Small Block Chevy Vortec Black Intake Manifold

Edelbrock part #75163 RPM Air-Gap intake manifold is designed for 262-400 c.i.d. Chevy V8's with 1996 and later Vortec (L31) cast iron or Edelbrock E-Tec aluminum heads. This intake manifold is based on the powerful Performer RPM Vortec #7116. The air-gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. An external water bypass boss is machined into the front of the water crossover for use on 1996 and later Vortec production engines. Includes rear water outlets, nitrous bosses, a temp sensor boss that clears all waternecks, two distributor clamp locations and a heater outlet boss that's angled for proper fit over the valve cover. Accepts 1976 and later alternator and air-conditioning brackets for street installations. For square-bore carbs. No provision for exhaust-heated chokes and no exhaust crossover. Will not fit under stock Corvette hood. This manifold offers a durable black power coated finish for long lasting protection and a distinctive look. Vehicle Specific

• Chevrolet:Small-Block Gen I Vortec:262 (4.3L)-400 (6.6L)

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347751631
• Basic Operating RPM Range: 1500-6500
• CNC Ported: No
• Center Maximum Height: 4.720
• EGR Port: No
• Finish: Black Powder Coated
• Flange Type: 4150
• Front Maximum Height: 4.200
• Gasket Or Seal Included: No
• Grade Type: Performance
• Material: Aluminum
• RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• Rear Maximum Height: 5.250
• Series: RPM Air-Gap
• Single Or Dual Plane Type: Dual
• Vehicle Model: Chevrolet

Extended Information:

• Country of Origin: US
• Emissions : EPA Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.625 x 14.75 x 7.5 inches
• Weight: 19.5 POUNDS
