Edelbrock Performer Intake Manifold For Small-Block Ford Chrome Plasma Finish

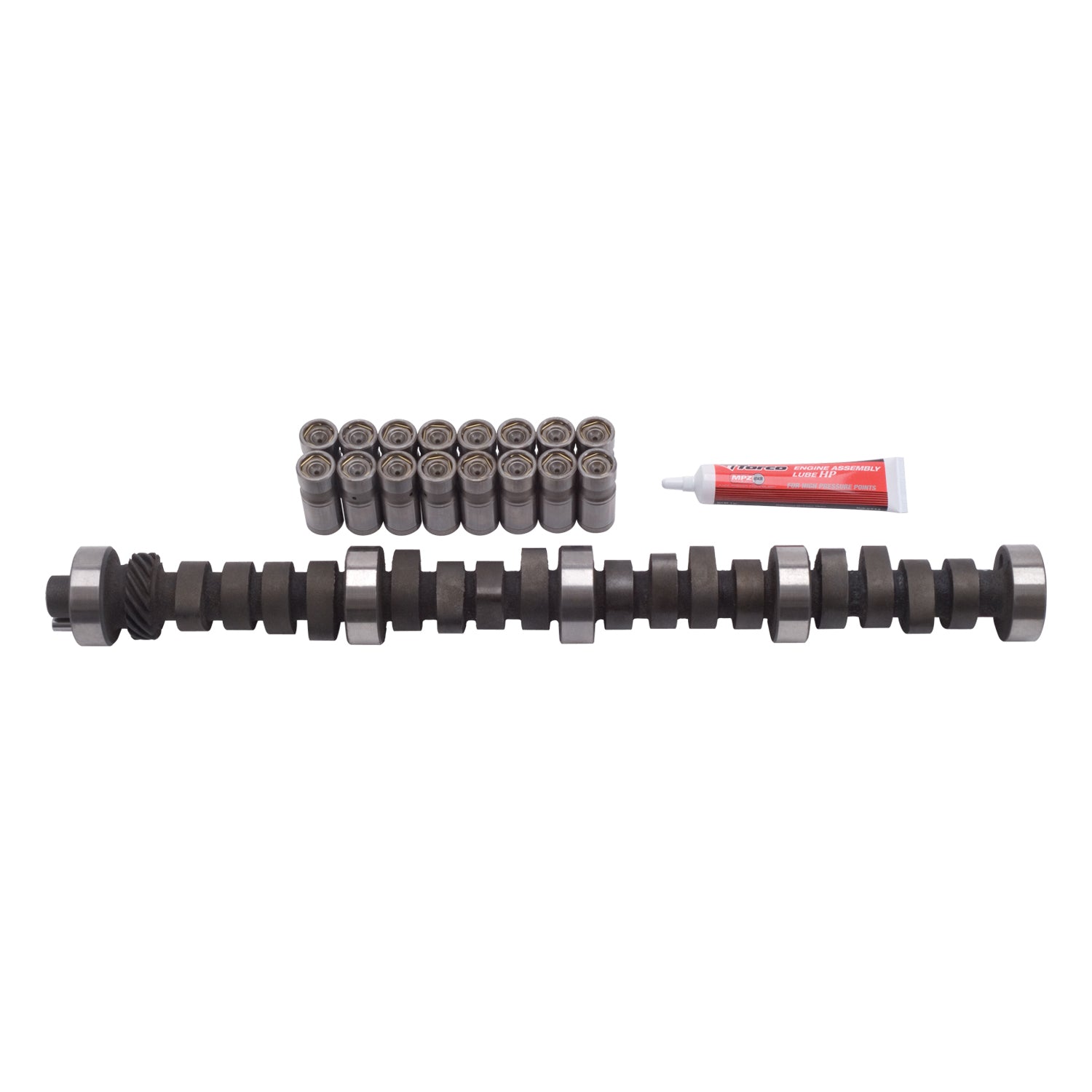

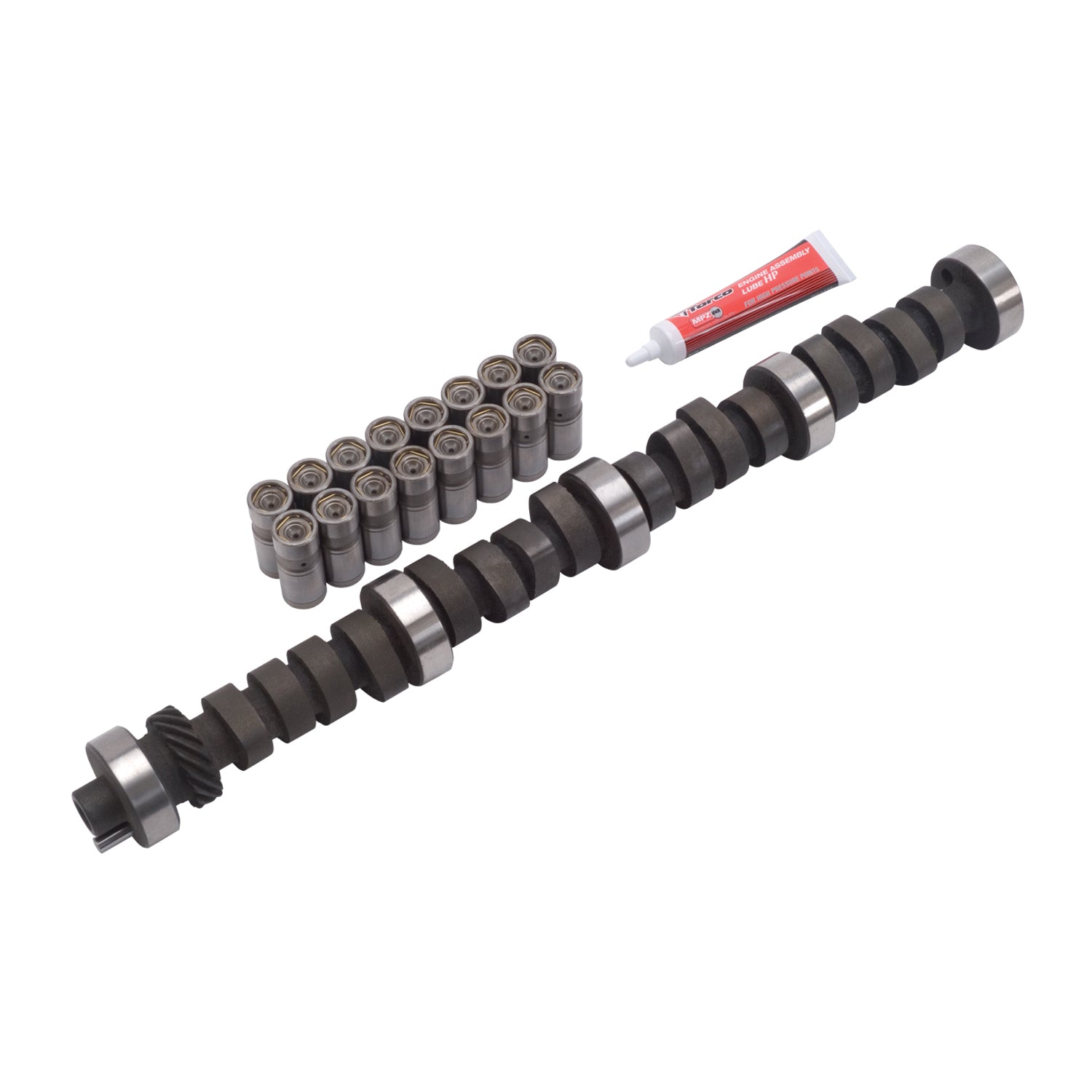

Edelbrock Performer-Plus Camshaft #2122 is designed for 289-302 Ford V8 engines and produces optimum torque from the low-end to the mid-range. Performer-Plus camshafts should be matched with Performer manifolds for vehicles operating from off-idle to 5500 rpm. The Performer-Plus #2122 is a smooth idling cam for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This cam produced 310HP and 260 Ft Lbs of Torque when paired with Performer 289 intake manifold #2121 and Performer cylinder heads #60329. Not for 1985 and later engines with roller lifters. Camshaft specifications: - Intake duration: 204 Degrees - Exhaust duration: 214 Degrees - Intake lift: .448" - Exhaust lift: .472" - Lobe separation: 112 Degree - Intake Center Line: 107 Degree - Vacuum: 16" Vehicle Specific

• Ford:Small-Block Windsor:289 (4.7L)/302 (5.0L)

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347021222
• Advertised Exhaust Duration: 280
• Advertised Intake Duration: 270
• Cam Type: Cast
• Computer Controlled Compatible: No
• Exhaust Duration at .050 inch Lift: 214
• Exhaust Valve Lift: 0.472
• Grade Type: Performance
• Intake Duration .050 Inch Lift: 214
• Intake Valve Lift: 0.448
• Lifter Materials: Hardened Steel
• Lifter Type: Hydraulic
• Lobe Separation: 112
• RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

Extended Information:

• Country of Origin: US
• Emissions : 2
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 27 x 8 x 3.6 inches
• Weight: 15 POUNDS
