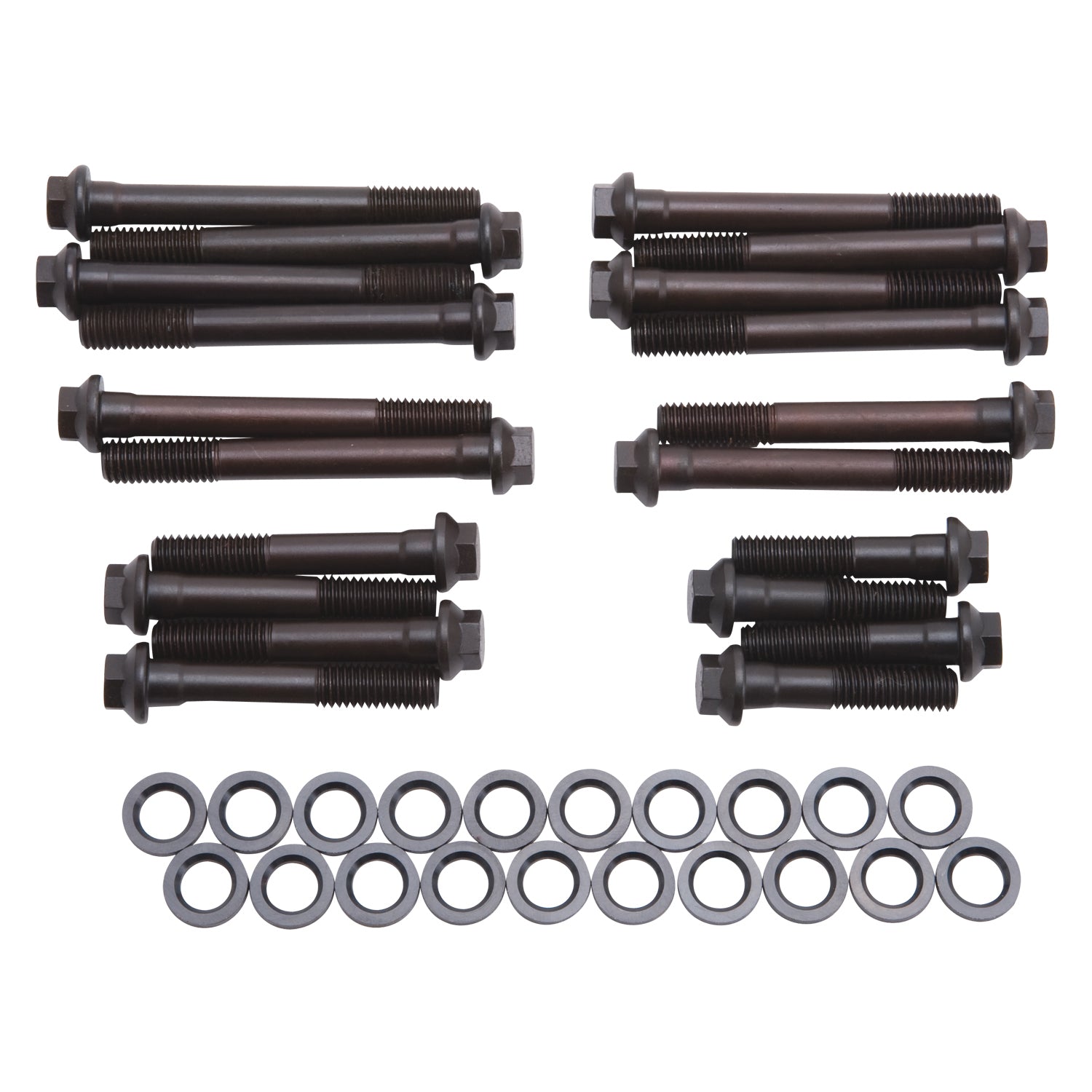

Edelbrock E-Series Cylinder Head Bolt Kit #85562 For Pontiac W/Edelbrock Heads

Edelbrock E-Series Cylinder Head Bolt Kit #85562 is designed for use on Pontiac engines with Edelbrock Performer and Performer RPM Cylinder Heads #6056-6058. Note that this head bolt kit is required to install these Edelbrock Pontiac heads. The 6056-6058 cylinder heads require a head bolt kit that is similar to that needed for a Ram-Air IV head, which is different from a standard D-port head. Several of the bolt boss heights have been increased to enhance the potential of the heads. E-Series bolts have a yield tensile strength of 190,000 PSI for strong and reliable loading. Bolt threads are rolled after heat-treating for superior form and strength, while a small hex head provides extra space for socket clearance in tight situations. E-Series Cylinder Head Bolts have a durable black oxide finish with sealer and come with the distinctive Edelbrock E stamped into the head.

• For use with Performer/Performer RPM heads for Pontiac
• Yield tensile strength of 190,000 PSI
• Heat treating with rolled threads for superior form and strength
• black-oxide finish with sealer
• Edelbrock E logo stamped on bolt head

Vehicle Specific

• Pontiac:-:326 (5.3L)-455 (7.5L)

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347855629
• Finish: Black Oxide
• Grade Type: Performance
• Head Drive Type: Hex
• Length: (4) 2.25 in, (4) 4.15 in, (2) 4.25 in, (2) 3.75 in, (4) 4.00 in, (4) 3.00
• Material: 8740 Chromoly
• Minimum Length: 2.25
• Quantity: Kit
• RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• Thread Diameter: 0.5
• Thread Type: Coarse
• Washers Included: Yes

Extended Information:

• Country of Origin: US
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 7 x 5 x 3 inches
• Weight: 4.6 POUNDS
