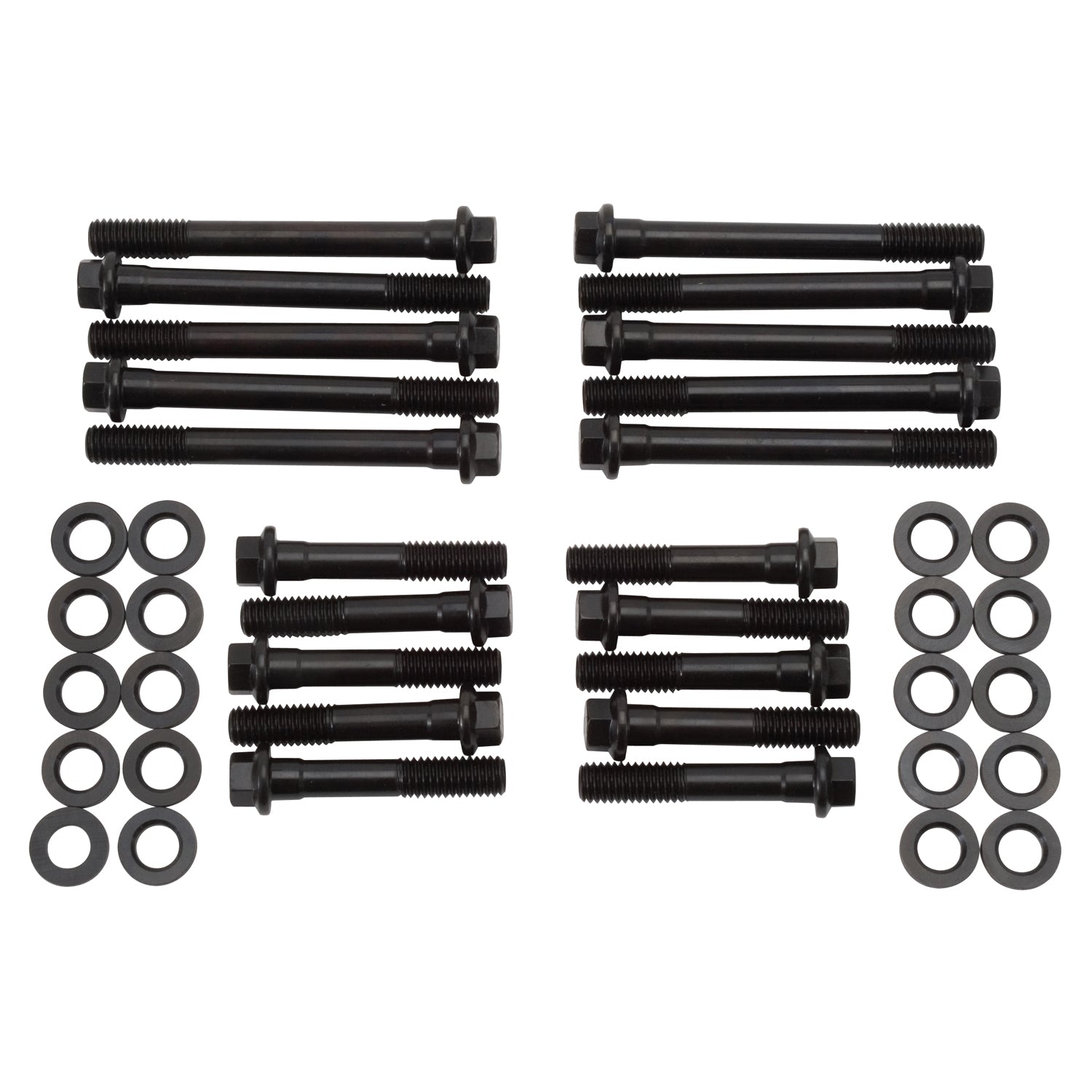

Edelbrock E-Series Cylinder Head Bolt Kit #85522 For Ford Small-block Engines

Edelbrock E-Series Cylinder Head Bolt Kit #85522 is a high-quality set of bolts for use on Ford 289-302 blocks with standard 7/16-inch head bolt bosses. This E-Series kit is a perfect choice when upgrading to Edelbrock Performer or Performer RPM Cylinder Heads. This kit includes step-washers for use with aftermarket aluminum heads using -inch head bolt holes. E-Series bolts have a yield tensile strength of 190,000 PSI for strong and reliable loading with generous filleting throughout to eliminate stress risers. Bolt threads are rolled after heat-treating for superior form and strength, while a small hex head provides extra space for socket clearance in tight situations. E-Series Cylinder Head Bolts have a durable black oxide finish with sealer and come with the distinctive Edelbrock E stamped into the head.

• For Ford 289-302 with aluminum heads
• Yield tensile strength of 190,000 PSI
• Heat treating with rolled threads for superior form and strength
• black-oxide finish with sealer
• Edelbrock E logo stamped on bolt head.

Vehicle Specific

• Ford:Small-Block:289 (4.7L)-302 (5.0L)

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347855223
• Finish: Black Oxide
• Grade Type: Performance
• Head Drive Type: Hex
• Length: (10) 2.50 in, (10) 4.00
• Material: 8740 Chromoly
• Minimum Length: 2.5
• Quantity: Kit
• RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• Thread Diameter: 0.4375
• Thread Type: Coarse
• Washers Included: Yes

Extended Information:

• Country of Origin: US
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 7 x 5 x 3 inches
• Weight: 3.6 POUNDS
