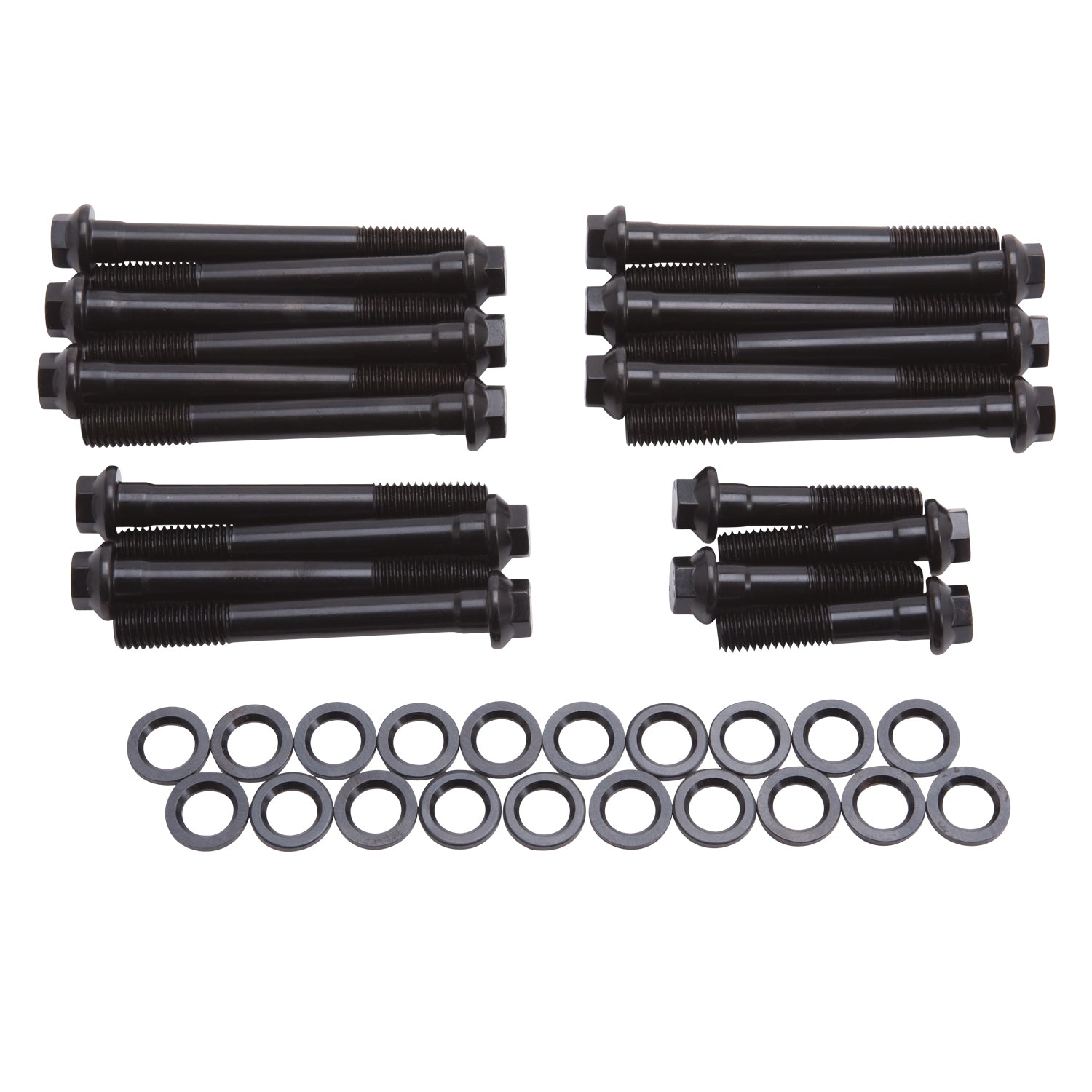

Edelbrock E-Series Cylinder Head Bolt Kit #85492 For Pontiac W/Edelbrock Heads

Edelbrock E-Series Cylinder Head Bolt Kit #85492 is designed for use on Pontiac 326-455 engines with Edelbrock Performer and Performer RPM Cylinder Heads #60569-#60599 and #60509 manufactured after 3/12/02. Note that Edelbrock Cylinder Heads for the Pontiac 389-455 engine require a special head bolt. The head bolt boss heights have been changed in the Pontiac cylinder head to eliminate problems with cracking at the upper head bolt boss end for high-output applications. The new head bolt boss height also simplifies the head bolt kit by requiring only three different lengths instead of six different lengths in the previous head bolt kit. E-Series bolts have a yield tensile strength of 190,000 PSI for strong and reliable loading. Bolt threads are rolled after heat-treating for superior form and strength, while a small hex head provides extra space for socket clearance in tight situations. E-Series Cylinder Head Bolts have a durable black oxide finish with sealer and come with the distinctive Edelbrock E stamped into the head.

• For Edelbrock Pontiac Performer/Performer RPM heads manufactured after 3/12/02
• Yield tensile strength of 190,000 PSI
• Heat treating with rolled threads for superior strength
• black-oxide finish with sealer
• Not for stock heads.

Vehicle Specific

• Pontiac:-:326 (5.3L)-455 (7.5L)

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347854929
• Finish: Black Oxide
• Grade Type: Performance
• Head Drive Type: Hex
• Length: (4) 2.25 in, (4) 4.00 in, (12) 4.25
• Material: 8740 Chromoly
• Minimum Length: 2.25
• Quantity: Kit
• RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• Thread Diameter: 0.5
• Thread Type: Coarse
• Washers Included: Yes

Extended Information:

• Country of Origin: US
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 7 x 5 x 3 inches
• Weight: 4.1 POUNDS
