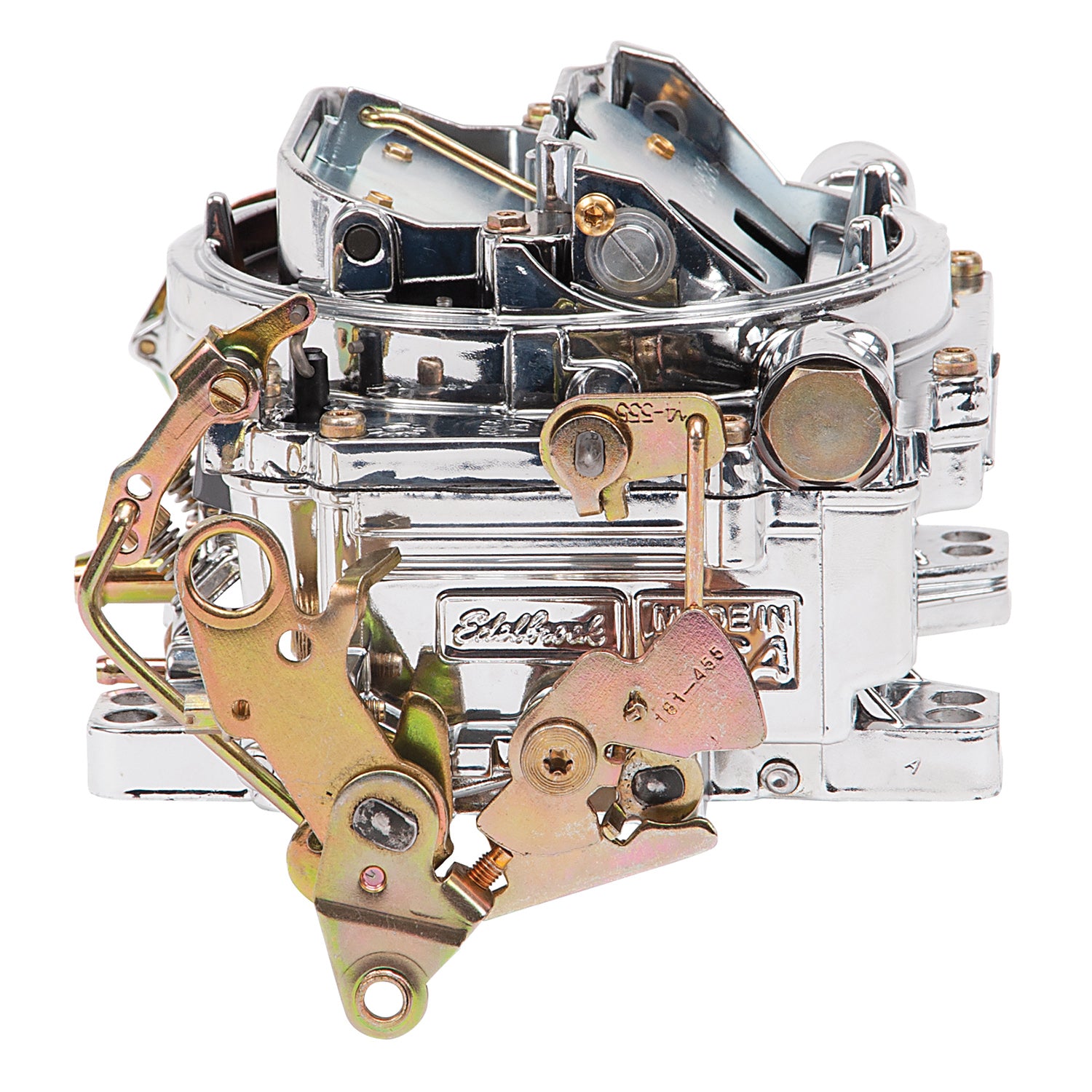

The Edelbrock #19014 AV2 Series EnduraShine 500 cfm Carburetor is designed and calibrated for small cubic-inch single carb applications, match with an Edelbrock Performer or Performer EPS manifold or other brands of similar design. Includes both timed and full vacuum ports for ignition advance. #19014 is calibrated for single-quad applications and factory equipped with: Metering Jets - Primary .095, Secondary .095, Primary Rod .070 x .052, orange spring (5' Hg). Use carb Studs #8008 or #8024 if needed. Match with an Edelbrock intake manifold for the ultimate induction upgrade.

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347190140
• Barrel Quantity: 4 Barrel
• Body Height: 3.25
• Booster Type: annular
• Bore Diameter: Primary Bore 1.44; Secondary Bore 1.6875
• Choke Type: Electric
• Condition: New
• EGR Port: No
• Finish: EnduraShine
• Flange Shape: Square
• Gasket Or Seal Included: Yes
• Main Venturi Diameter: 1.19
• Material: Aluminum
• Maximum Flow Rating: 500
• Metering Rod Size: .070 x .052
• Primary Jet Diameter: 0.095
• RGL: WARNING: This product can expose you to Zinc, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• Recommended Use: For Single Carb Applications
• Secondary Jet Diameter: 0.095
• Series: AVS2
• Spring Force: 5" Hg (Orange)

Extended Information:

• Country of Origin: US
• Emissions : EPA Eligible
• Life Cycle Status: Obsolete

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 13.3125 x 7.375 x 6.625 inches
• Weight: 10.85 POUNDS
