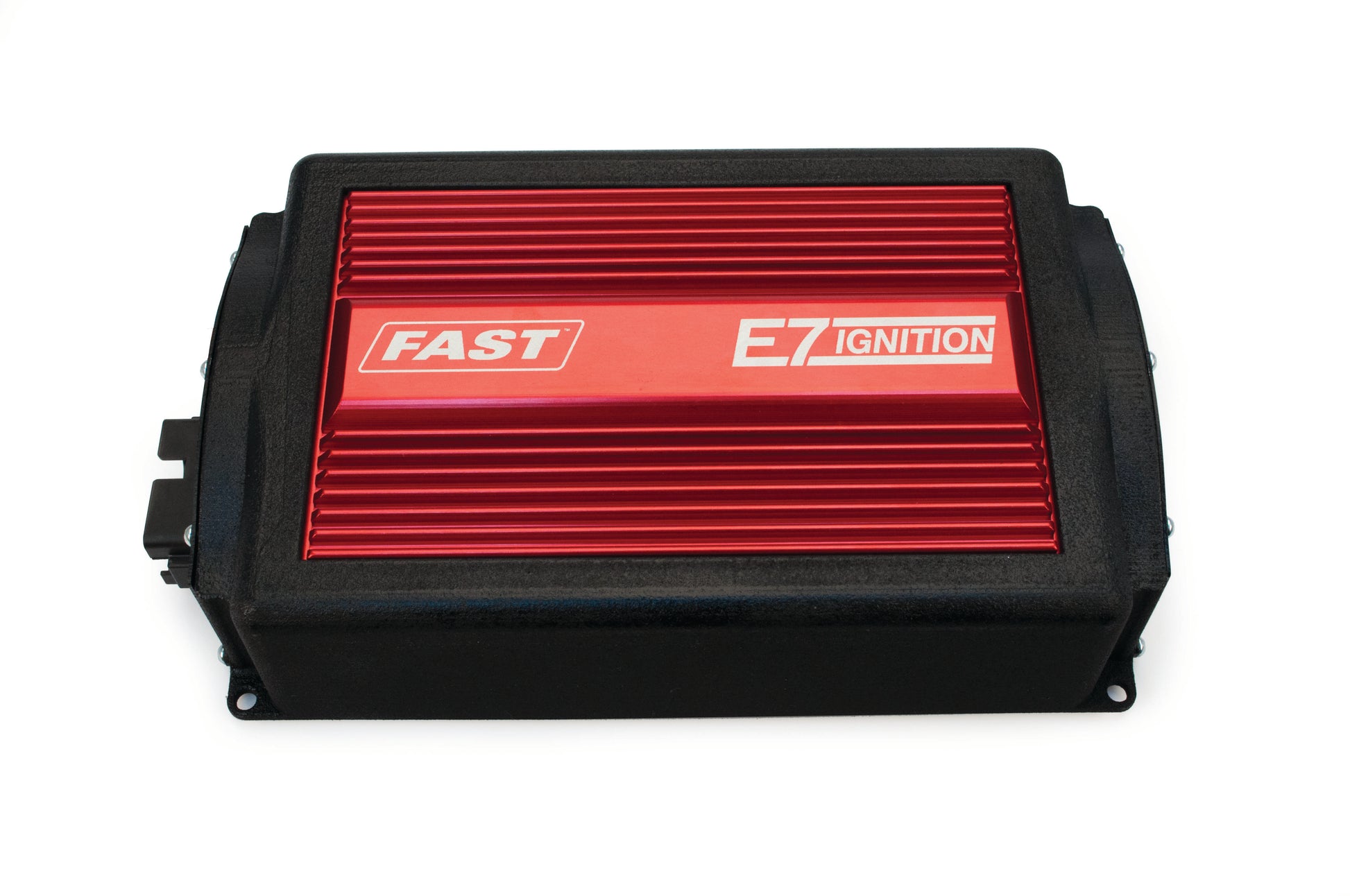

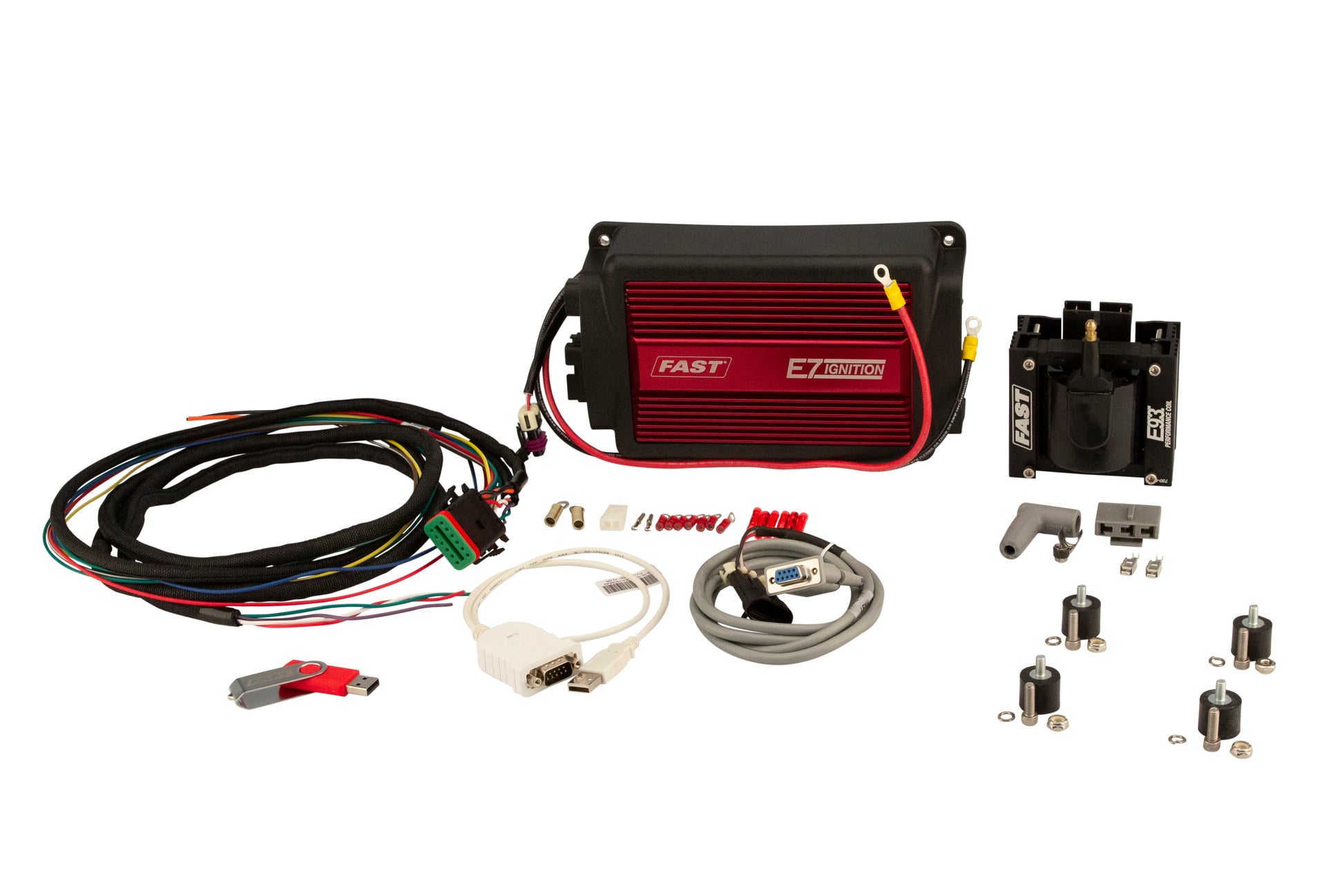

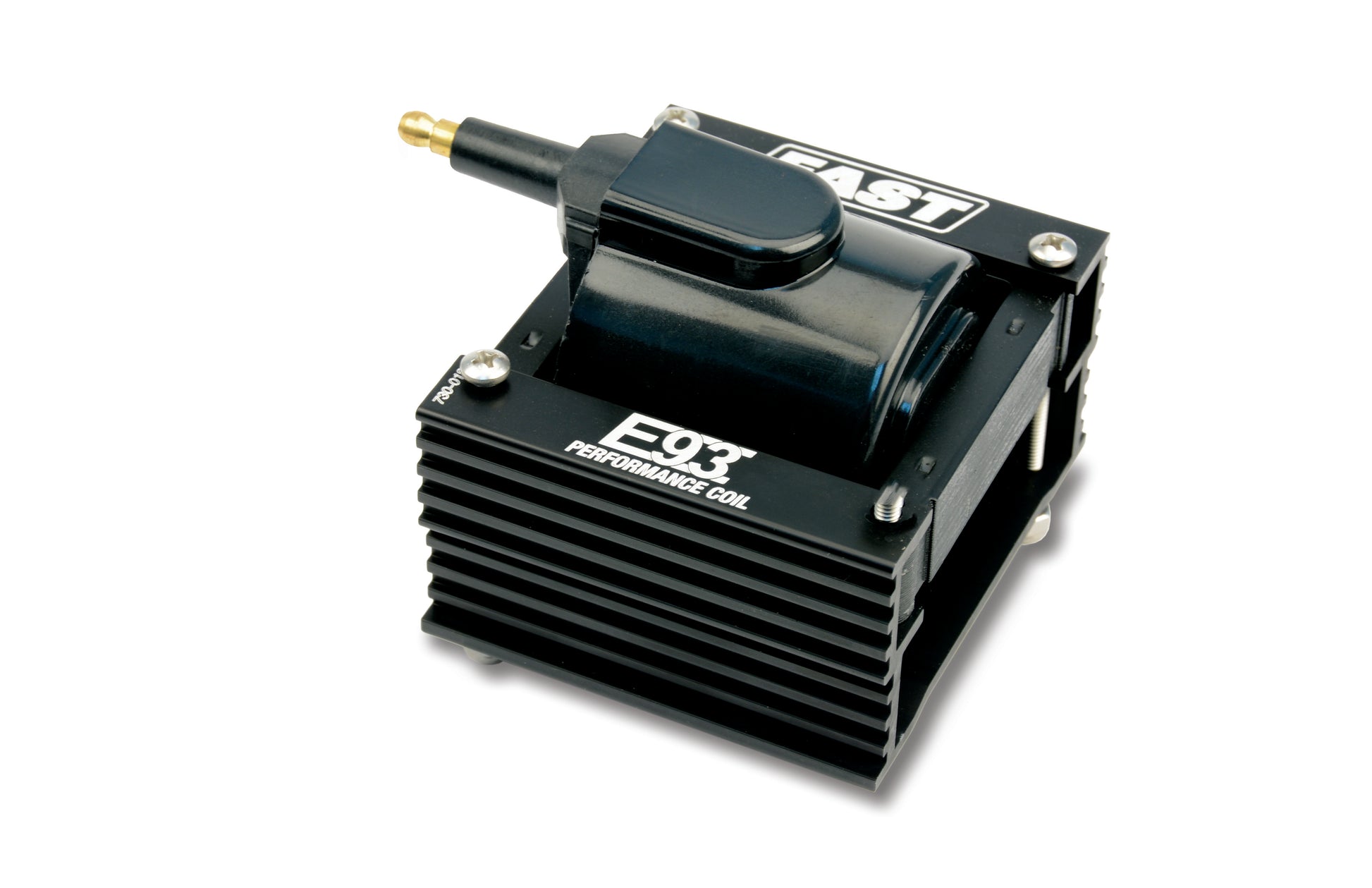

E7 CD Ignition + E93 Racing Coil Ignition Kit

Attributes:

• Brand Name: FAST
• GTIN: 00036584384663
• C.A.R.B. EO Number: N/A
• C.A.R.B. Exempt?: No
• Coil Height: 3.25
• Coil Length: 4.25
• Coil Width: 3.5
• Coil Wire Included: No
• Current Draw: 1 Amp per 1,000 RPM
• Grade Type: Performance
• Hall-Effect Compatible?: Only compatible with aftermarket crank trigger pickup
• IPU Compatible?: Yes
• Ignition Box Height: 2.2
• Ignition Box Length: 8.3
• Ignition Box Width: 6.3
• Instruction Manual Included: Yes
• Leakage Inductance: 6.8
• Limiter Accuracy: 30
• Limiter RPM Increment: 100
• Limiter Range: 100-12,000
• Limiter Type: Sequential
• Maximum RPM: 12000
• Maximum Voltage: 50000
• Minimum Operating Voltage: 10
• Mounting Hardware Included: Yes
• Mounting Tray Included?: No
• Multi-Strike Duration (Crankshaft Rotation): 20
• Operating Range: 12,000+
• Operating Voltage: 10-20
• Peak Spark Gap Current: 510
• Primary Energy Output: 160
• Primary Inductance: 1.9
• Primary Resistance: 0.2
• Primary Voltage Output: 450
• Rev Limiter Included: Yes
• Secondary Resistance: 0.82
• Software Included?: Yes
• Timing Accuracy: 0.5
• Timing Retard Stages: 1
• Trigger Type: Points & Mag
• Turns Ratio: 0.14

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Discontinued

Packing Information:

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 19 x 8.5 x 9 inches
• Weight: 9.5 POUNDS
