E-Street 15-Degree Cylinder Heads For GM LS3 Engines With .660" Lift

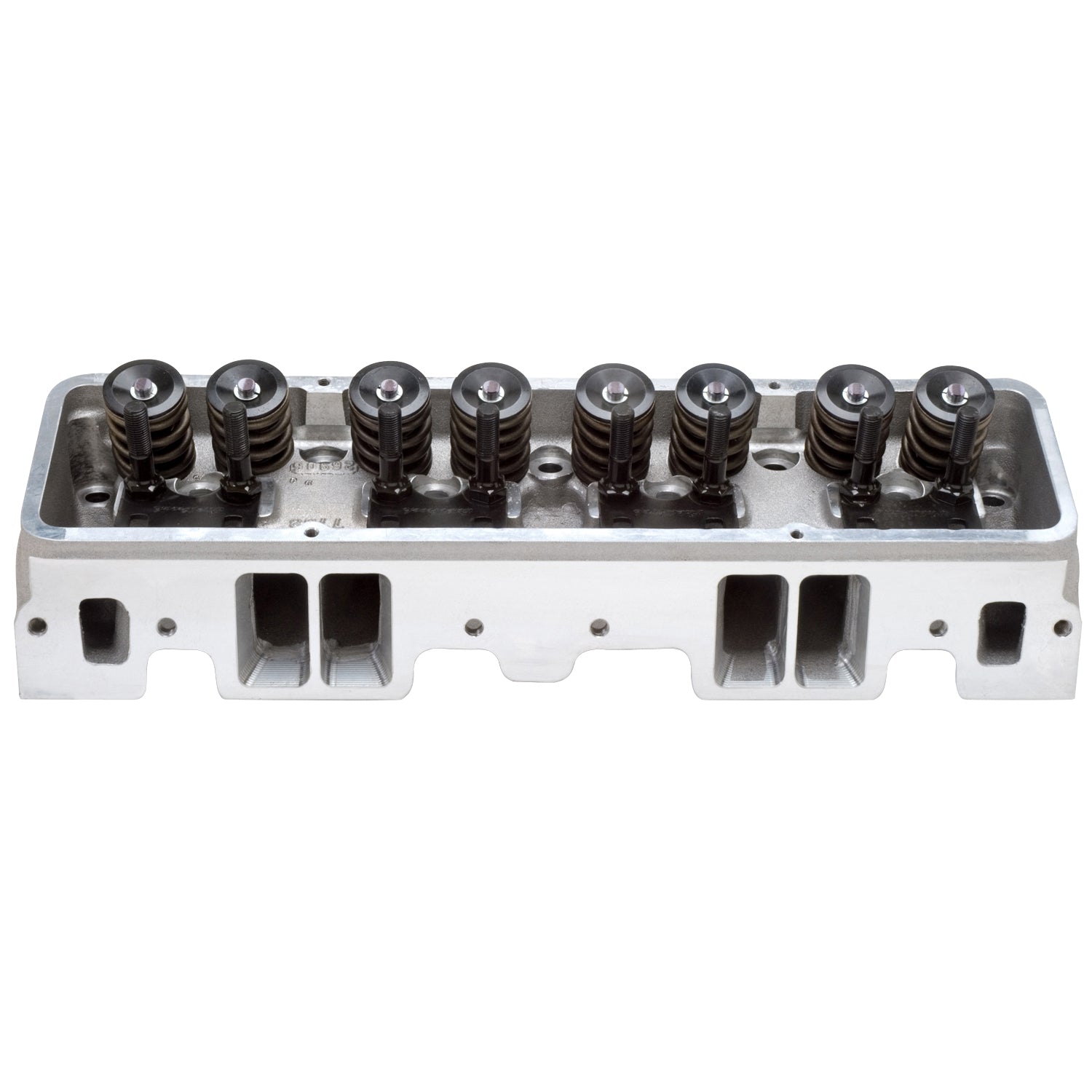

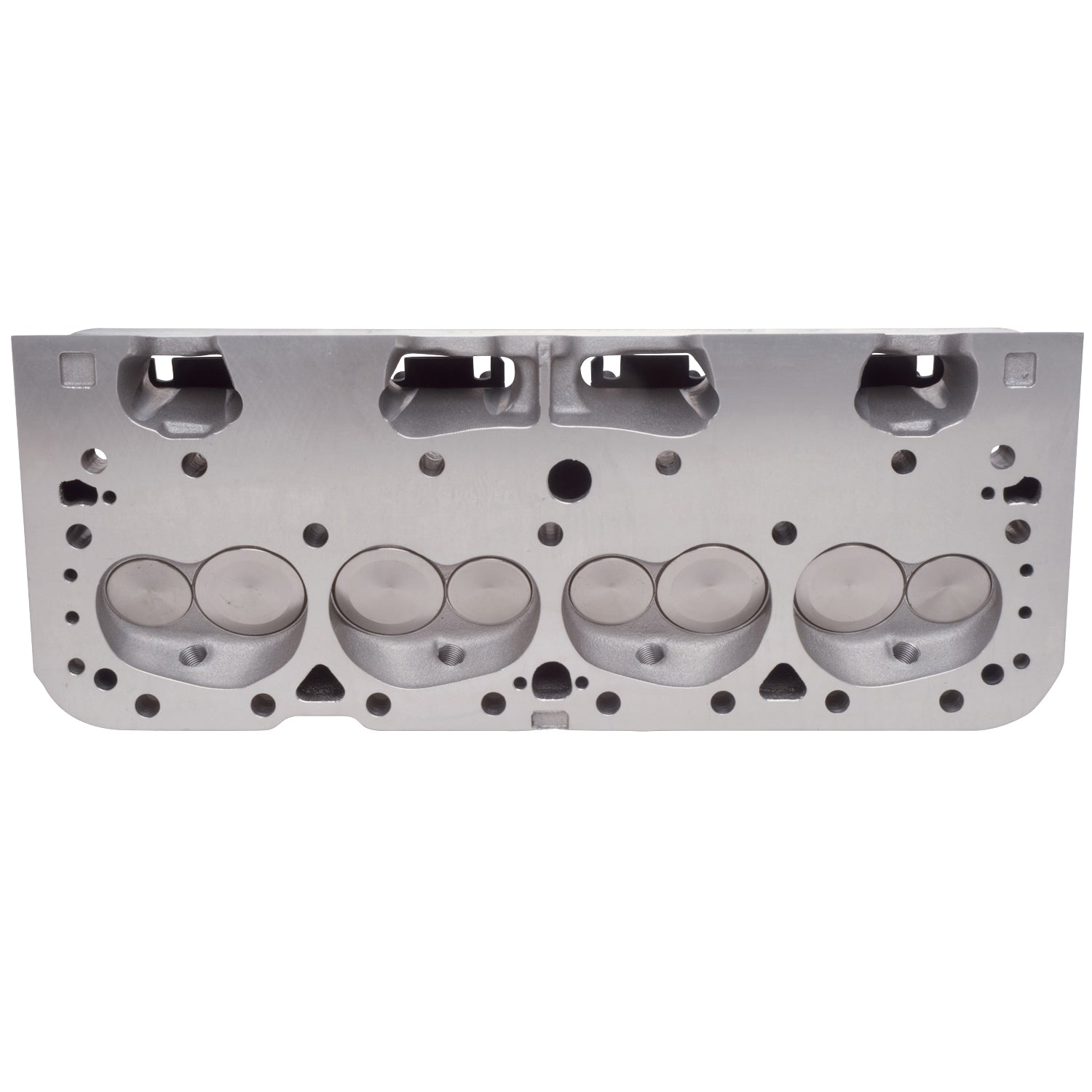

The Edelbrock part #77619 Small Block Chevy Victor Jr. 215cc cylinder head is an affordable version that will still allow for maximum power when used in competition and ultra high-performance's street applications. This cylinder head has the potential of 530-580 hp out-of-the-box, for a cost effective, race-winning set-up. These cylinder heads feature angled spark plug holes and accept standard 23 Deg valvetrain hardware. The 77619 cylinder heads have a 70cc combustion chamber and come with springs for hydraulic roller camshafts. Vehicle Specific

• Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347776191
• CNC Ported: No
• Combustion Chamber Volume: 70.0
• Deck Height: 9.025
• Deck Thickness: 0.562
• Exhaust Valve Diameter: 1.600
• Grade Type: Performance
• Guide Plate Material: Hardened Steel
• Guide Plates Included: Yes
• Head Casting Number: 31-7763
• Intake Runner Volume: 215.0
• Intake Valve Diameter: 2.080
• Material: Aluminum
• Push Rod Diameter: 0.312
• RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• Rocker Arm Stud Diameter: 0.437
• Valve Angle: 23
• Valve Spring Diameter: 1.550
• Valve Spring Maximum Lift: 0.650
• Valve Stem Diameter: 0.341

Extended Information:

• Country of Origin: US
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 22.1875 x 10.125 x 7.1875 inches
• Weight: 33.55 POUNDS
