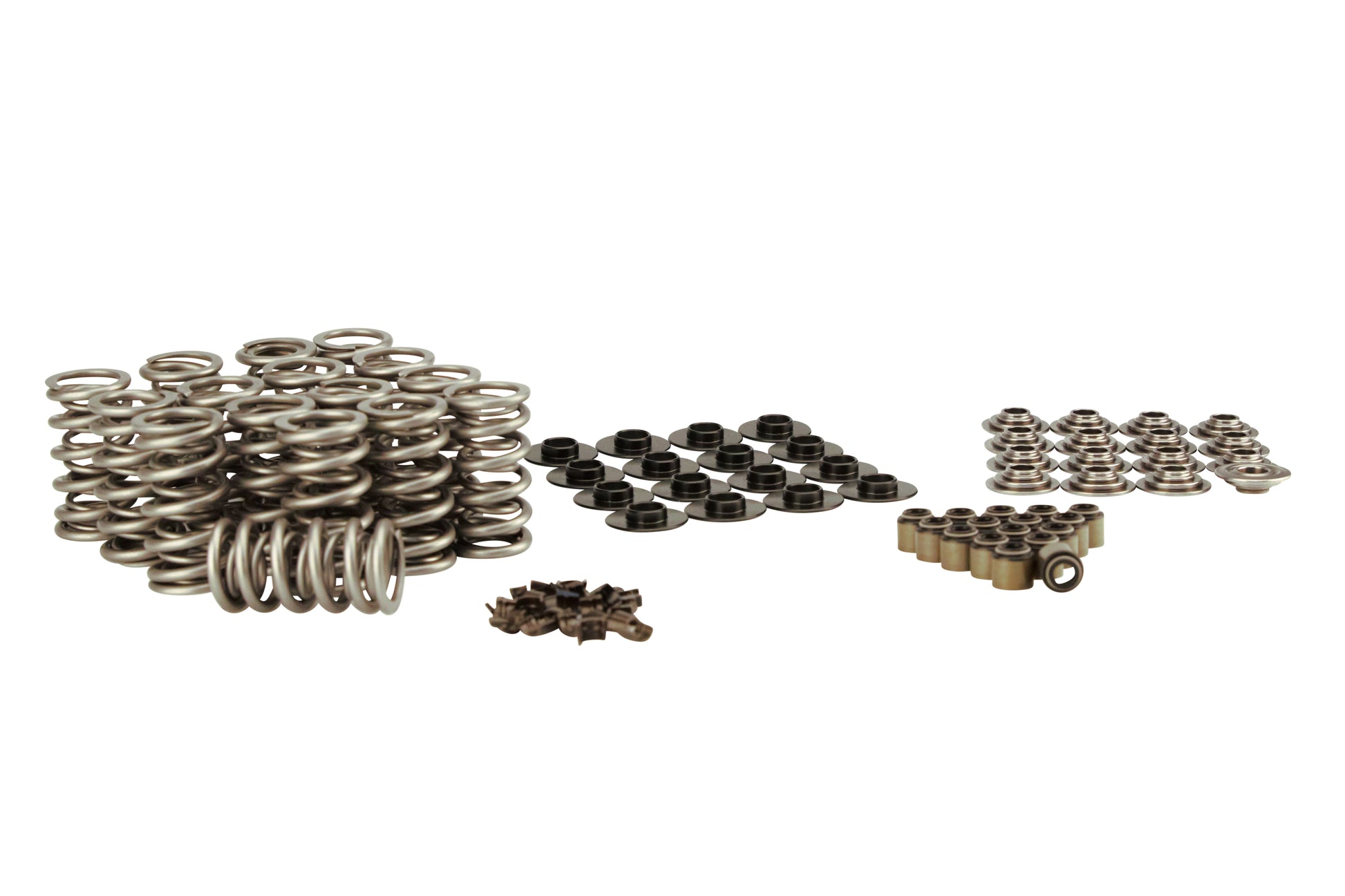

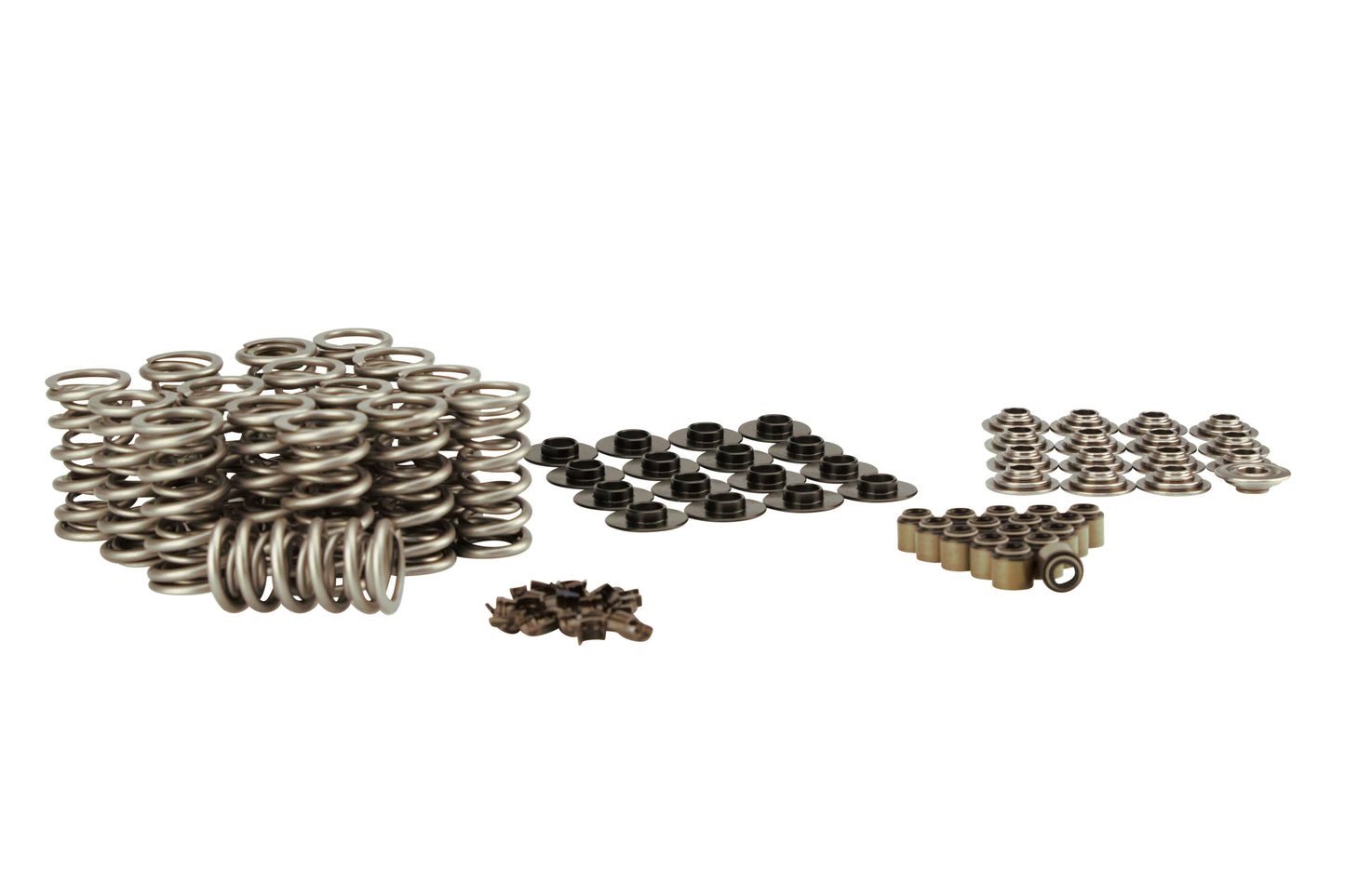

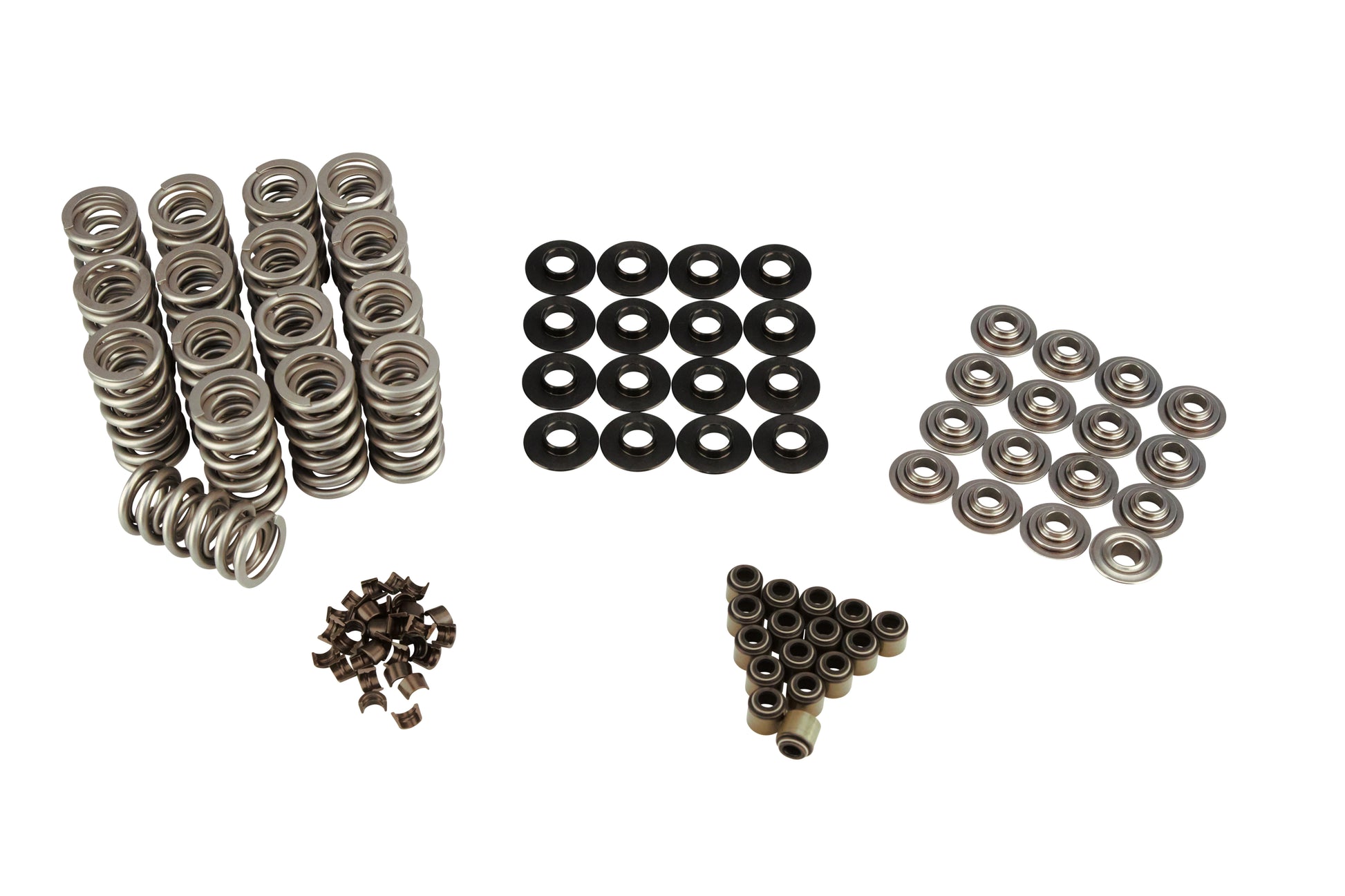

Dual Valve Spring Kit For GM L83/L86/LT1/LS7 W/ Tool Steel Retainers

The COMP Cams .700" Lift Dual Valve Spring Kits for GM LT1/LS7 feature: <ul> <li>.700" Max Lift</li> <li>Designed for hydraulic Roller and some Solid Roller Applications</li> <li>Complete kit includes .700" lift dual springs, Tool Steel retainers, valve locks, Seals, and spring seats</li> </ul> Vehicle Specific

• L83/L86/LT1/LS7 GM engines

Attributes:

• Brand Name: COMP Cams
• GTIN: 00036584395515
• Coil Bind Height: 1.15
• Damper: No
• Free Length: 2.322
• Included Seats: 4695-16
• Includes Retainers?: Yes
• Includes Seats?: Yes
• Includes Shims?: No
• Inner Spring Inside Diameter: 0.646
• Installed Height: 1.9
• Max Lift: 0.7
• Number of Springs: 2
• Open Load: 458
• Outer Spring Inside Diameter: 0.924
• Outer Spring Outside Diameter: 1.301
• Retainer Material: Tool Steel
• Seat Pressure: 159
• Spring Rate: 427
• Spring Seat Type: Steel
• Spring Style: Dual
• Valve Spring Series: Dual

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 11.9 x 6.4 x 2.9 inches
• Weight: 5.3 POUNDS
