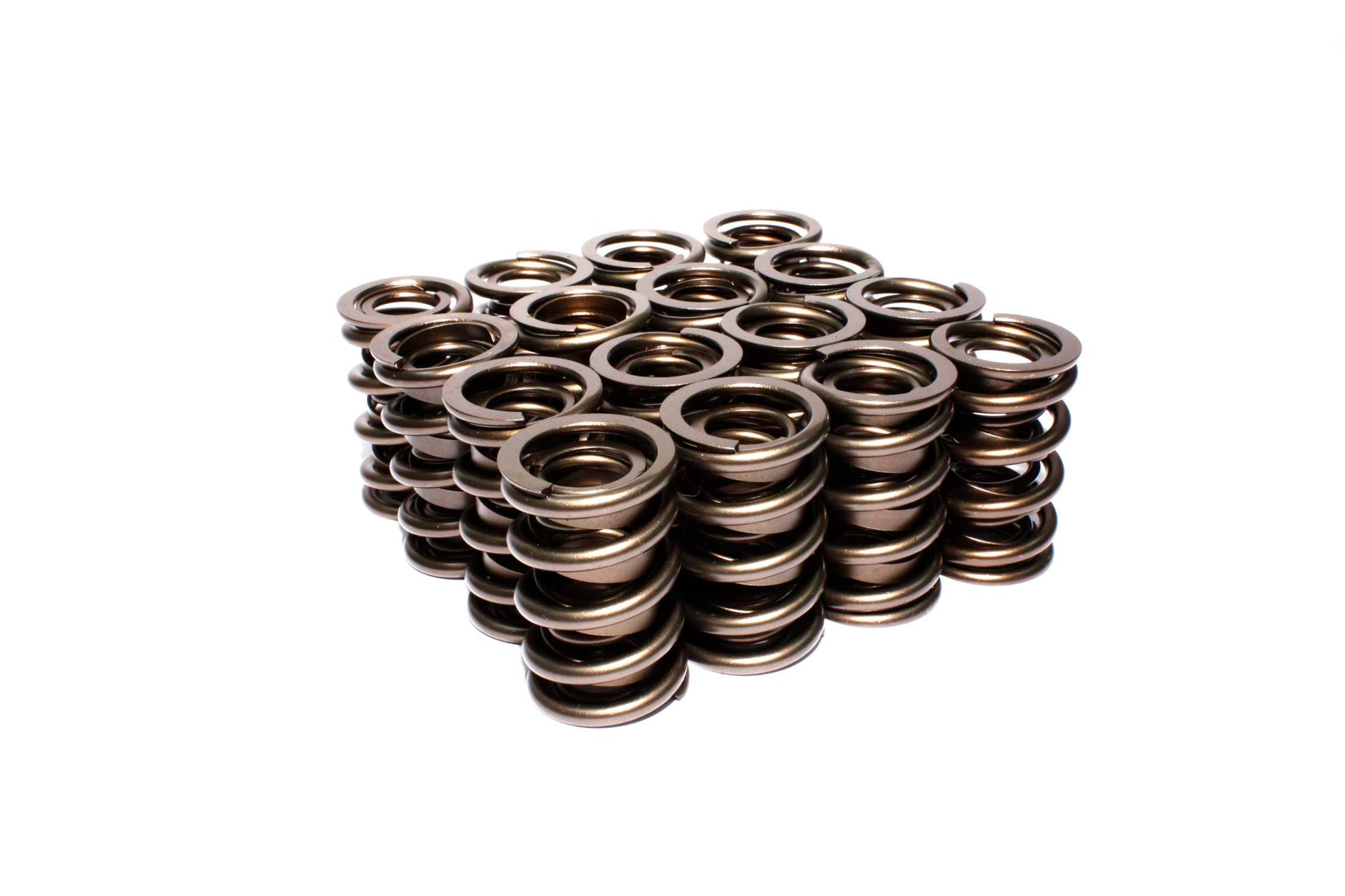

DUAL SPRING W/ DAMPER 1.555 OD 1.950 IH .760 LIFT 500 LBS/IN

COMP Cams' new 26094 dual valve springs are a product of innovative design and superior craftsmanship. Engineered with state-of-the-art techniques and premium wire, they redefine reliability and consistency in the performance automotive aftermarket. The 26094 is geared towards aggressive solid roller cams with up to .760" lift and race-oriented solid flat tappet setups, with an installed height of 1.950”. They fit cylinder heads with at least a 1.555" spring pocket. Boasting an open load of over 520 pounds, these valve springs are designed for many aggressive street and race applications with exceptional performance and durability.Whether you're seeking improved dynamics, enhanced valve control, or unmatched reliability, we have the valve springs to deliver the perfect solution. Elevate your engine's dependability and confidence on the road or track with COMP Cams valve springs.

Attributes:

• Brand Name: COMP Cams
• GTIN: 00036584061816
• C.A.R.B. E.O. Number: N/A
• C.A.R.B. Exempt for On-Road Vehicles?: Yes
• C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
• Compatible .570" Guide Diameter Spring Seats: 4772-16
• Compatible .630" Guide Diameter Spring Seats: 4773-16
• Compatible Retainer: 780 Steel Retainers for 7° Locks and 3/8 Valves
• Compatible Shims: 4757
• Compatible Spring Cup (O.D. Locator): 4700-16
• Damper: Yes
• ID of Inner Spring (in): .812
• Inner Spring Inside Diameter: 0.812
• Load at Installed Height: 150
• Load at Open Height (lbs): 526
• Maximum Coil Bind Height (in): 1.130
• Number of Springs Per Valve: 2
• Open Height: 1.200
• Outer Spring Inside Diameter: 1.136
• Outer Spring Outside Diameter: 1.555
• Quantity: 16
• Recommended Max Lift (in): .760
• Spring Rate: 454
• Spring Rate (lbs/in): 500
• Valve Spring Finish: Raw
• Valve Spring Style: Dual

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: ST
• Dimension: 13.5 x 3.7 x 2.9 inches
• Weight: 6.1 POUNDS
