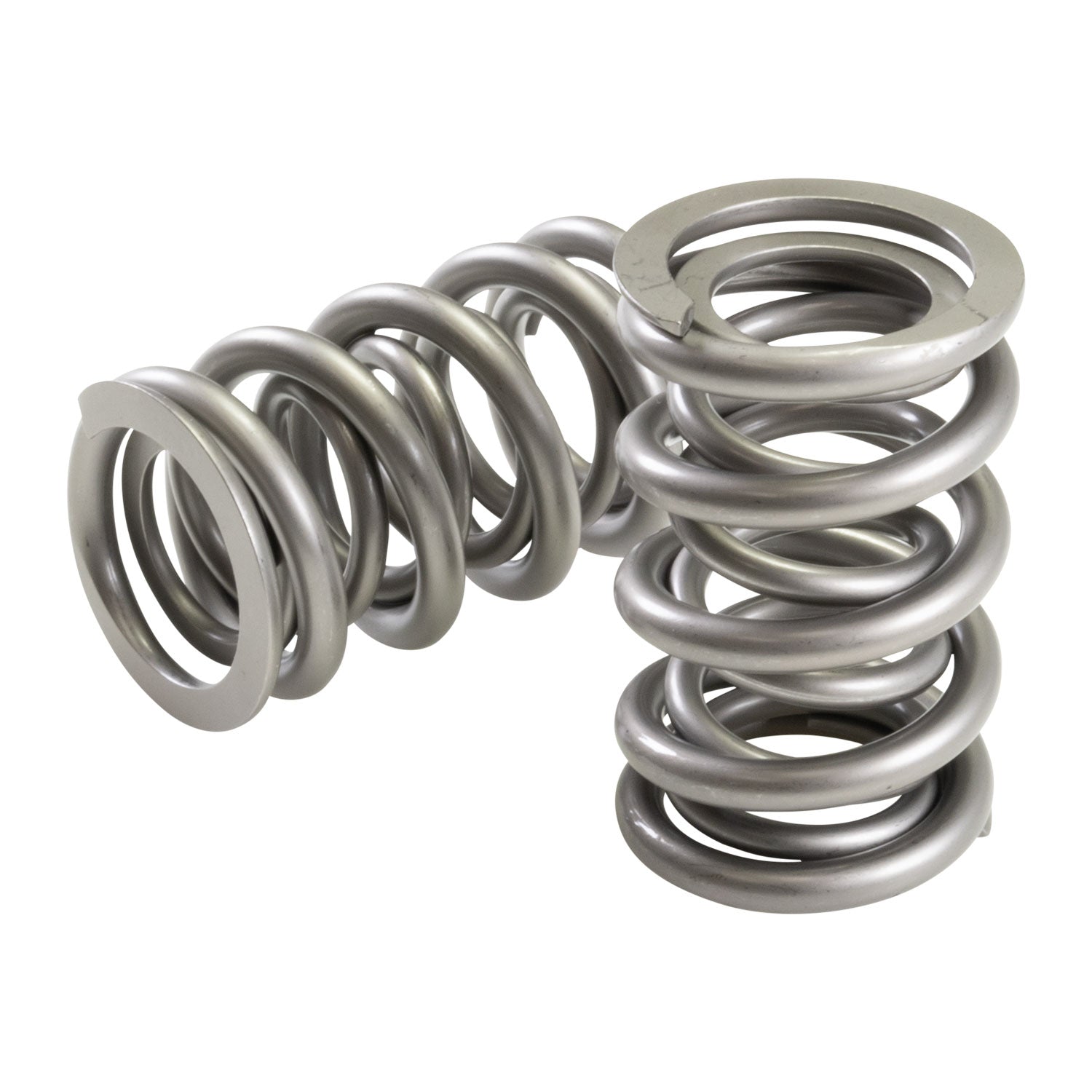

DUAL SPRING 1.560 OD 1.900 IH .740 LIFT 550 LBS/IN SUPERFINISH

COMP Cams' new 26943 dual valve springs are a product of innovative design and superior craftsmanship. Engineered with state-of-the-art techniques and premium wire processing, including superfinishing, they redefine reliability and consistency in the performance automotive aftermarket. The 26943 is geared towards race-oriented solid roller applications, with up to .740” lift at an installed height of 1.900”. They fit cylinder heads with at least a 1.560" spring pocket. Boasting an open load of over 600 pounds, these valve springs are designed for race applications with exceptional performance and durability. Whether you're seeking improved dynamics, enhanced valve control, or unmatched reliability, we have the valve springs to deliver the perfect solution. Elevate your engine's dependability and confidence on the track with COMP Cams valve springs. Vehicle Specific

• Solid Roller Valve Trains

Attributes:

• Brand Name: COMP Cams
• GTIN: 00036584428428
• C.A.R.B. E.O. Number: N/A
• Compatible Retainers: 748 Steel Retainers for 10° Locks and All Valves
• Compatible Seats: 4642 Spring Seats for .570 Guide
• Compatible Shims: 4757 Spring Shims
• Damper Spring Included: No
• ID of Inner Spring: 1.137
• Installed Height: 1.900
• Load at Installed Height: 240
• Load at Open Height: 590
• Maximum Coil Bind Height: 1.100
• Number of Springs per Valve: 2
• OD of Outer Spring: 1.550
• Open Height: 1.200
• Quantity: 16
• Recommended Max Lift: .740
• Spring Rate: 550
• Spring Type: Dual Spring
• Valve Spring Finish: Superfinish

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt

Packing Information:

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 13.4 x 3.7 x 2.9 inches
• Weight: 6 POUNDS
