Drop-In Valve Spring Kit For Magnum 5.2L /5.9L Heads With .500" Max Lift

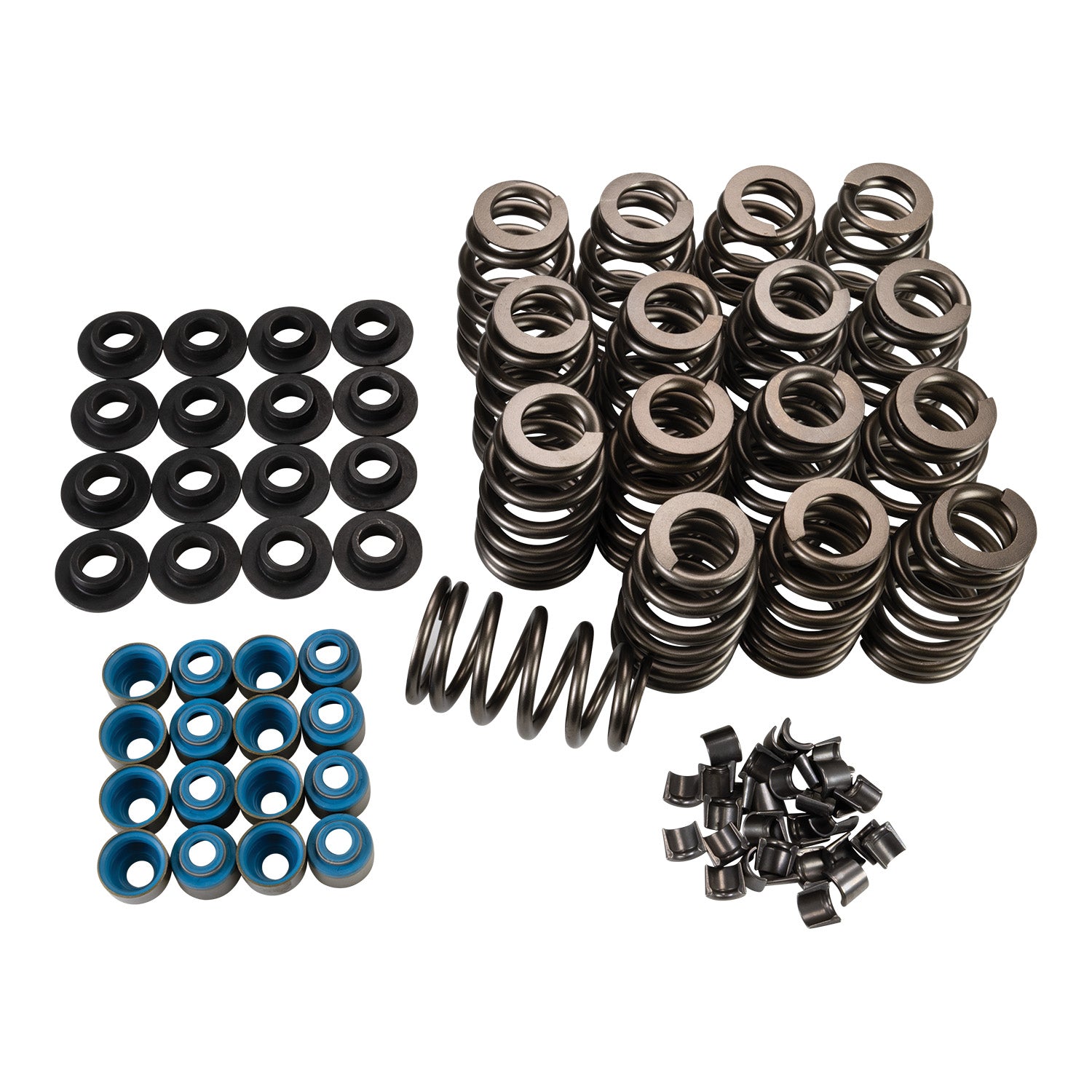

COMP Cams Magnum 5.2L/5.9L Drop-in Valve Spring Kit is designed to maximize the potential of Magnum Cylinder Heads. Allowing up to .500" of lift, this kit provides spring rates that can handle significantly more aggressive lobe profiles. Designed to drop right onto stock Magnum 5.2L/5.9L cylinder heads, it includes beehive valve springs, retainers, and Metal-body Viton valve Seals while using stock valve locks. By combining quality components in a package that does not require any machining, the kit is developed to make your valve train upgrade as easy as possible!

• No Machining Required!
• Includes beehive springs, retainers, and metal body Viton valve seals

Vehicle Specific

• 1992–2000 Dodge Dakota 5.2L, 1992–2001 Dodge Ram 5.2L, 1998–2000 Dodge Durango 5.2L, 1992–1993 Dodge Ramcharger 5.2L, 1992–2002 Dodge Ram Van 5.2L, 1993–1998 Jeep Grand Cherokee 5.2L
• 1998–2003 Dodge Dakota 5.9L, 1992–2002 Dodge Ram 5.9L, 1992–2003 Dodge Ram Van/Dodge Ram Wagon 5.9L, 1998–2003 Dodge Durango 5.9L, 1992–2001 Dodge Ramcharger 5.9L, 1998 Jeep Grand Cherokee 5.9 Limited 5.9L

Attributes:

• Brand Name: COMP Cams
• GTIN: 00036584426998
• Bottom Inside Diameter of Valve Spring (in): 1.00
• Bottom Outside Diameter of Valve Spring (in): 1.415
• Damper Spring Included: No
• Installed Height: 1.6
• Installed Pressure: 165
• Load at Installed Height: 165
• Load at Open Height (lbs): 305
• Material: Steel
• Maximum Coil Bind Height (in): 1.060
• Number of Springs per Valve: 1
• Open Height (in): 1.100
• Open Pressure: 305
• Quantity: 16
• Recommended Max Lift (in): 0.500
• Spring Open Height: 1.100
• Spring Rate: 280
• Spring Shape: Beehive
• Top Inside Diameter of Valve Spring (in): 0.650
• Top Outside Diameter of Valve Spring (in): 1.065
• Valve Spring Finish: Raw
• Valve Spring Quantity: 16
• Valve Spring Style: Beehive

Extended Information:

• Country of Origin: BR

Packing Information:

• Quantity of Each: 1
• Package UOM: KT
• Dimension: 13.5 x 3.75 x 3 inches
• Weight: 3.07 POUNDS
