Drag Link Flip Kit

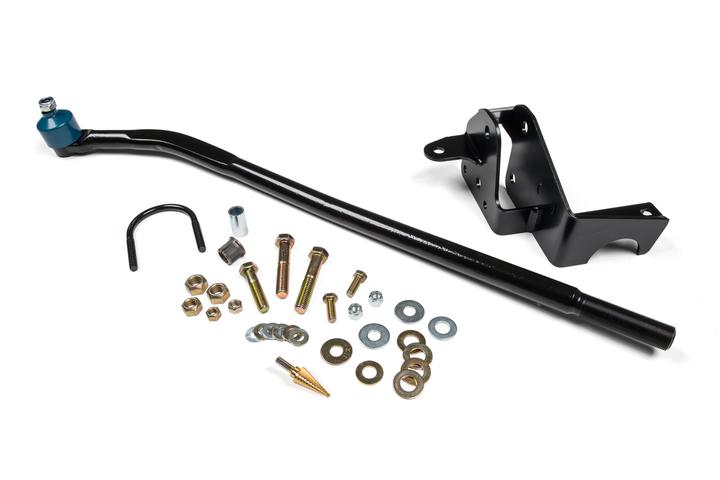

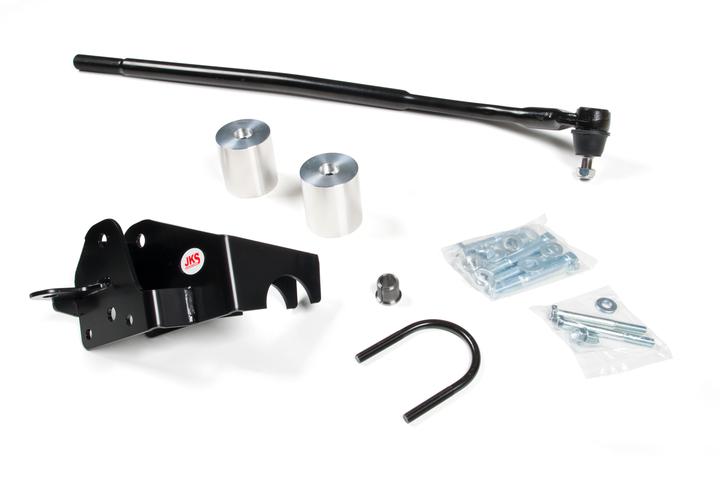

JKS Manufacturing’s Drag Link Flip kit for JK Wranglers consists of a new drag link, a Track Bar bracket and a tapered steering arm insert. The design flattens out steering angles with lift heights of 3" and above, while providing correct geometry to increased droop travel. Bringing angles back to stock with the increased ride height of a lift removes the bump steer commonly associated with lifted solid axle suspensions. Drilling is required with the supplied 7/8” step bit. 3" tall front aluminum bump stop extensions are necessary for proper clearance at full bump. JKS1130 extensions available separately.

• Provide better performing, solid steering feel
• Flattens out steering angle when combined with 2" lift or more
• 7/8" Step Drill Bit Included

Attributes:

• Brand Name: JKS
• GTIN: 00814897011854

Extended Information:

• Country of Origin: US
• Emissions : 1
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 40.0000 x 8.0000 x 8.0000 inches
• Weight: 18.3500 POUNDS
