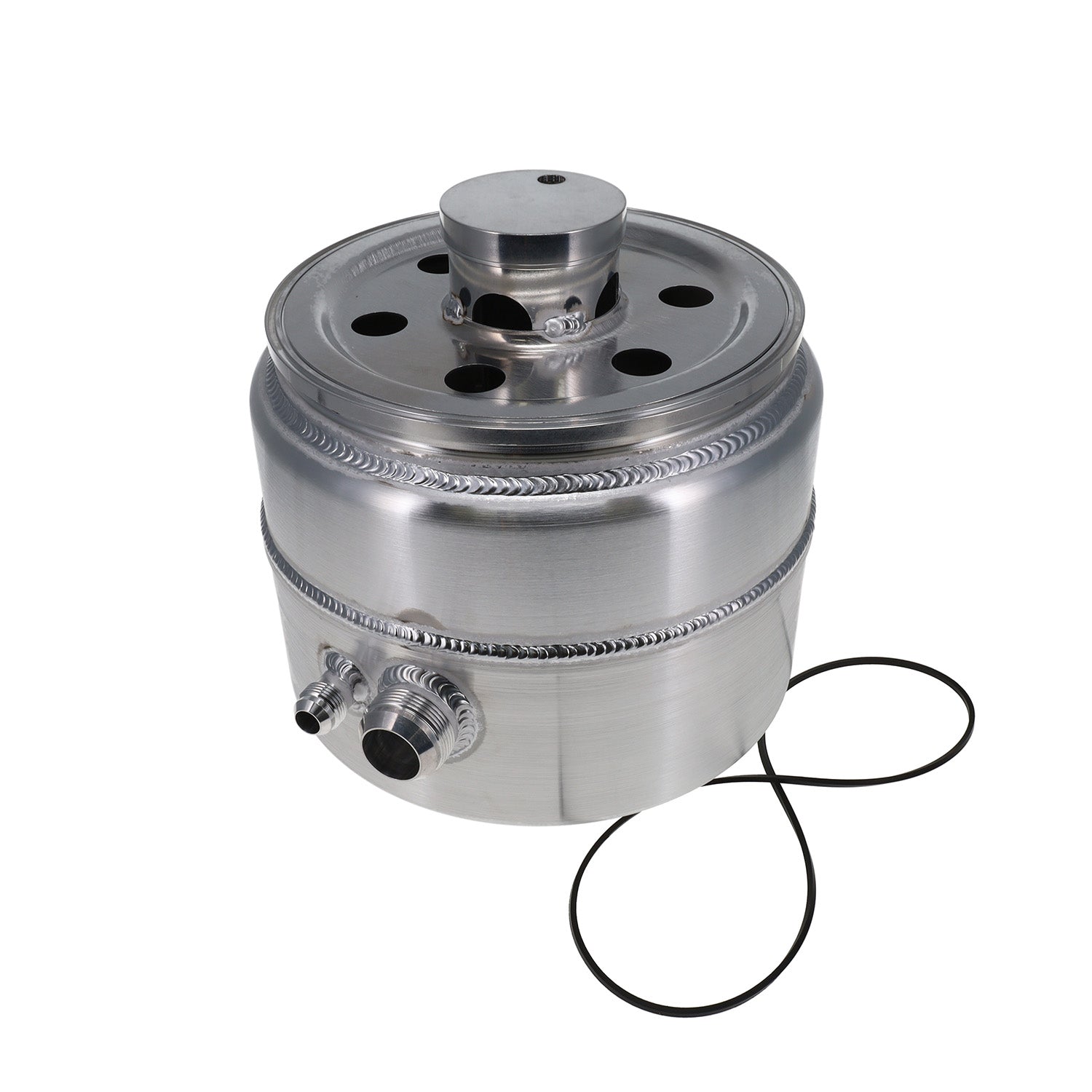

DLM Fat Boy Retrofit Kit W/ -20 AN Pickup

Maximize oil capacity with existing equipment in space restricted locations using this retrofit kit. Convert an existing Peterson 4 or 5 gallon Dirt Late Model (DLM) oil tank into the new “Fat Boy” style tank. Features include new bottom section, lower baffle assembly and tank gasket. Mounting brackets are sold separately.

• Ideal for applications which need high oil capacity with limited space
• Comes with -20 AN oil pickup fitting, tank heater bung and remote primer fitting
• Includes all lower components for conversion. New tank bottom, lower baffle assembly and tank gasket
• Converted tanks will have 5 gallon capacity and are 18.62 in. tall with a 9 in. diamter tank top and 10.5 in. diameter tank bottom
• Made in USA

Attributes:

• Brand Name: Peterson Fluid
• GTIN: 00082642012702

Extended Information:

• Country of Origin: US
• Emissions : Racing or Pre-Emissions Use Only
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each:
• Package UOM:
• Dimension: 14 x 13 x 20 inches
• Weight: 6.8 POUNDS
