McLeod Racing 500 Series Clutch Discs

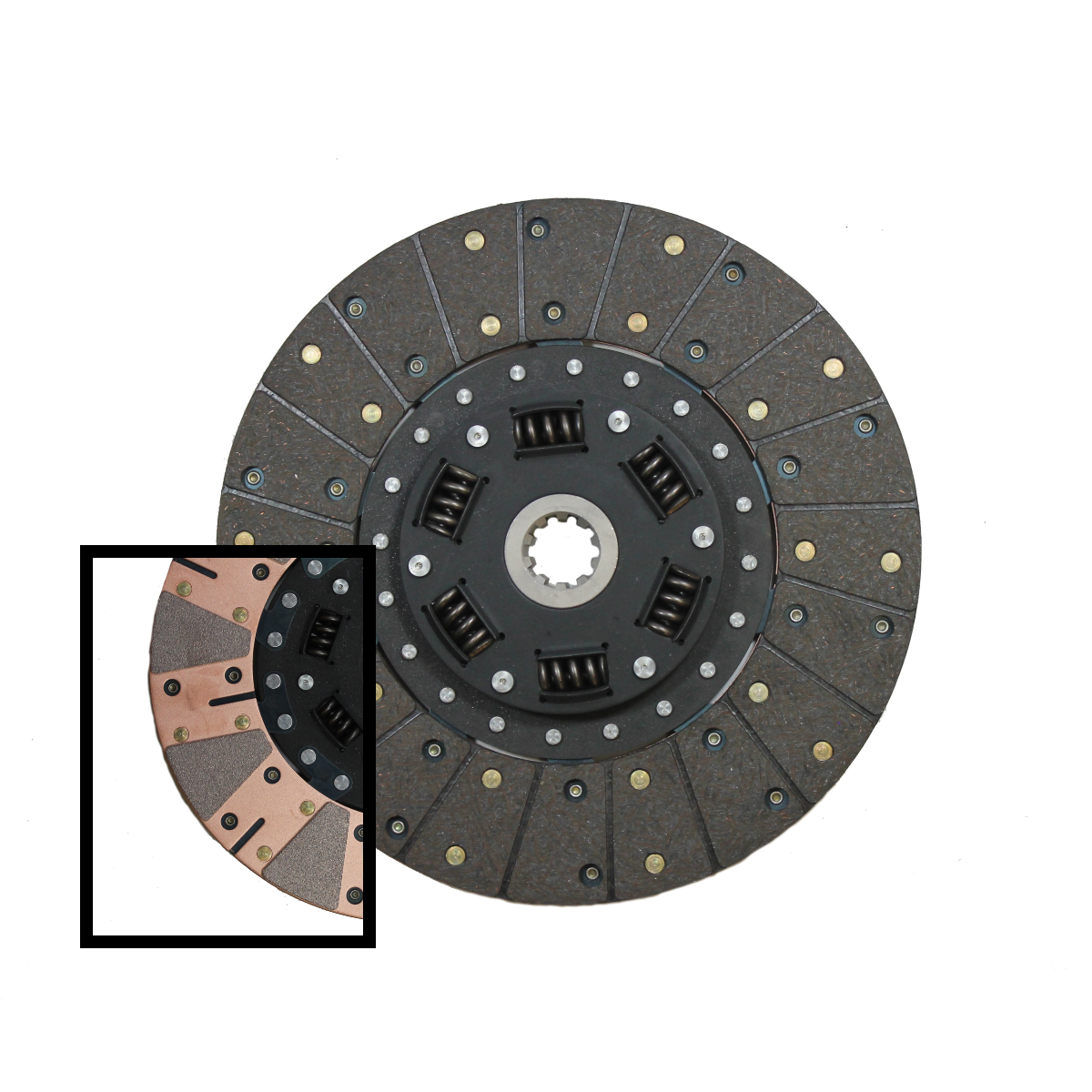

The 500 Series Is a great High Performance Disc In The Single Disc Platform. Suited For Both Street And Strip Duty, The 500 Series Will Give You Both The Smooth Engagement And Holding Power You Need To Get The Job Done. This Disc Has A Segmented Semi Metallic Ceramic Facing On the flywheel side and a full face orgainc on the pressure plate side for a smooth engagement. Mcleod Racing Offer Various Input Shaft Splines For All The Popular Vehicles In 9-11/16", 10.5",11" & 12" Disc Diameters.

• McLeod Racing offers various friction materials, disc diameters and inputshaft splines with superior components to cover multiple applications.

Vehicle Specific

• Chevrolet: Corvette 89 - 96 5.7 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753018311
• Clutch Usage: Performance
• Disc Diameter (in.): 11.000
• Disc Material: Organic/Ceramic
• For Pull Style Actuation: Yes
• Hub Style: Solid
• Input Shaft Diameter (in.): 1.125
• Input Spline Quantity: 26
• Marcel: Yes
• Notes: This disc is intended to be used with a Factory OEM Dual Mass Flywheel Only. Please call McLeod Tech at 714-630-2764 for further info.
• Quantity: Sold individually.

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 12 x 13 x 2 inches
• Weight: 5 POUNDS
