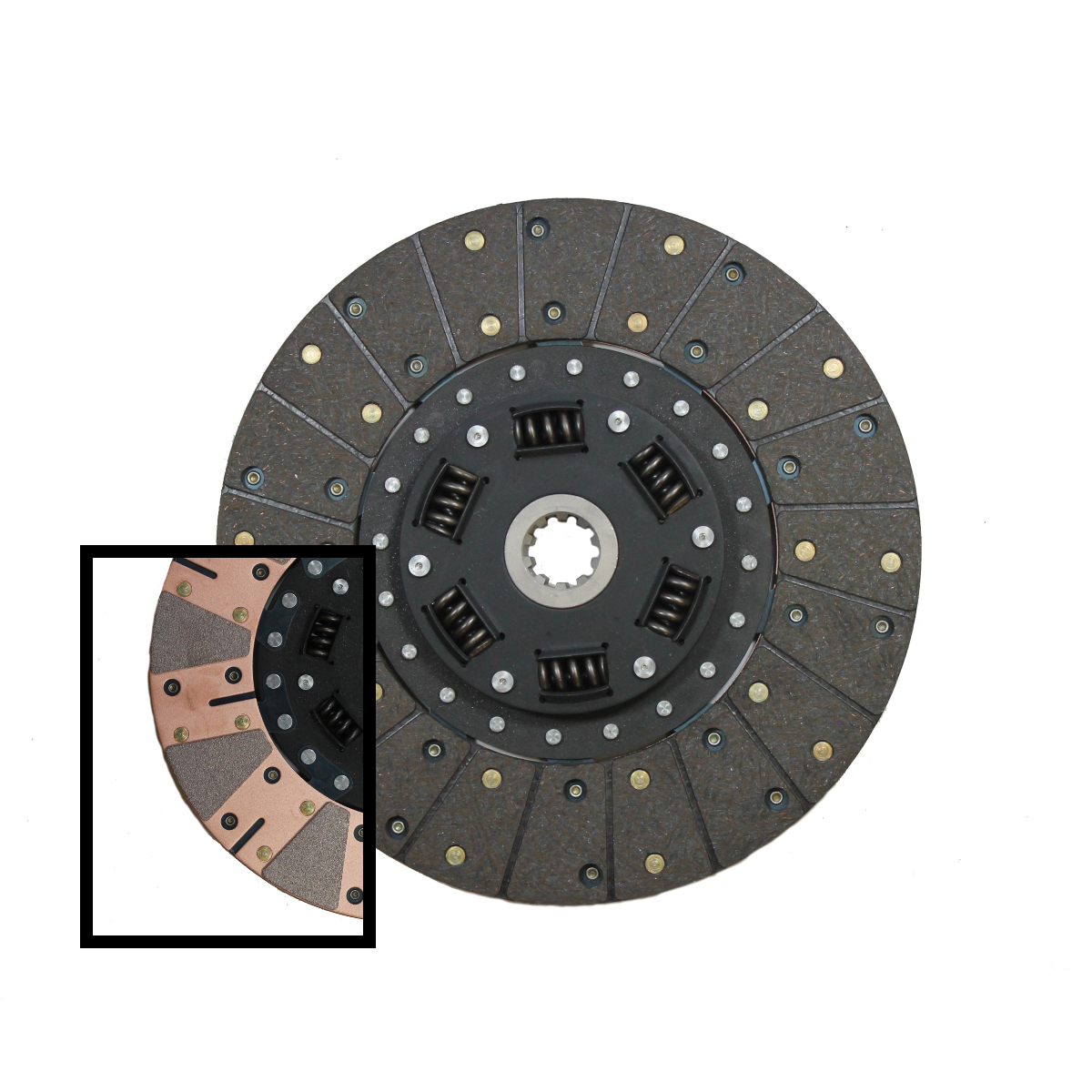

McLeod Racing 500 Series Clutch Discs

The 500 Series Is a great High Performance Disc In The Single Disc Platform. Suited For Both Street And Strip Duty, The 500 Series Will Give You Both The Smooth Engagement And Holding Power You Need To Get The Job Done. This Disc Has A Segmented Semi Metallic Ceramic Facing On the flywheel side and a full face orgainc on the pressure plate side for a smooth engagement. Mcleod Racing Offer Various Input Shaft Splines For All The Popular Vehicles In 9-11/16", 10.5",11" & 12" Disc Diameters.

• McLeod Racing offers various friction materials, disc diameters and inputshaft splines with superior components to cover multiple applications.

Vehicle Specific

• Ford: 1 Ton Pickup 39 - 40 2.2 L Engine, Ford: 1 Ton Pickup 42 - 47 3.6 L Engine, Ford: 1 Ton Pickup 42 - 47 3.9 L Engine, Ford: 1/2 Ton Pickup 39 - 40 2.2 L Engine
• Ford: 1/2 Ton Pickup 42 - 47 3.6 L Engine, Ford: 1/2 Ton Pickup 42 - 47 3.9 L Engine, Ford: 3/4 Ton Pickup 39 - 40 2.2 L Engine, Ford: 3/4 Ton Pickup 42 - 47 3.6 L Engine
• Ford: 3/4 Ton Pickup 42 - 47 3.9 L Engine, Ford: Crestline 52 - 54 3.9 L Engine, Ford: Crestline 53 - 53 4.2 L Engine, Ford: Custom 49 - 51 3.9 L Engine, Ford: Customline 52 - 54 3.9 L Engine
• Ford: Customline 53 - 53 4.2 L Engine, Ford: Deluxe 46 - 51 3.9 L Engine, Ford: F-100 53 - 54 3.9 L Engine, Ford: F-250 53 - 54 3.9 L Engine, Ford: F-350 53 - 54 3.9 L Engine
• Ford: F1 48 - 52 3.9 L Engine, Ford: F2 48 - 52 3.9 L Engine, Ford: F3 48 - 52 3.9 L Engine, Ford: Ford 49 - 49 3.9 L Engine, Ford: Mainline 52 - 54 3.9 L Engine, Ford: Mainline 53 - 53 4.2 L Engine
• Ford: Model 21 A Deluxe 42 - 42 3.6 L Engine, Ford: Model 74 37 - 37 2.2 L Engine, Ford: Model 82 A 38 - 38 2.2 L Engine, Ford: Sedan Delivery 37 - 40 2.2 L Engine
• Ford: Sedan Delivery 42 - 42 3.6 L Engine, Ford: Sedan Delivery 42 - 42 3.9 L Engine, Ford: Standard 39 - 40 2.2 L Engine, Ford: Super Deluxe 46 - 48 3.9 L Engine

Attributes:

• Brand Name: McLeod
• GTIN: 00887753017901
• Clutch Usage: Performance
• Disc Diameter (in.): 10.500
• Disc Material: Organic/Ceramic
• Hub Style: Sprung
• Input Shaft Diameter (in.): 1.375
• Input Spline Quantity: 10
• Quantity: Sold individually.
• Reverse Hub: No

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 12 x 13 x 2 inches
• Weight: 5 POUNDS
