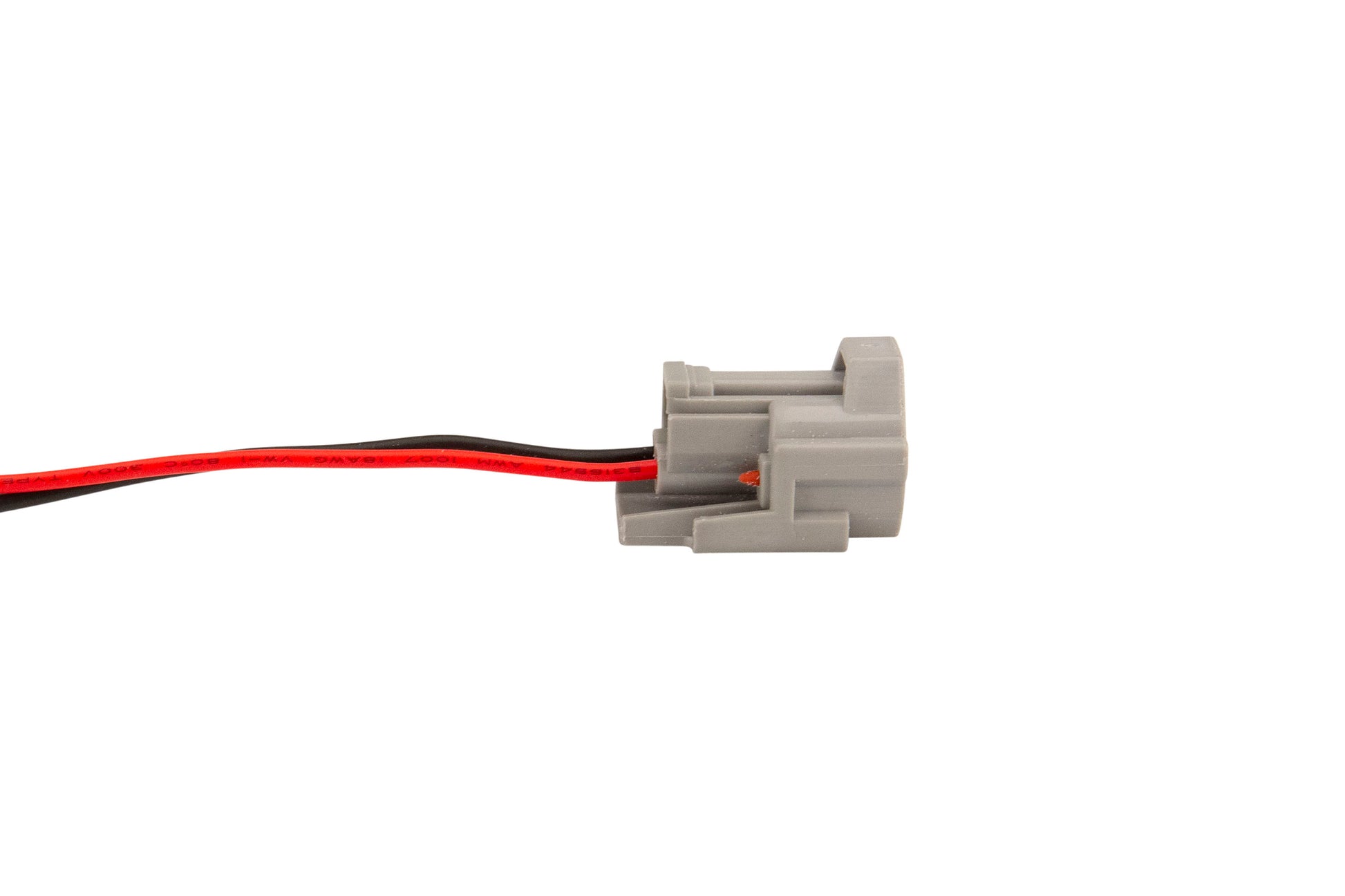

Denso Fuel Injector Adapter Harness

Available 2-pin top slot connectors ensure worry-free installation. Part #170032 contains pre-assembled connector and pigtail harness. Single.

• Pre-Assembled Connector with Pigtail HarnessSingle

Attributes:

• Brand Name: FAST
• GTIN: 00036584388180
• C.A.R.B. EO Number: N/A
• C.A.R.B. Exempt?: No
• Compatible FAST Fuel Injectors: 32107 - Precision-Flow LS3/LS7 Profile 242 lb/hr High?Impedance Fuel Injectors
• Connector Type: Denso
• Includes Connector Seals: Yes
• Includes Terminal: Yes
• Includes Wires/Pigtails: Yes
• Number of Connector Kits: 1
• Number of Pins: 2
• Pre-Terminated Harness-Side?: No
• Recommended Harness-Side USCAR/EV6 Connector: 170600-1
• Recommended Harnness-Side Minitimer/EV1 Connector: 170599-1
• Recommended Wire Gauge: 18
• Terminal Gauge Range: 22-16
• Terminal Gender: Female
• Terminal Size: 2.3
• Wire Seal Gauge Range: 20-16
• Wire/Pigail Length: 5

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 7.5 x 4 x 0.5 inches
• Weight: 0.05 POUNDS
