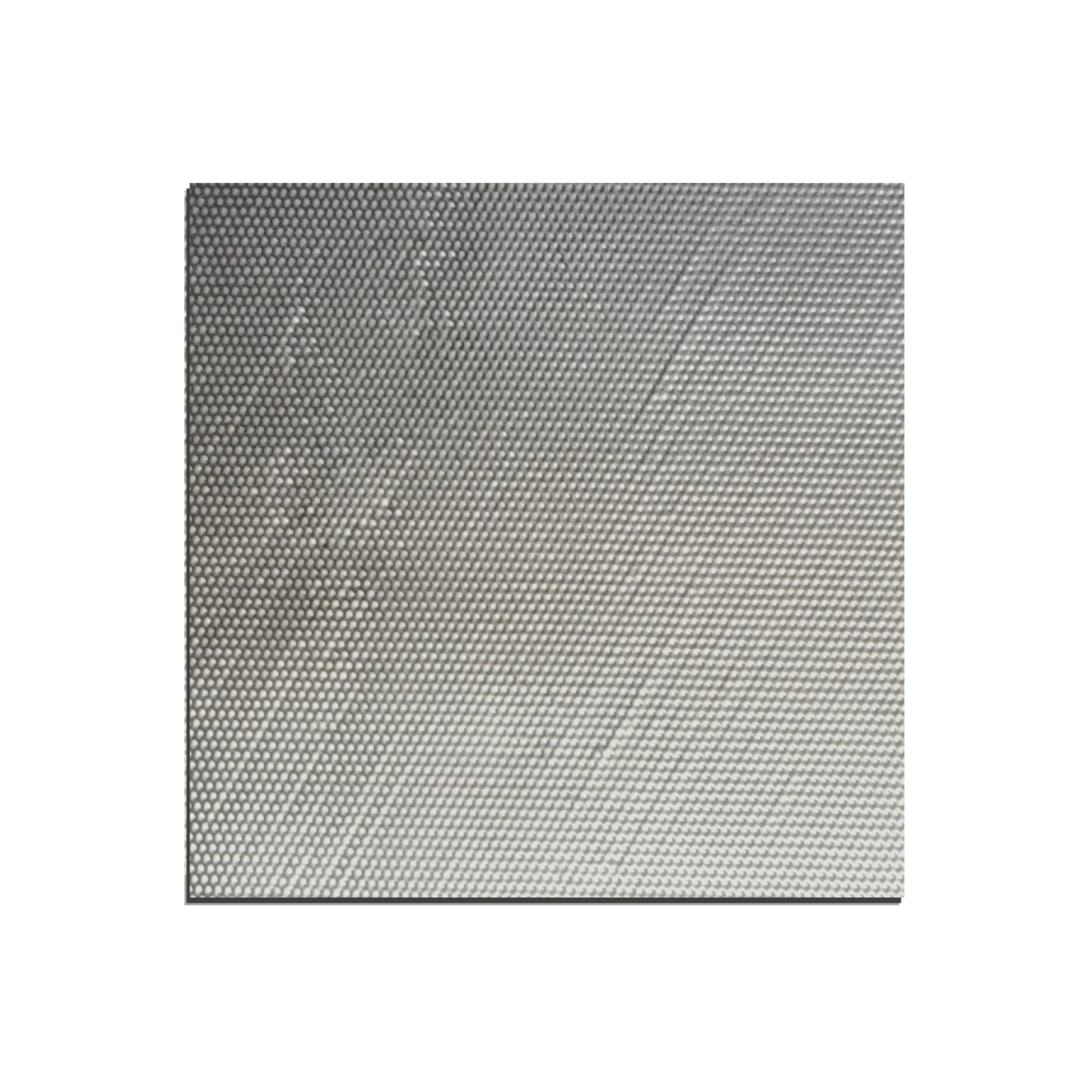

DEI 11002 Form-A-Barrier 12" X 12" 011002

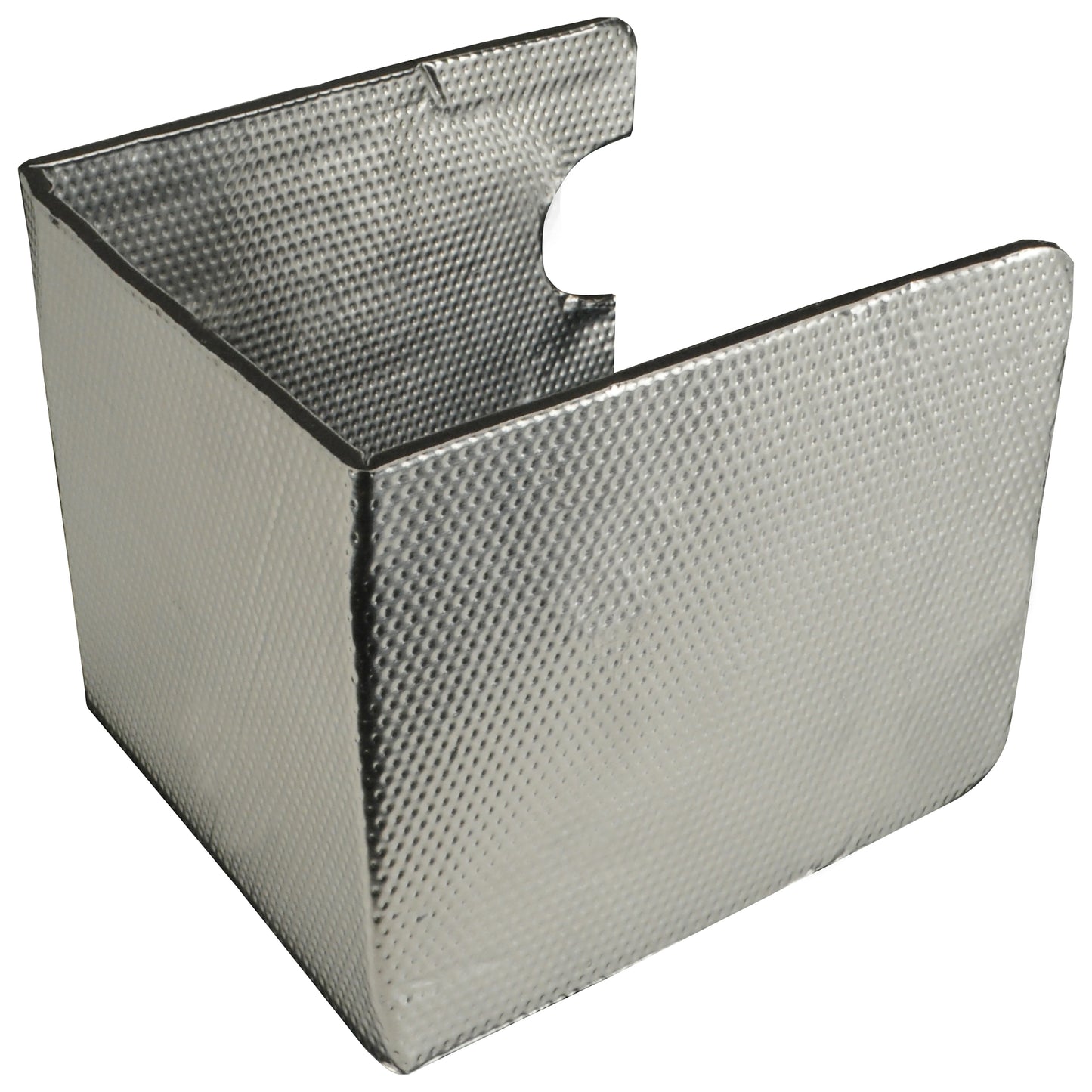

Form-A-Barrier solves the problem of needing a light weight, formable shield to protect components from heat. Light weight, formable, rigid shield provides excellent thermal protection up to 1300F with minimal gap of 1 inch to heat source. Can be formed or bent by hand to conform to odd shapes. Mechanically fasten with pins, screws or bolts. Resistant to most automotive chemicals. Multiple applications include firewalls, interiors, engines and other areas. Easily formable Both sides have reflective material Protection up to 1300F 12 in. x 12 in. squares, 3DO NOT apply directly to exhaust components.

• Comes as flat sheet - easily formable
• Both Sides Have Reflective Material
• Protection Up To 1300 Degrees Fahrenheit
• 12 in. x 12 in. Square
• Do Not Apply Directly To Exhaust Components.
• 3/16" thick

Attributes:

• Brand Name: Design Engineering
• GTIN: 00607078110022
• Backing: Non-Adhesive
• Color: Silver
• Direct Heat Resistance: 1300°F
• Includes: One 12 inch by 12 inch sheet of Form-A-Barrier.
• Length: 12
• Material: Aluminum
• Max Temperature Rating: 1300 Degree
• Width: 12

Extended Information:

• Country of Origin: US
• Emissions : 4
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 13 x 13 x 2 inches
• Weight: 0.7 POUNDS
