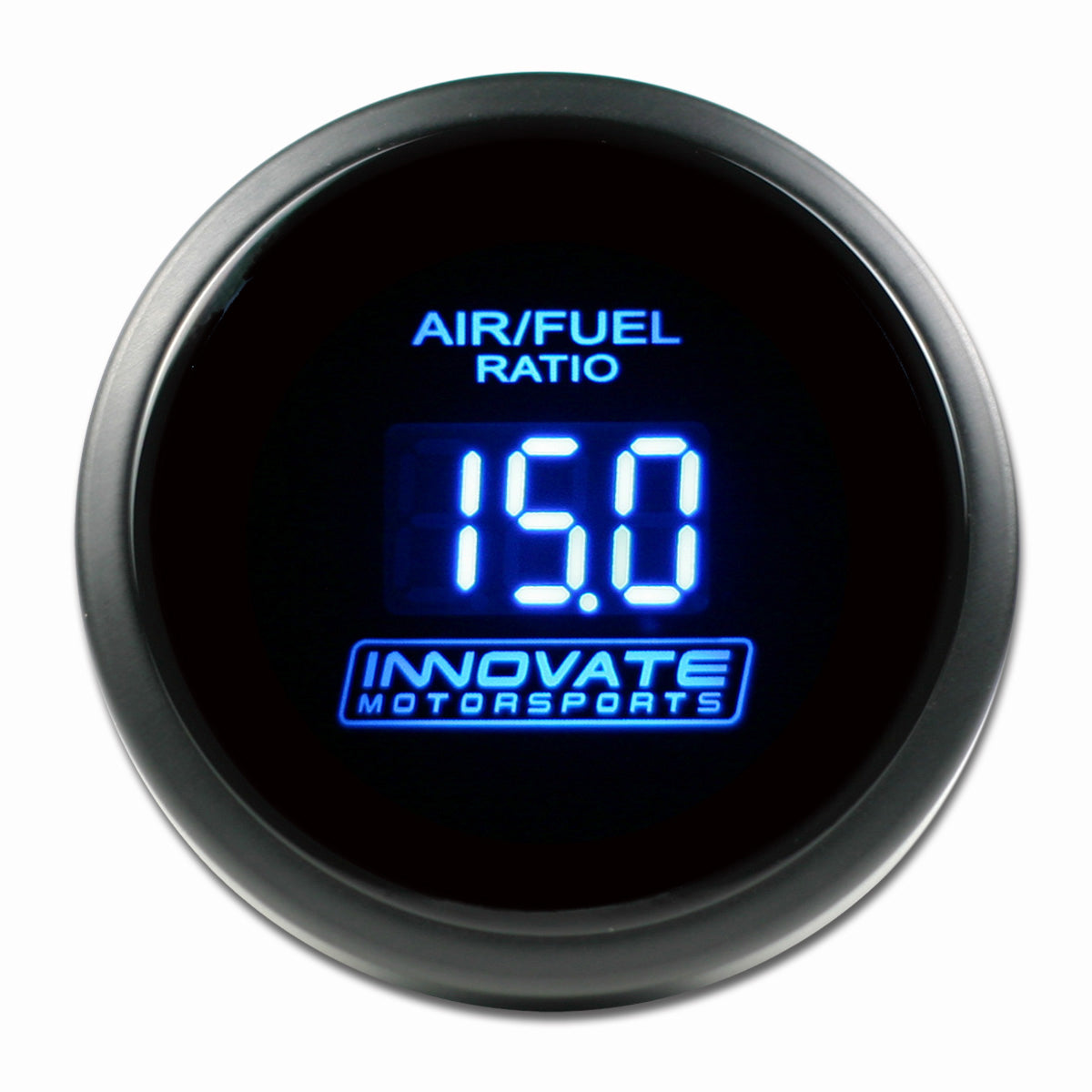

DB-Blue Gauge / LC-2 Kit

The Innovate Motorsports DB gauges are 52mm (2 1/16) air fuel gauges. Each gauge features a bright LED display (available in blue, green, or red). Each Gauge Kit includes the gauge, an LC-2 wideband controller, oxygen sensor, bung, serial cable, and the award-winning LogWorks engine-tuning software. For tuners seeking the most cost-effective way to start monitoring Air/Fuel Ratio, the DB series gauges offer an attractive option, while opening the world of true digital data acquisition and software engine analysis. For example, users can add multi-sensor interfaces, and log 5 critical parameters directly into any PC or laptop. Or they can get a PL-1 data logger for hundreds of hours of 32-channel data logging on an SD card. Best of all, the DB gauges include the powerful LogWorks software for synchronous high-speed logging of wideband data, other MTS sensors, and data from a growing list of piggyback fuel controllers and standalone or factory (OBD2) ECUs. This is the same software used by champion engine builders and racers.

• Patented DirectDigital wideband sensor control, 100% digital wideband air/fuel ratio technology!
• One additional available analog output (one connects to the gauge).
• Easy set up and wiring (instructions included).
• LC-2 incIudes Innovate serial in & out for adding additional modular tuning system (MTS) components. (Gauge itself is analog only- no serial).
• Blackout appearance when unpowered.
• Log Directly From The Lc-2S Digital Output Into Laptop W/Included Software
• Comes complete with the patented award-winning LC-2 Wideband Controller, DB Gauge, Bosch 5-wire Wideband 02 Sensor, Bung, Serial Cable, LogWorks Software (Free Download), and instructions

Attributes:

• Brand Name: Innovate Motorsports
• GTIN:
• Bezel Color: BLACK
• Bezel Style: Innovate
• Cup/Hole Size - Metric - CM: 5.2
• Cup/Hole Size - Standard - IN: 2.0625 in.
• Dial Color: BLACK
• Gauge Type: Wideband Air/Fuel Ratio (AFR)
• Included Wire Harness: 3887, 3840
• Includes Adapter/Fitting: 3839
• Includes Sensor Unit: 3888
• Lens Style: Flat, Smoked
• Lighting Color: BLUE
• Lighting Type: DIGITAL LED
• Movement: Digital
• Outer Bezel Diameter - Standard: 2.44
• Product Overall Depth: 2.4
• Product Overall Height: 2.44
• Product Overall Width: 2.44
• Product Type: Gauge Air/Fuel Ratio-Wideband
• Range: 7.4:1 - 22.4:1 AFR
• Related Item: 77020
• Size - Metric - CM: 5.2
• Size - Standard - IN: 2.0625 in.
• Upsell: 3891

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Weight: 0 POUNDS
