Cylinder Head Chevy 2011-2015 LML Duramax Diesel V8 6.6L Single Complete

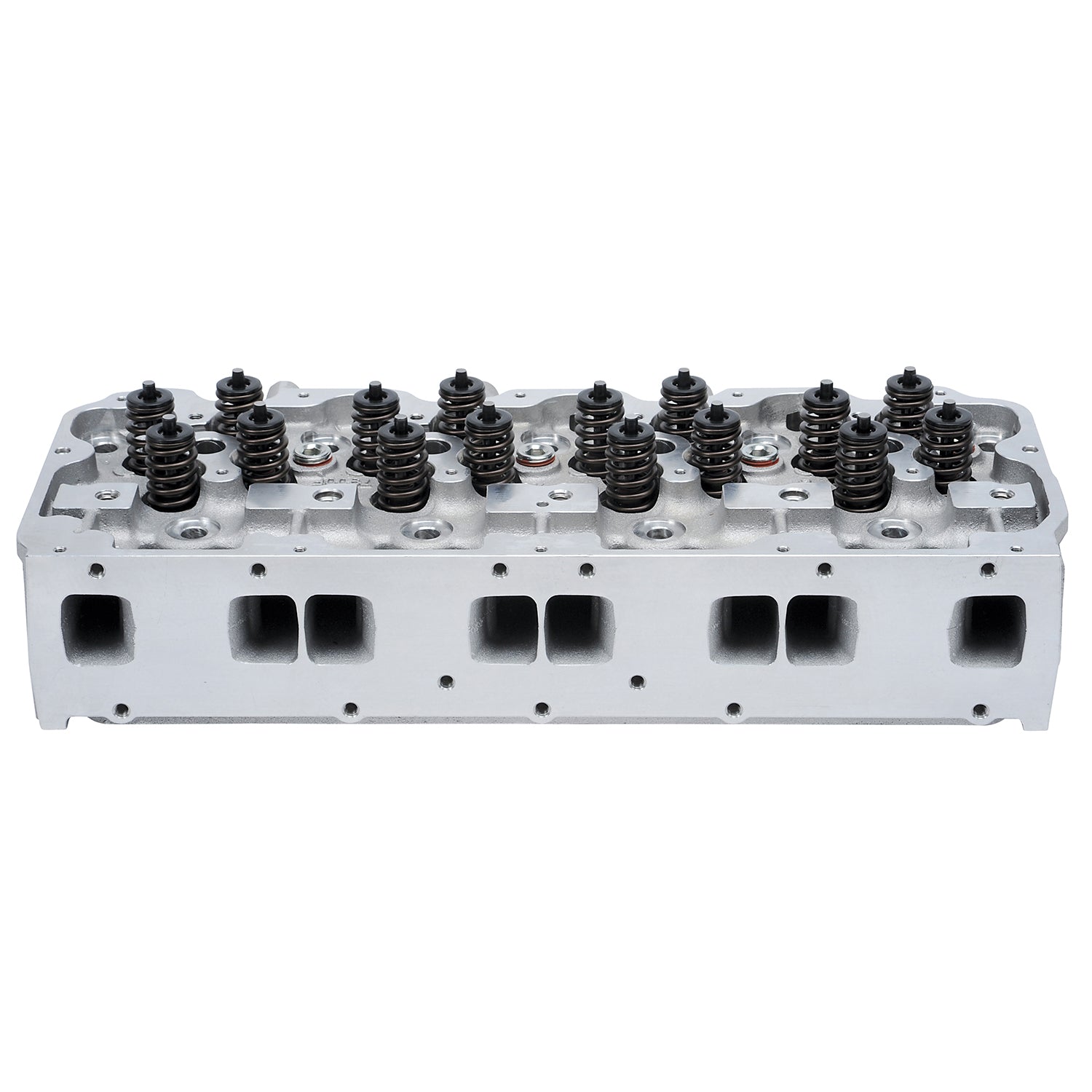

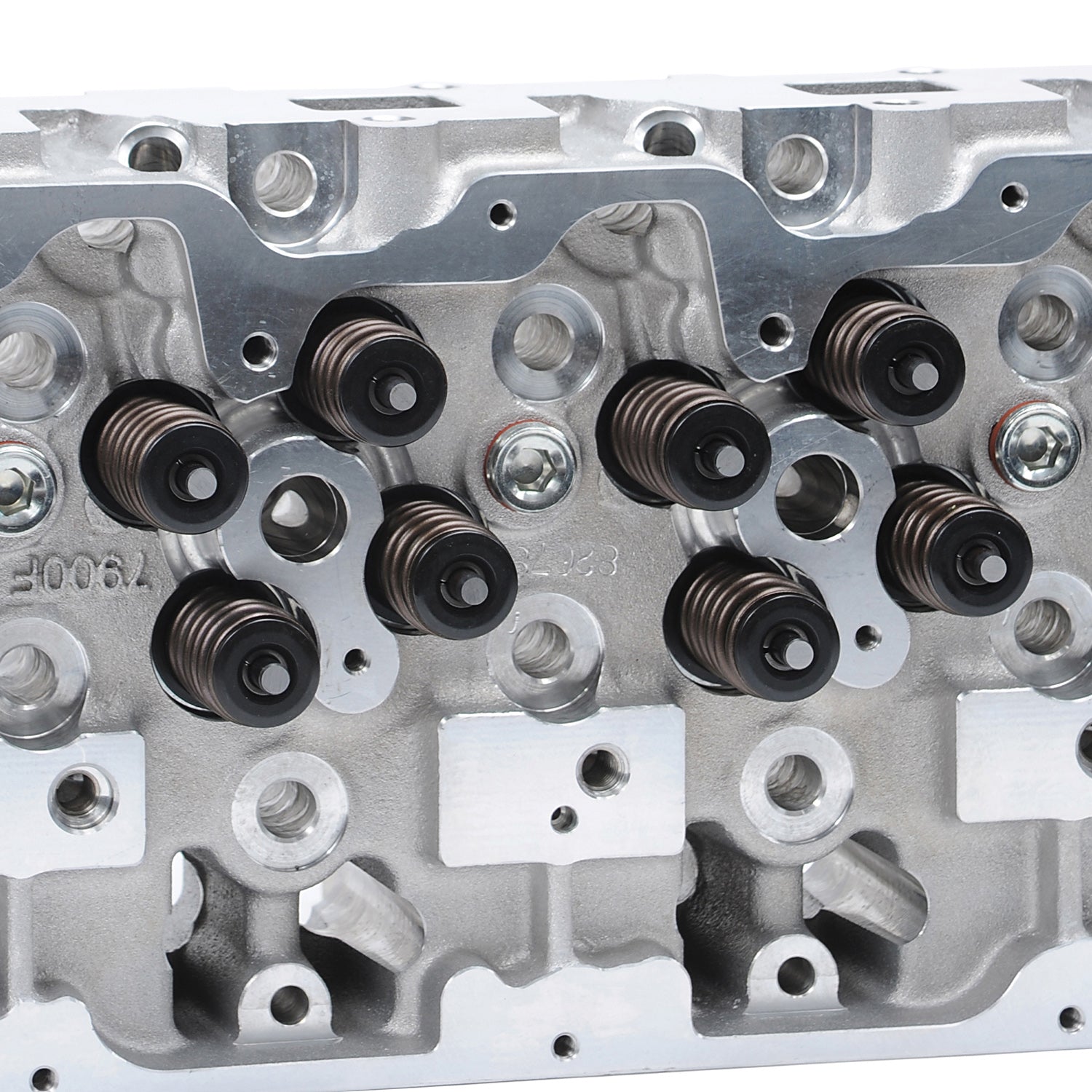

New Edelbrock Cylinder Head for GM 6.6L Duramax Diesel Engines. Edelbrock proudly introduces its first-ever high-performance cylinder head developed especially for the diesel engine market! The all-new Edelbrock Diesel Cylinder Head #79119 for 2011-2016 (LML) GM 6.6L Duramax V8 engines is a direct bolt-on replacement for any street or off-road application where higher levels of performance and durability are desired. This aluminum head comes complete and ready to run straight out of the box and are designed to fit all variations of the Duramax engine that was offered in the popular Silverado and Sierra pickup truck as well as Chevrolet and GMC 2500/3500 HD trucks between 2001 and 2016. Edelbrock's new Diesel Cylinder Head is compatible with all stock Duramax valvetrain components as well as valve covers, water crossover, injectors and plugs. Each A356 aluminum cylinder head casting is heat- and pressure-treated to reduce porosity while also increasing both strength and fatigue properties. Intake and exhaust runners are designed to optimize flow and swirl, but engine builders and head porters will also appreciate the extra deck and port wall material for custom porting and deck strength. Best of all, the new Edelbrock Diesel Head is CARB legal, making them the perfect choice for a street performance upgrade to your Chevy or GMC Duramax Diesel engine. Order Edelbrock part number 79119 for 2011-2016 LML Duramax V8 engines. Vehicle Specific

• Chevrolet:Duramax (LML):403 (6.6L)

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347791194
• 9040: D-215-102
• CNC Ported: No
• Camshaft Type: Hydraulic Roller
• Construction Type: Complete
• Deck Thickness: 0.629921
• EGR Port: No
• Exhaust Port Location: Standard
• Exhaust Runner Volume: 117
• Exhaust Valve Diameter: 31
• Family: Duramax
• Grade Type: Performance
• Guide Material: Manganese Bronze
• Guide Plates Included: No
• Head Casting Number: N/A
• Horsepower: 400+
• Intake Runner Volume: 230
• Intake Valve Diameter: 33
• Material: Aluminum
• Quantity: Sold Individually
• RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• Retainer Included: Yes
• Seat Angle: Exhaust 45 deg/Intake 45
• Seat Material: Ductile Iron
• Series: Duramax
• Specialty: Hot Isostatic Pressing (HIP) Processing and Heat-Treated To T7 Specification
• Valve Angle: 0
• Valve Included: Yes
• Valve Spring Diameter: 27
• Valve Spring Maximum Lift: 0.600
• Valve Springs Included: Yes
• Valve Stem Diameter: 0.275591

Extended Information:

• Country of Origin: US
• Emissions : CARB Eligible

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 20.3346 x 8.4252 x 5.0078 inches
• Weight: 39.1 POUNDS
