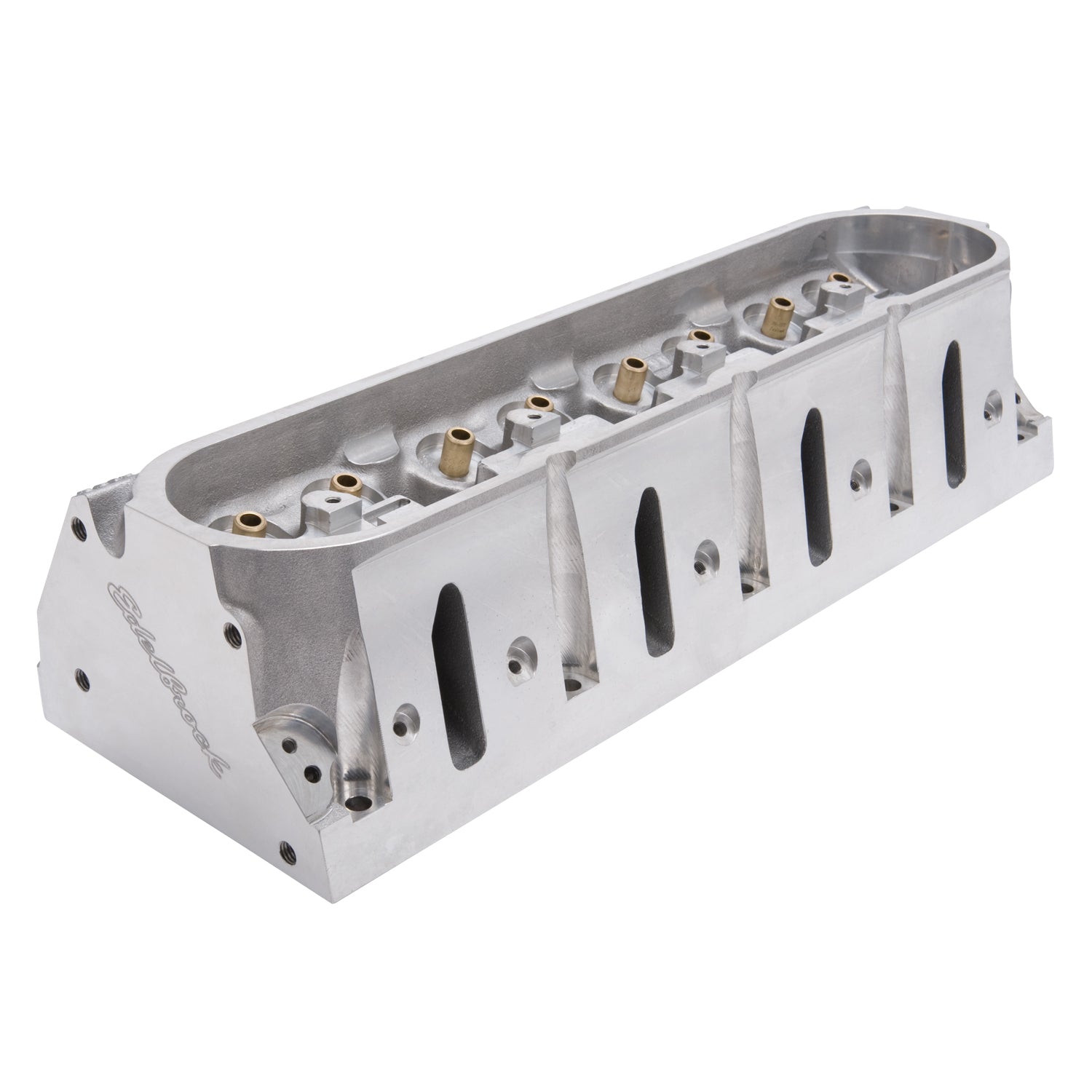

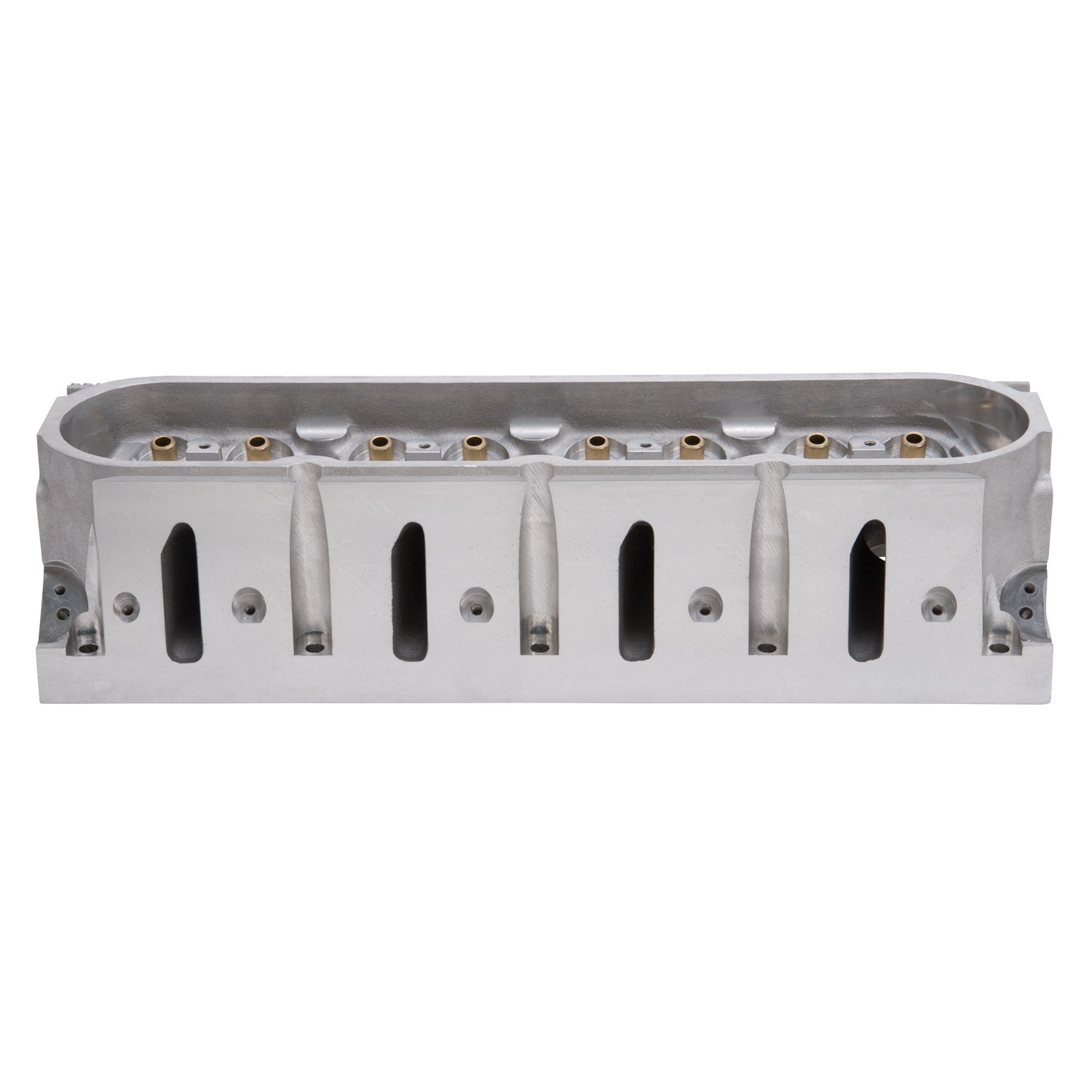

Performer LT1 Cylinder Head (54cc)

• Chevrolet:Small-Block Gen III LM7:325 (5.3L)
• Chevrolet:Small-Block Gen III LS1:346 (5.7L)
• Chevrolet:Small-Block Gen III LS2:364 (6.0L)
• Chevrolet:Small-Block Gen IV LC9:325 (5.3L)
• Chevrolet:Small-Block Gen IV LH8:325 (5.3L)
• Chevrolet:Small-Block Gen IV LMF:325 (5.3L)
• Chevrolet:Small-Block Gen IV LMG:325 (5.3L)
• Chevrolet:Small-Block Gen IV LY5:325 (5.3L)
• Chevrolet:Small-Block Corvette Gen IV LS2:364 (6.0L)

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347994366
• CNC Ported: No
• Chamber Size (A): 38
• Construction Type: Pro-Port Raw
• Deck Thickness: 0.625
• EGR Port: No
• Exhaust Port Entry: 1.41 in x 1.02
• Exhaust Valve Diameter: (Suggested) 1.64
• Exhaust Valve Pierce Points (X Y)(C): 1.090 in, 0.010
• Family: E-CNC
• Grade Type: Performance
• Guide Material: Manganese Bronze
• Guide Plates Included: No
• Head Casting Number: N/A
• Intake Port Entry: 0.82 in x 2.80
• Intake Valve Diameter: (Suggested) 2.08
• Intake Valve Pierce Points (X Y)(C): 0.820 in, 0.010
• Material: Aluminum
• Quantity: Sold Individually
• RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• Retainer Included: No
• Series: Pro-Port
• Specialty: Hot Isostatic Pressing (HIP) Processing
• Valve Angle: 15
• Valve Guides Included: Yes
• Valve Included: No
• Valve Seats Included: Yes
• Valve Spacing: 1.910
• Valve Springs Included: No

Extended Information:

• Country of Origin: United States
• Emissions : Electronically Announced

Packing Information:

• Quantity of Each:
• Package UOM:
• Dimension: 26.25 x 11 x 8.5 inches
• Weight: 31.3 POUNDS
