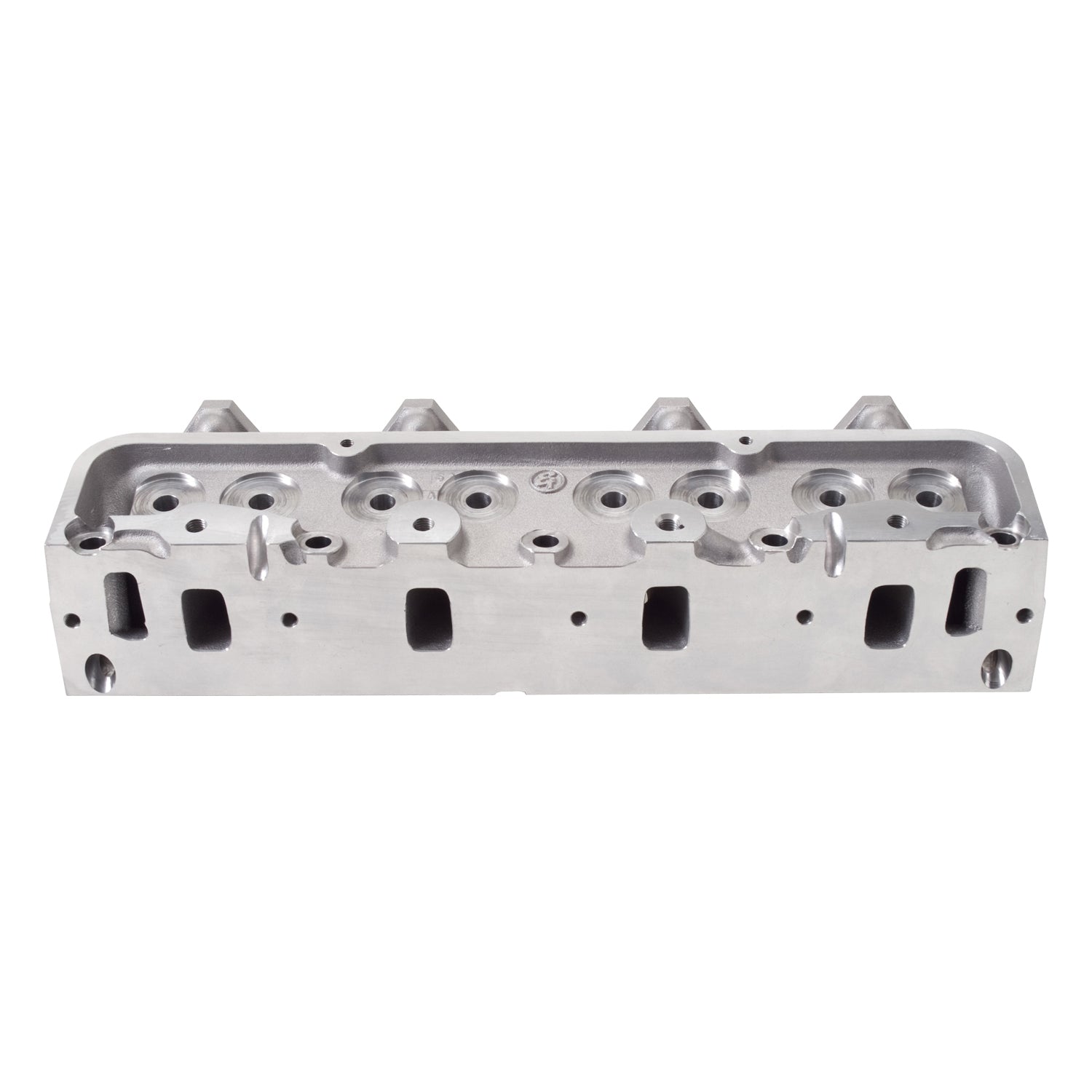

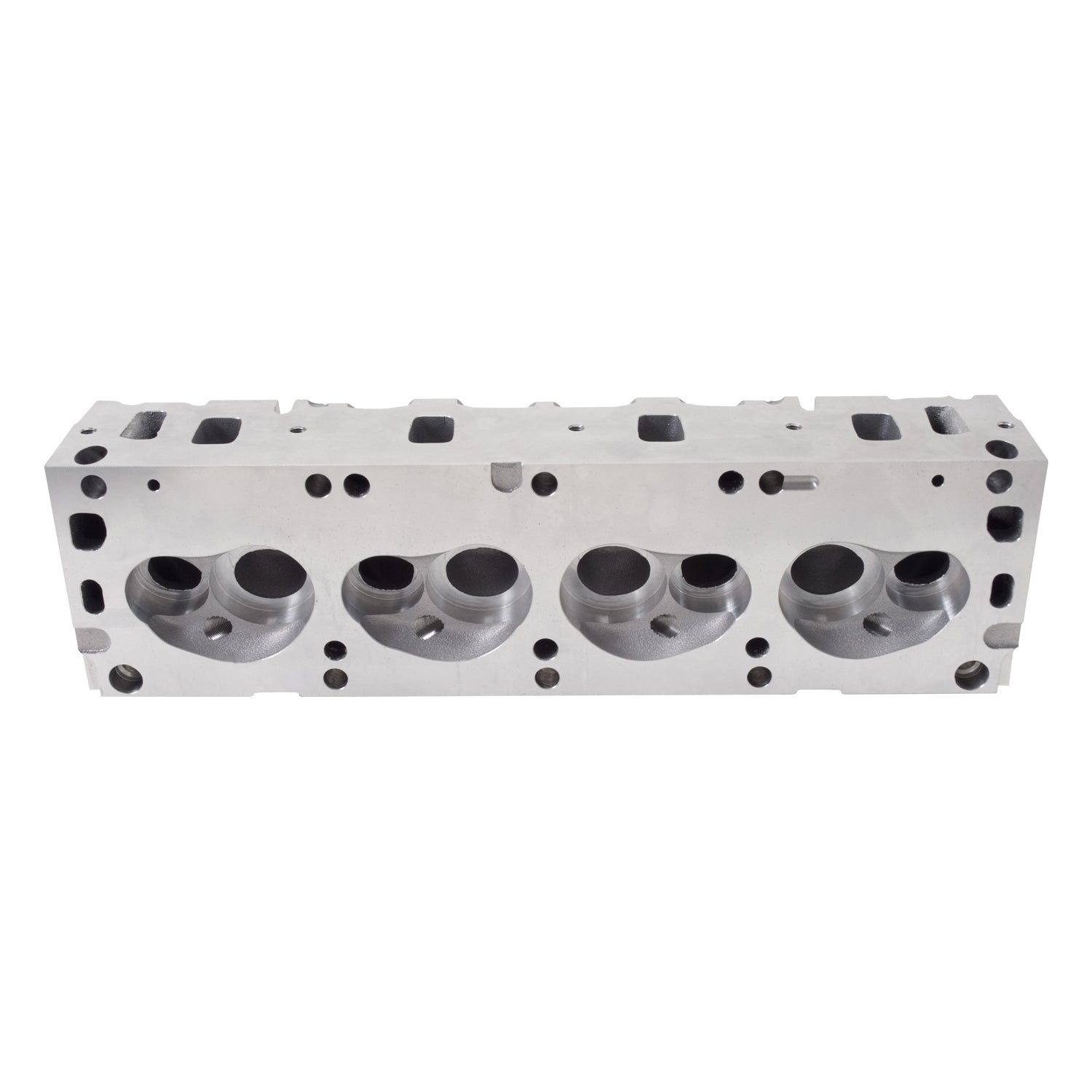

NHRA Ford FE Cylinder Head Bare

The Edelbrock 61857 Ford FE NHRA Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like the other Edelbrock Cylinder head, The Pro-Port cylinder head is also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: This head can not be used without professional head preparation. Pro-Port RAW Features Include: - Unported versions of Edelbrock race-winning Victor Series CNC head for the professional cylinder head porter and engine builder - The Pro-Port cylinder head is cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting - The only head designed specifically to accommodate almost any CNC port shape, size or location - Offers enough wall thickness for CNC machining to various port dimensions - In most cases seats and manganese-bronze valve guides are included - Some of the Edelbrock Pro-Port Raw Head Feature Our Special Hot Isostatic Pressing or HIP Process. Vehicle Specific

• Ford:FE:332 (5.4L)/352 (5.8L)/360 (5.9L)/390 (6.4L)/406 (6.6L)/410 (6.7L)/427 (7.0L)/428 (7.0L)

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347618576
• Assembled: No
• CNC Ported: No
• Combustion Chamber Volume: Possible 45
• Construction Type: Pro-Port Raw
• Cylinder Head Gasket Included: No
• Deck Height: 10.17
• Deck Thickness: 0.625
• EGR Port: No
• Exhaust Port Entry: 1.55 in x 1.00
• Exhaust Valve Diameter: (Suggested) 1.66
• Exhaust Valve Pierce Points (X Y)(C): 1.160 in, 0.220
• Family: Performer RPM
• Grade Type: Performance
• Guide Material: Manganese Bronze
• Guide Plates Included: No
• Head Casting Number: 27-6185
• Intake Port Entry: 1.49 in x 0.94
• Intake Valve Diameter: (Suggested) 2.09
• Intake Valve Pierce Points (X Y)(C): 0.885 in, 0.220
• Material: Aluminum
• Mounting Hardware Included: No
• Quantity: Sold Individually
• RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• Retainer Included: No
• Rocker Arm Studs/Bolts Included: No
• Rocker Arms Included: No
• Seat Angle: Exhaust 45 deg/Intake 60
• Seat Material: Ductile Iron
• Series: Pro-Port
• Specialty: Hot Isostatic Pressing (HIP) Processing
• Valve Angle: 13
• Valve Cover Gasket Included: No
• Valve Guides Included: Yes
• Valve Locks Included: No
• Valve Seals Included: No
• Valve Seats Included: Yes
• Valve Spacing: 2.045
• Valve Spring Retainers Included: No
• Valve Springs Included: No
• Valves Included: No

Extended Information:

• Country of Origin: US
• Emissions : 3

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 26 x 11 x 8.75 inches
• Weight: 29.45 POUNDS
