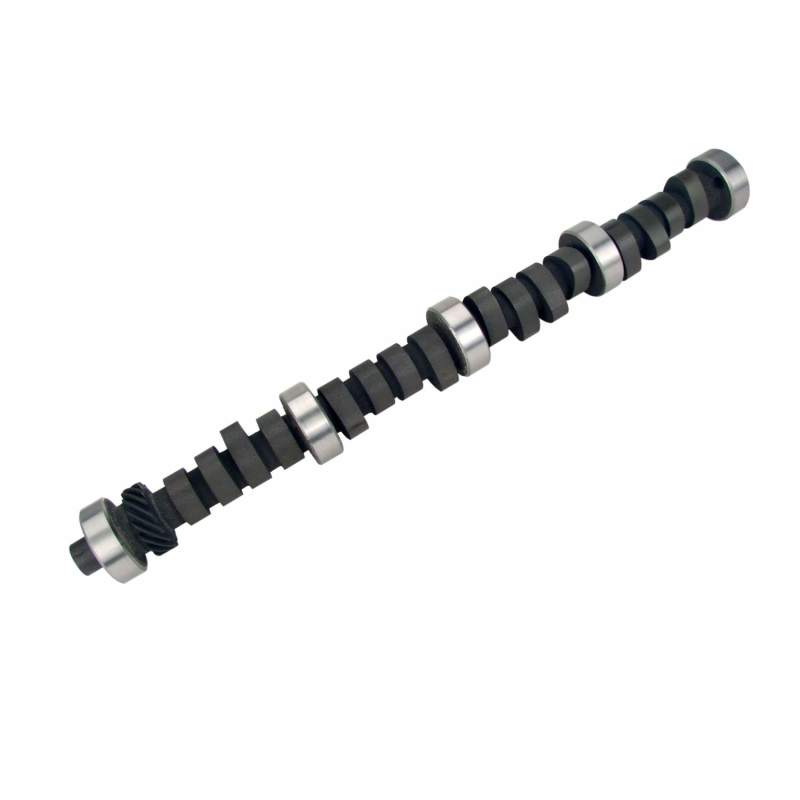

Comp Cams Camshaft, FS REPLACEMENT

• Lifter Type: Solid Lifter
• Engine Family: Ford 289-302 C.I. 8 cyl. 1963-1995
• Description: Solid-Factory I.D. # C30Z-6250-C for, 289 cu.in. 1965-68, Factory 271 H.P.
• Cam Family: Factory Muscle COMP Cams® has taken the factory muscle cam specs and reproduced them to our strict tolerances.

Specification:

• RPM Range: 2200 to 6200
• Valve Timing: 0.015
• Lobe Separation: 114°
• Intake Centerline: 114°
• Valve Lash: 0.022 Intake/ 0.022 Exhaust
• Duration: 283 Intake/ 261 Exhaust
• Duration @ .050" Lift: 228 Intake/ 227 Exhaust
• Valve Lift: 0.478 Intake/ 0.475 Exhaust
• Lobe Lift: 0.299 Intake/ 0.297 Exhaust
