Coil #22791 Is A Direct Performance Replacement Coil Pack For Ford

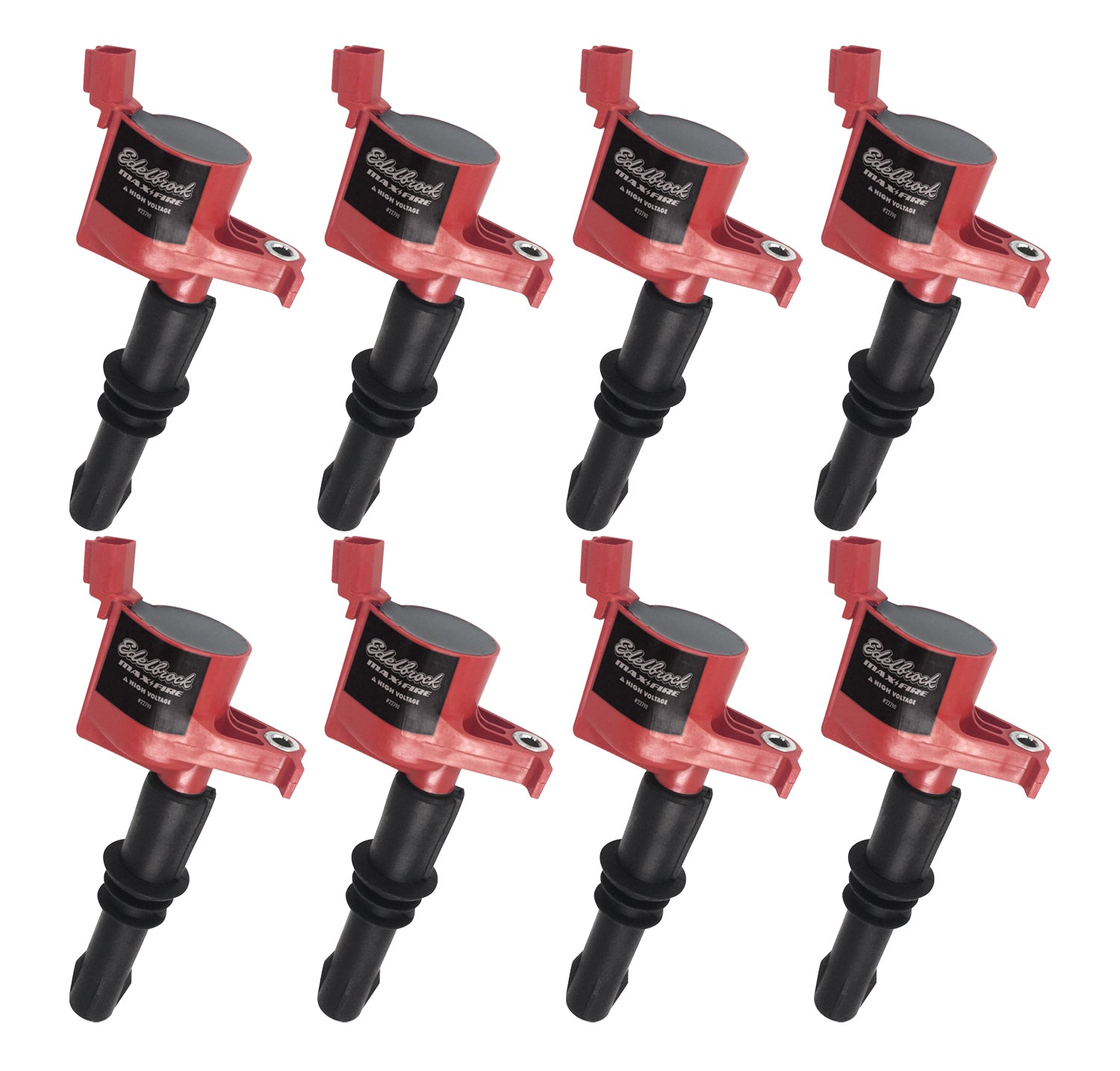

Edelbrock Coil Pack #22791 is a set of eight coil-on-plug coils designed as direct performance replacements for the OEM coils on 2008-18 Ford 4.6L-5.4L V8 engines. This coil pack can also be used to replace the OEM coils on 6.8L Triton V10 engines however you must add two additional single coils (#22790 x 2) to replace all 10 of the 6.8L coils. Each #22790 coil and #22791 coil pack feature advanced technology with heavy-duty primary and secondary windings inside of a corrosion-resistant housing. The enhanced windings in these coils offer higher energy and voltage output for greater spark and can help to provide quicker starts with improved idle quality. Coil housings are resistant to heat, shock, vibration and corrosion. Vehicle Specific

• Ford 4.6L-5.4L V8 and 6.8L V10 2008-18

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347227914
• Coil Shape: Round
• Coil Type: Coil Pack
• Coil Wire Included: No
• Connector Gender: Female
• Height: (Long Brown Boot) 4.5
• Length: (Long Brown Boot) 4.5
• Mount Type: Plug
• Mounting Bracket Included: No
• Oil Filled: No
• Primary Resistance: 0.600
• Quantity: Set of 8
• RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
• Recommended Use: For Models With 3 Valves and Use 12mm Spark Plugs
• Requires External Resistor: No
• Secondary Resistance: 6.01K
• Terminal Gender: Female
• Terminal Quantity: 1
• Terminal Type: Blade Pin
• Voltage: Maximum 21000

Extended Information:

• Country of Origin: CN
• Emissions : EPA Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: ST
• Dimension: 5.2 x 5.3 x 7.6 inches
• Weight: 3.45 POUNDS
