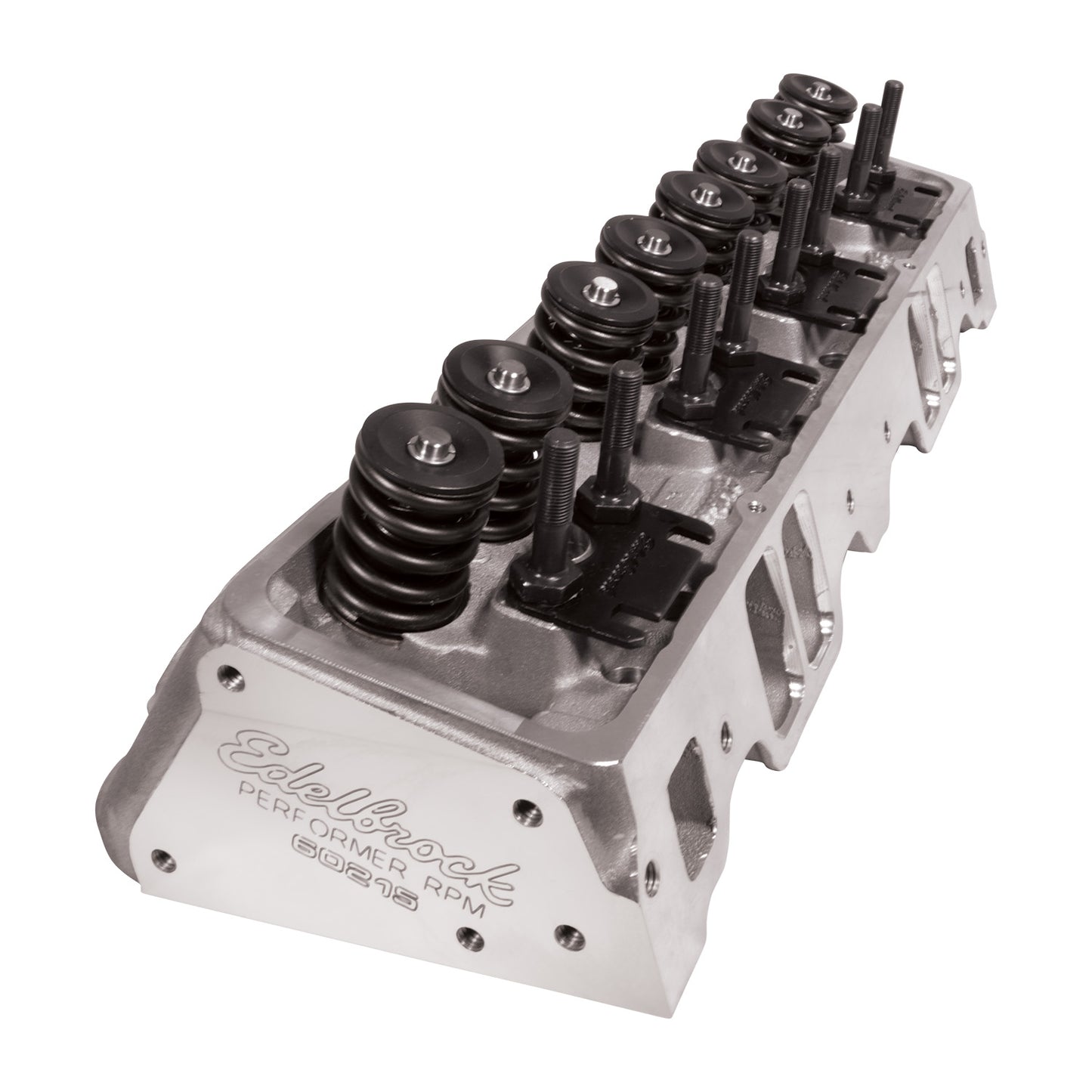

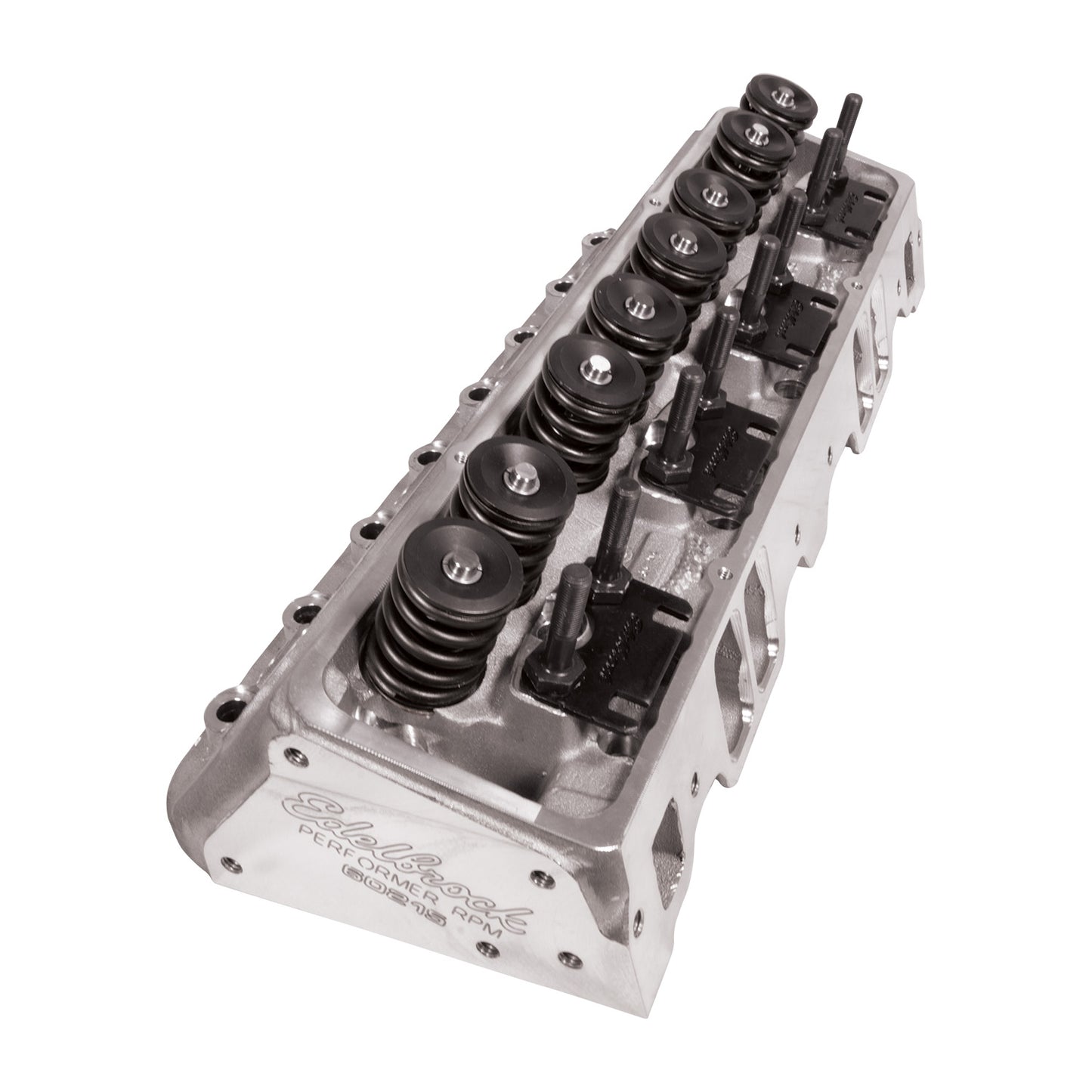

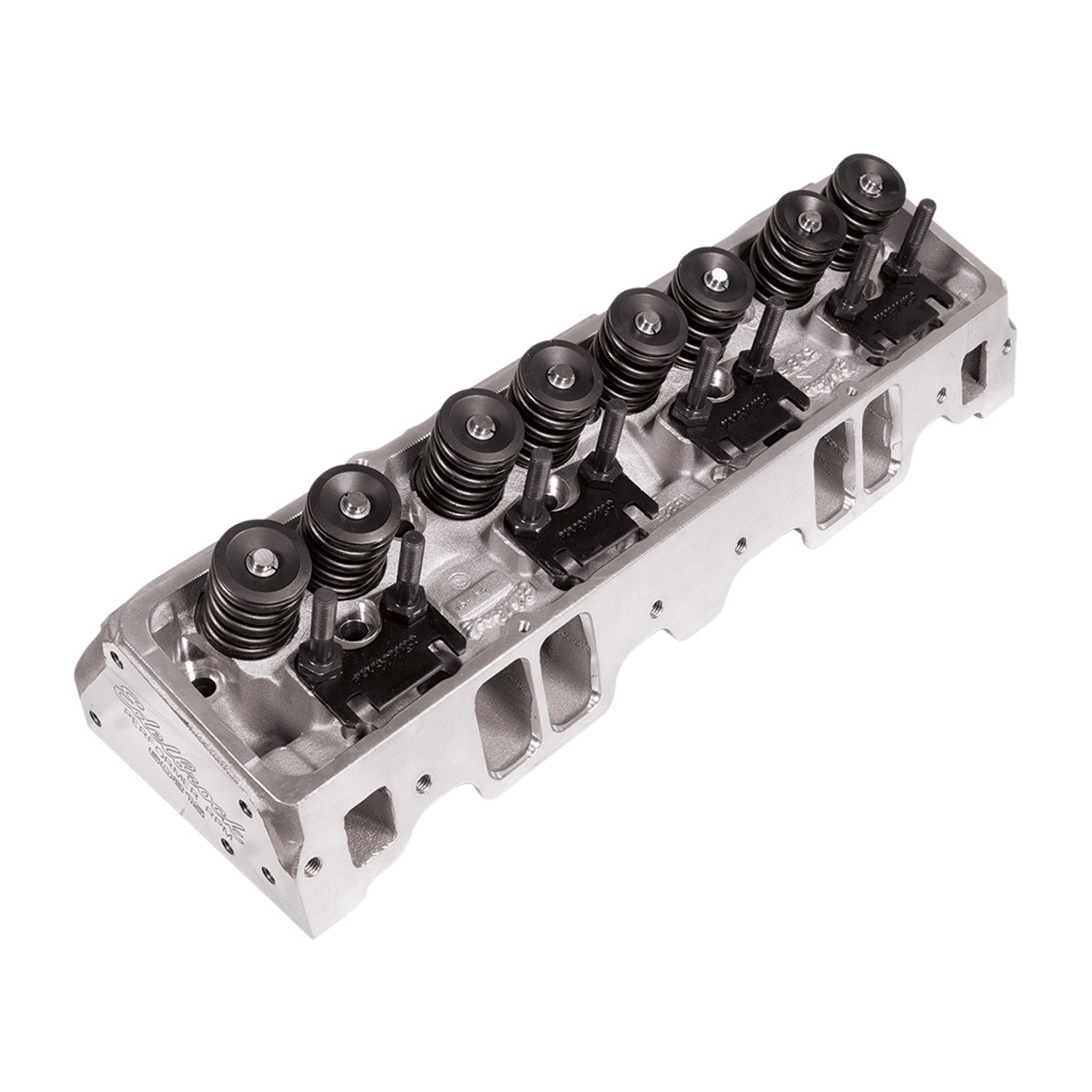

Chevrolet Small Block 210cc Performer RPM Roller Cam

Engineered specifically for Gen I Small-Block Chevrolet engines equipped with hydraulic roller camshafts, the Performer RPM 210 cc Cylinder Heads are designed as the ideal next-step upgrade from Edelbrock’s Performer series. These premium cylinder heads deliver increased airflow, superior quality, and exceptional performance for street and strip applications. Manufactured in Edelbrock’s ISO-certified facility in San Jacinto, California, each head is machined to exacting tolerances for optimal performance and durability. With larger 210 cc intake ports than comparable Performer RPM heads, this new design is intended for high-performance builds that require greater airflow and horsepower, while maintaining full compatibility with off-the-shelf components. These heads are ideal for 327 c.i. or larger Small-Block Chevrolet engines built between 1955 and 1986 that are not required to meet emission standards. Each Performer RPM 210 cc cylinder head comes fully assembled with premium valvetrain components, including stainless steel one-piece swirl-polished intake and exhaust valves with undercut stems for improved flow, 2-ring positive oil control seals, 3/8" rocker arm studs with 5/16" guide plates, hardened steel valve spring locators, and Edelbrock Sure-Seat valve springs, retainers, and keepers. Edelbrock’s patented Clean-Cast™ Technology sets these heads apart by eliminating internal casting flaws and producing smoother internal surfaces, thereby significantly improving airflow and coolant circulation. The result is more power and better cooling efficiency right out of the box. Engineered for serious performance applications, the Performer RPM 210 cc Cylinder Heads offer exceptional value and power gains for builders and enthusiasts working with Small Block Chevrolet platforms.

• 210cc Intake Port Volume for More Air Flow
• OEM Exhaust Port Location to Maintain Popular Exhaust Header and Manifold Compatibility
• Can Support 400-550 Horsepower

Vehicle Specific

• They are appropriate for any 327 ci or larger small block Chevrolet engine built from 1955 to 1986 that does not need to meet emission requirements.
• They can also be used on 1987 and later engines, provided that the intake manifold and valve covers are exchanged for those using the earlier bolt patterns.

Attributes:

• Brand Name: Edelbrock
• GTIN: 00085347899661
• Assembled: Yes
• CNC Machined Exhaust Port: No
• CNC Machined Intake Port: No
• CNC-Machined Combustion Chamber: No
• CNC-Machined Exhaust Runner: No
• CNC-Machined Intake Runner: No
• Combustion Chamber Volume: 64
• Cross sell / Upsell Part Numbers: 88110 - Water Pump, 4262 - Valve Covers, 4263 - Valve Covers, 85301-16 - Lifters, 17001-16 - Rocker Arms, 818-16 - Lifters, 1605-16 - Lifters, 2100 - Timing Set
• Cylinder Head Style: Assembled
• Exhaust Port Location: OEM
• Exhaust Port Shape: Square
• Exhaust Runner Volume: 75
• Exhaust Valve Angle: 23
• Exhaust Valve Diameter: 1.6
• Exhaust Valve Job Diameter: 1.6
• Exhaust Valve Stem Diameter: 0.3438
• Guide Plates Included: Yes
• Guidplate Pushrod Size: 5/16
• Intake Port Location: OEM
• Intake Port Shape: Rectangle
• Intake Runner Volume: 210
• Intake Valve Angle: 23
• Intake Valve Diameter: 2.08
• Intake Valve Job Diameter: 2.08
• Intake Valve Stem Diameter: 0.3438
• Material: Aluminum
• Quantity: 1
• Related Products: 7101 - Performer RPM Small Block Chevy Intake Manifold, 7501 - Performer RPM Small Block Chevy AIR-Gap Intake Manifold, 1076 - Edelbrock high quality RTV silicone 3 oz OE silicone gaskets, 7549 - Valve Cover Gasket Set for Chevrolet, 7310 - Cylinder Head Gasket Set for Chevrolet, 7201 - Intake Manifold Gaskets
• Required Products: 85502 - Head Bolt Kit; Requires 85502 head bolts. Can't be used with head studs. Equipped with valve springs for mechanical flat tappet and hydraulic roller camshaft applications. Champion RC12YC or equivalent 14mm x 3/4 in. reach spark plugs with flat gasket seat. Hardened pushrods required.
• Retainer Diameter: 1.55
• Retainer Lock Style: 7
• Retainer Material: Steel
• Rocker Arm Studs/Bolts Included: Yes
• Spark Plug Style: Straight
• Special Notes: Requires 85502 head bolts. Can't be used with head studs. Equipped with valve springs for mechanical flat tappet and hydraulic roller camshaft applications. Champion RC12YC or equivalent 14mm x 3/4 in. reach spark plugs with flat gasket seat. Hardened pushrods required.
• Steam Holes Drilled: No
• Valve Cover Mounting Style: Perimeter Bolt
• Valve Guide Diameter: 0.5
• Valve Guide I.D: 11/32
• Valve Guide Material: Manganese Bronze
• Valve Lock Material: Steel
• Valve Lock Style: 7 degree
• Valve Locks Included: Yes
• Valve Spring Diameter: 1.55
• Valve Spring Maximum Lift: .65
• Valve Spring Type: Dual
• Valve Springs Included: Yes

Extended Information:

• Country of Origin: United States
• Emissions : Racing or Pre-Emissions Use Only

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 22.2 x 10.3 x 7.2 inches
• Weight: 30.75 POUNDS
