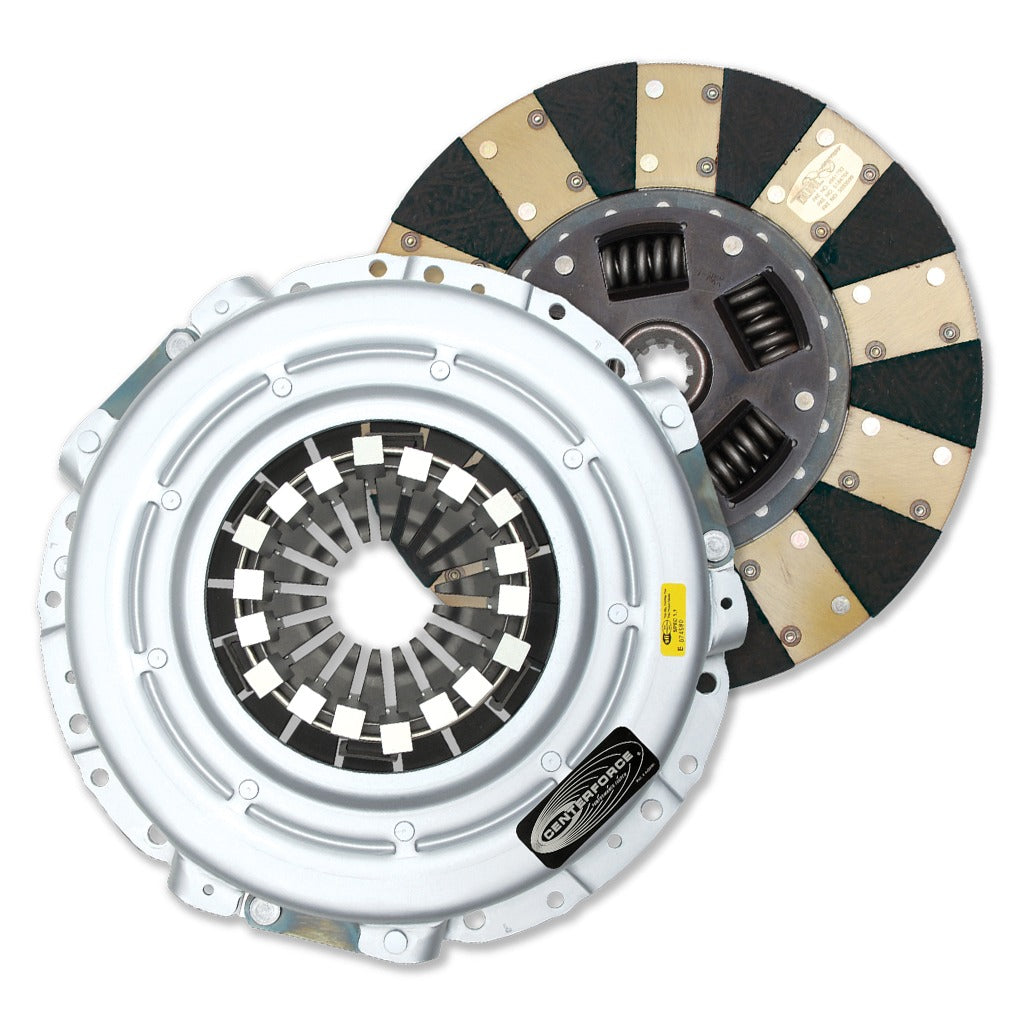

Centerforce Light Metal Light Weight Clutch Pressure Plate And Disc Set 673 Ft/lbs Capacity 10.4in Dia. 26-Spline Fits - Cars And Trucks 6/8 Cyl

The Centerforce(R) LMC Clutch Series is a specifically designed low inertia performance clutch that dramatically reduces engine rotating mass. These lightweight, SFI approved competition clutches are intended with most road racing and circle track applications in mind. Centerforce machines these special pressure plates from high-strength aircraft-grade billet aluminum and then attach a special heat-treated replaceable friction surface. The Centerforce LMC series friction disc utilizes a dual-segmented carbon composite lining for improved cooling and excellent torque capacity. Light Metal Clutch assemblies from Centerforce uses their patented 'Ball Bearing' actuated diaphragm and centrifugal weight system for maximum grip while maintaining a comfortable and controllable clutch pedal. When used in conjunction with Centerforce's aluminum flywheels, LMC Series brings the term 'Lightweight' to an unparalleled level!

• 10.4" Diameter
• 264.2mm Diameter
• 1-1/8" x 26 Spline Input Shaft
• Holds Up To 673 ft/lbs of Torque
• Sprung Hub Disc with Organic/Carbon Composite Material
• SFI Spec 1.1 Approved
• Centrifugally Assisted
• Billet Aluminum

Vehicle Specific

• - Cars and Trucks 6/8 Cylinders

Attributes:

• Brand Name: Centerforce
• GTIN: 00788442023626
• Alignment Tool Included9: Yes
• Clutch Bolt Pattern4: 2
• Clutch Disc Diameter: 264.2
• Counterweight Assist5: YES
• Disc Material3: Organic/Carbon composite
• Disc Type Sprung Solid2: Sprung
• Disc Type6: Segmented face
• Flywheel Step Type3: Flat
• Input Shaft Diameter1: 1-1/8
• Input Spline Quantity2: 26
• Made In The USA9: Assembled
• Material4: Aluminum Pressure Plate / Segmented Organic Friction
• Replaceable Friction Surface6: Y
• SFI 1.1 Approved: Y
• Torque Capacity: 673

Extended Information:

• Country of Origin: United States
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14 x 14 x 4 inches
• Weight: 19.9 POUNDS
