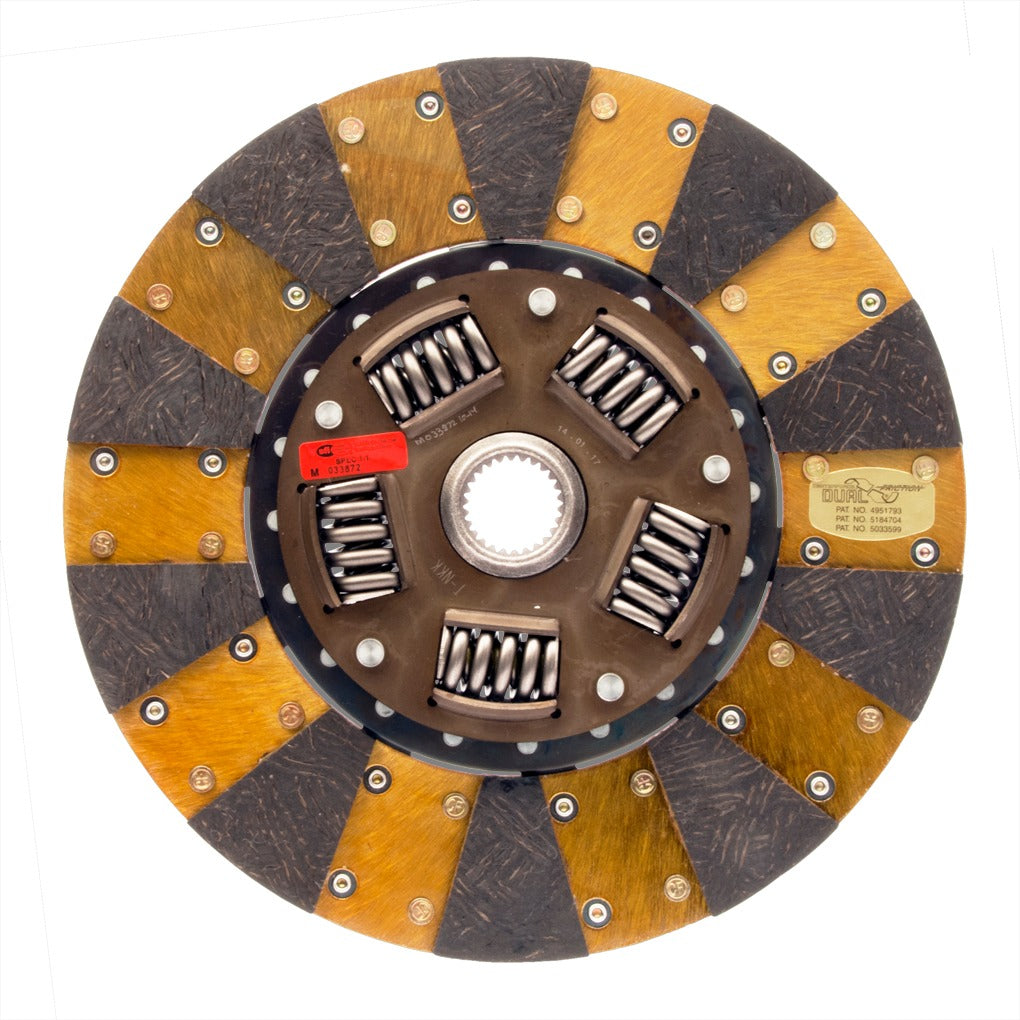

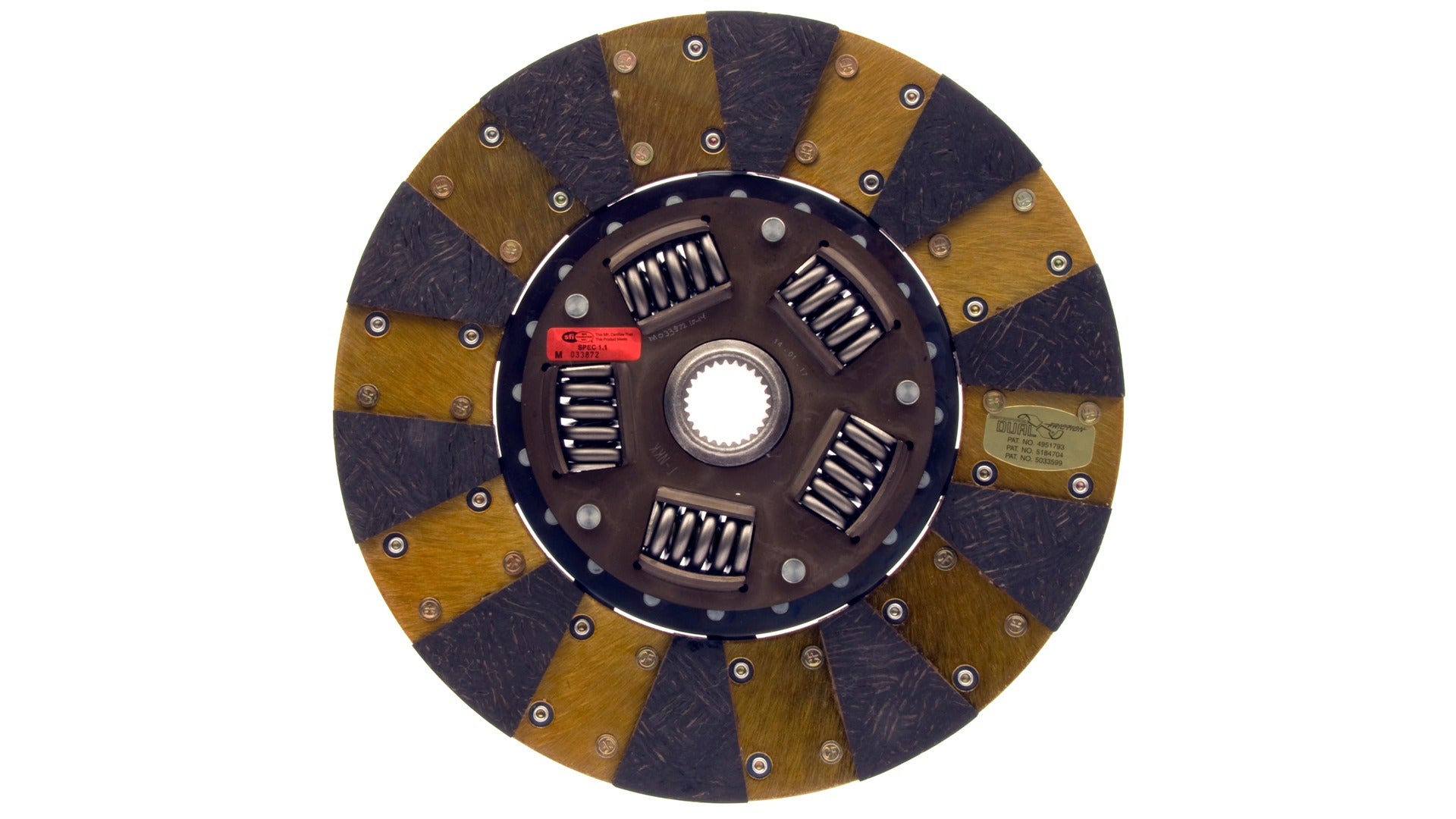

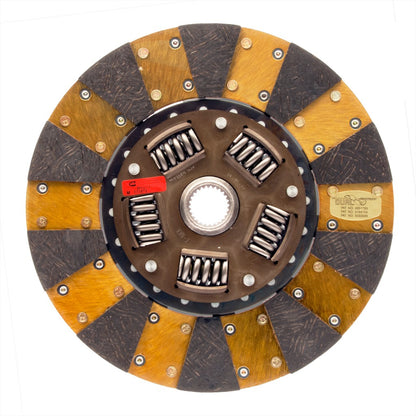

Centerforce Light Metal Light Weight Clutch Friction Disc 11in Dia. 26-Spline Fits - Cars And Trucks 8 Cyl

Centerforce brings together high-quality friction materials and patented processes to give you top-of-the-line discs. Centerforce offers discs for the Centerforce I, Centerforce II, Dual Friction, LMC, and DFX series clutches. Each disc is designed to work best with a corresponding Centerforce pressure plate. LMC Series Discs are built with carbon material in puc-style facings on both sides of the disc. These discs are made for Centerforce LMC pressure plates.

• 11.000" Diameter
• 279.4mm Diameter
• 1-1/8" x 26 Spline Input Shaft
• Weighs 4.95 lbs
• Sprung Hub Disc with Organic/Carbon Composite Material
• SFI Spec 1.1 Approved
• Billet Aluminum
• Replaceable Friction Surface
• Ball Bearing Design

Vehicle Specific

• - Cars and Trucks 8 Cylinders

Attributes:

• Brand Name: Centerforce
• GTIN: 00788442023077
• Clutch Disc Diameter: 279.4
• Disc Material1: Organic/Carbon composite
• Disc Type Sprung Solid2: Sprung
• Disc Type4: Segmented face
• Input Shaft Diameter0: 1-1/8
• Input Spline Quantity1: 26
• Inside Diameter of Friction Surface0: 164.8
• Made In The USA9: Assembled
• Material3: Segmented Organic Friction
• Out of Package Weight: 4.95
• SFI 1.1 Approved: Y

Extended Information:

• Country of Origin: TH
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14 x 14 x 2 inches
• Weight: 5.5 POUNDS
