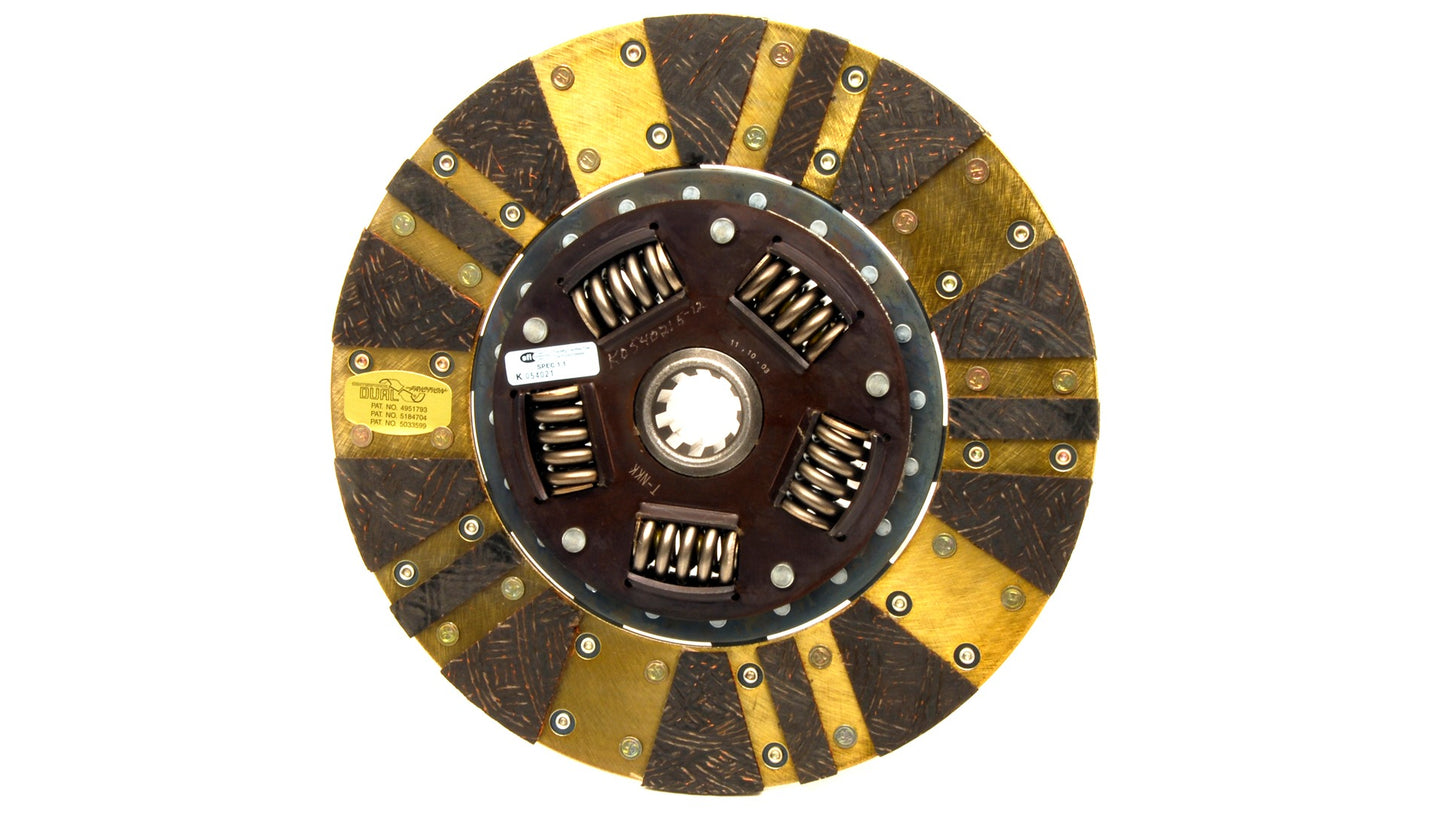

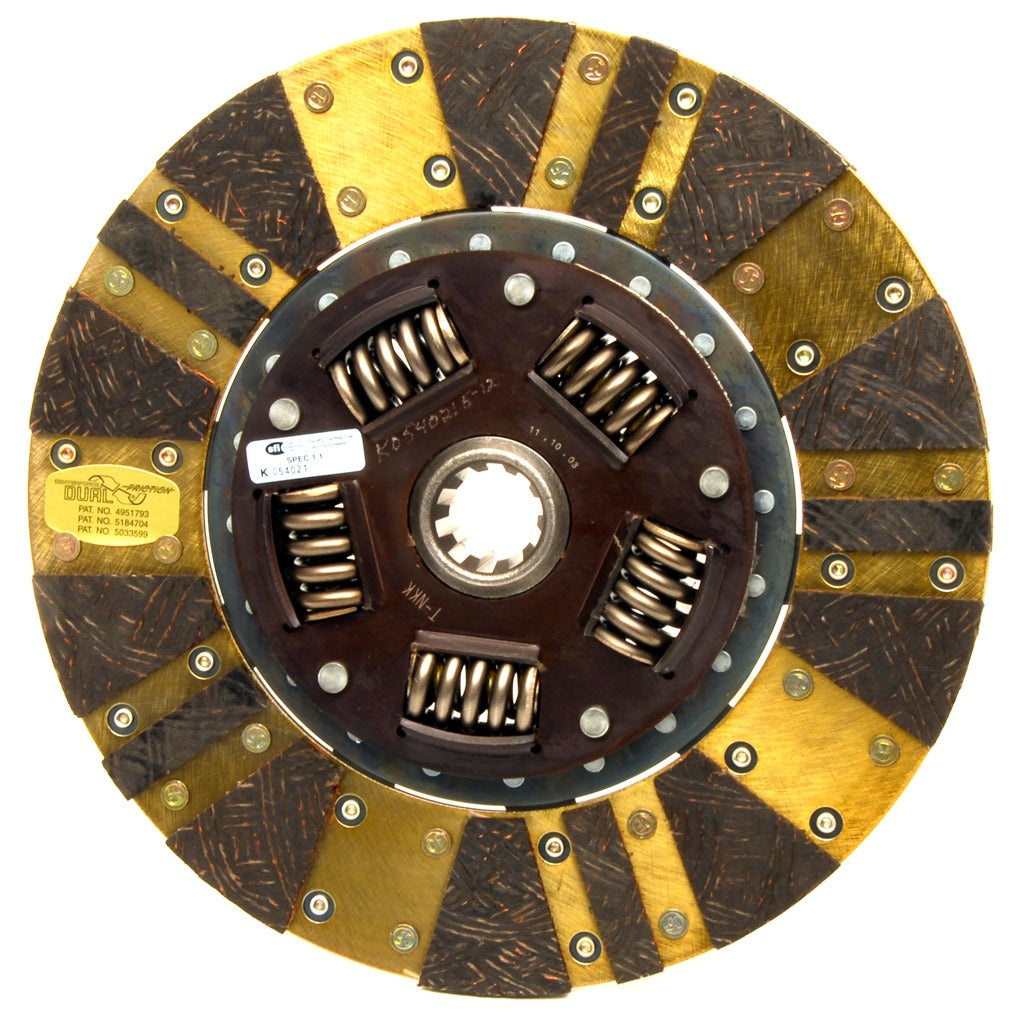

Centerforce Light Metal Light Weight Clutch Friction Disc 10.400in Dia. 10-Spline Fits Buick/Chevrolet/GMC/Oldsmobile/Pontiac Cars And Trucks 6/8 Cyl

Centerforce brings together high-quality friction materials and patented processes to give you top-of-the-line discs. Centerforce offers discs for the Centerforce I, Centerforce II, Dual Friction, LMC, and DFX series clutches. Each disc is designed to work best with a corresponding Centerforce pressure plate. LMC Series Discs are built with carbon material in puc-style facings on both sides of the disc. These discs are made for Centerforce LMC pressure plates.

• 10.400" Diameter
• 264.2mm Diameter
• 1-1/8" x 10 Spline Input Shaft
• Weighs 4.60 lbs
• Sprung Hub Disc with Organic/Carbon Composite Material
• SFI Spec 1.1 Approved
• Billet Aluminum
• Replaceable Friction Surface
• Ball Bearing Design

Vehicle Specific

• Buick/Chevrolet/GMC/Oldsmobile/Pontiac Cars and Trucks 6/8 Cylinders

Attributes:

• Brand Name: Centerforce
• GTIN: 00788442019087
• Clutch Disc Diameter: 264.2
• Disc Material1: Organic/Carbon composite
• Disc Type Sprung Solid2: Sprung
• Disc Type4: Segmented face
• Input Shaft Diameter0: 1-1/8
• Input Spline Quantity1: 10
• Inside Diameter of Friction Surface0: 164.8
• Made In The USA9: Assembled
• Material3: Segmented Organic Friction
• Out of Package Weight: 4.60
• SFI 1.1 Approved: Y

Extended Information:

• Country of Origin: TH
• Emissions : CARB Eligible
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14 x 14 x 2 inches
• Weight: 5.15 POUNDS
